UCC28600 Series

Automotive 8-pin current mode Flyback controller with green mode

Catalog

Automotive 8-pin current mode Flyback controller with green mode

Part	Supplier Device Package	Output Isolation	Duty Cycle	Control Features	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Frequency - Switching [Min]	Frequency - Switching [Max]	Package / Case	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Fault Protection	Power (Watts)	Mounting Type	Supplied Contents	Board Type	Outputs and Type	Outputs and Type	Utilized IC / Part	Regulator Topology	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Power - Output	Contents	Voltage - Output	Current - Output	Qualification	Grade
Texas Instruments UCC28600DR	8-SOIC	Isolated	99 %	Soft Start	21 V	8 V	40 kHz	130 kHz	0.154 in	8-SOIC	3.9 mm	-40 °C	105 °C	Flyback	Current Limiting Over Temperature Over Voltage	200 Watts	Surface Mount
Texas Instruments UCC28600EVM-65W																		Board(s)	Fully Populated	1 Isolated Output Isolated	1	UCC28600	Flyback	AC/DC Primary Side	265 VAC	85 VAC	65 W	Board(s)	18 V
Texas Instruments UCC28600DRG4	8-SOIC	Isolated	99 %	Soft Start	21 V	8 V	40 kHz	130 kHz	0.154 in	8-SOIC	3.9 mm	-40 °C	105 °C	Flyback	Current Limiting Over Temperature Over Voltage	200 Watts	Surface Mount
Texas Instruments UCC28600DG4	8-SOIC	Isolated	99 %	Soft Start	21 V	8 V	40 kHz	130 kHz	0.154 in	8-SOIC	3.9 mm	-40 °C	105 °C	Flyback	Current Limiting Over Temperature Over Voltage	200 Watts	Surface Mount

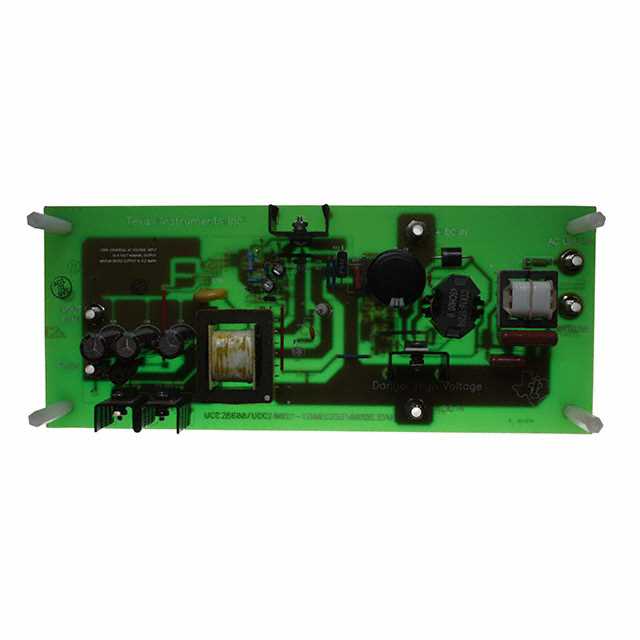

Texas Instruments UCC28600EVM																		Board(s)	Fully Populated	1 Isolated Output Isolated	1	UCC28600	Flyback	AC/DC Primary Side	265 VAC	85 VAC	120 W	Board(s)	19.4 V	6.2 A
Texas Instruments UCC28600TDRQ1	8-SOIC	Isolated	99 %	Soft Start	21 V	8 V	40 kHz	130 kHz	0.154 in	8-SOIC	3.9 mm	-40 °C	105 °C	Flyback	Current Limiting Over Temperature Over Voltage	200 Watts	Surface Mount														AEC-Q100	Automotive

Catalog

Automotive 8-pin current mode Flyback controller with green mode

Description

The UCC28600-Q1 is a PWM controller with advanced energy features to meet stringent world-wide energy efficiency requirements. UCC28600-Q1 integrates built-in advanced energy saving features with high level protection features to provide cost effective solutions for energy efficient power supplies. UCC28600-Q1 incorporates frequency fold back and green mode operation to reduce the operation frequency at light load and no load operations. UCC28600-Q1 is offered in the 8-pin SOIC (D) package. Operating ambient temperature range is –40°C to 105°C. The Design Calculator, (Texas Instruments Literature number SLVC104), located in the Tools and Software section of the UCC28600-Q1 product folder, provides a user-interactive iterative process for selecting recommended component values for an optimal design. The UCC28600-Q1 is a PWM controller with advanced energy features to meet stringent world-wide energy efficiency requirements. UCC28600-Q1 integrates built-in advanced energy saving features with high level protection features to provide cost effective solutions for energy efficient power supplies. UCC28600-Q1 incorporates frequency fold back and green mode operation to reduce the operation frequency at light load and no load operations. UCC28600-Q1 is offered in the 8-pin SOIC (D) package. Operating ambient temperature range is –40°C to 105°C. The Design Calculator, (Texas Instruments Literature number SLVC104), located in the Tools and Software section of the UCC28600-Q1 product folder, provides a user-interactive iterative process for selecting recommended component values for an optimal design.
