PPPC282 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 56POS 0.1 GOLD SMD

Part	Contact Finish Thickness - Post	Contact Material	Contact Shape	Insulation Material	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Termination	Contact Type	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions	Insulation Color	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Mounting Type	Number of Positions Loaded	Number of Rows [custom]	Insulation Height [z]	Insulation Height	Connector Type	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]

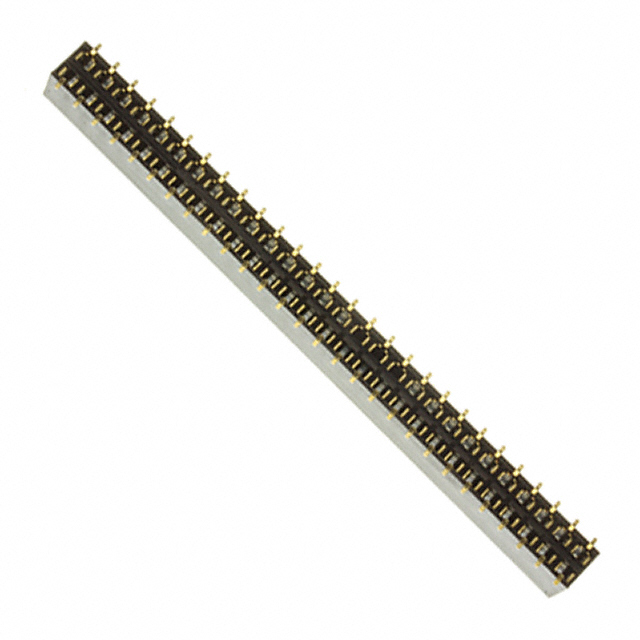

Sullins Connector Solutions PPPC282KFMS	Flash	Phosphor Bronze	Square	Polyester	UL94 V-0	0.1 in	2.54 mm	Push-Pull	Solder	Female Socket	Flash	Gold	56	Black	250 V	125 °C	-40 C	3 A	0.1 "	2.54 mm	Gold	Surface Mount	All	2	0.299 "	7.6 mm	Header

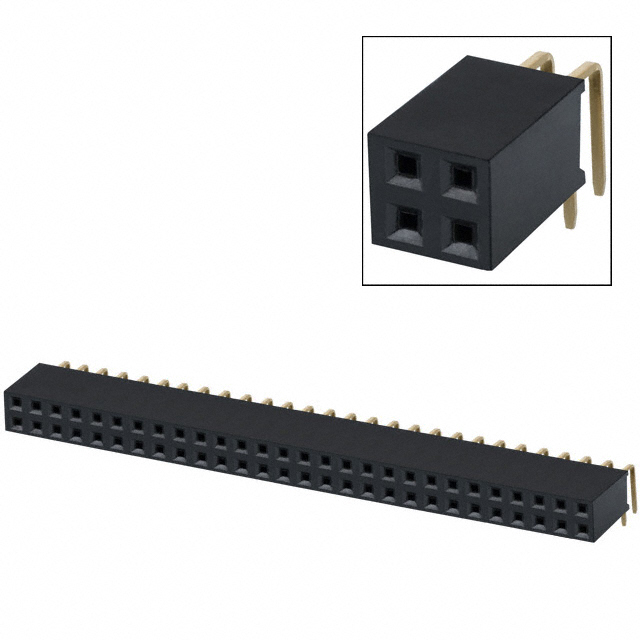

Sullins Connector Solutions PPPC282LJBN-RC	Flash	Phosphor Bronze	Square	Polyester	UL94 V-0	0.1 in	2.54 mm	Push-Pull	Solder	Female Socket	Flash	Gold	56	Black	250 V	105 ░C	-40 C	3 A	0.1 "	2.54 mm	Gold	Right Angle Through Hole	All	2	0.2 in		Header	5.08 mm	0.124 in	3.15 mm
Sullins Connector Solutions PPPC282LJBN	Flash	Phosphor Bronze	Square	Polyester	UL94 V-0	0.1 in	2.54 mm	Push-Pull	Solder	Female Socket	Flash	Gold	56	Black	250 V	105 ░C	-40 C	3 A	0.1 "	2.54 mm	Gold	Right Angle Through Hole	All	2	0.2 in		Header	5.08 mm	0.124 in	3.15 mm

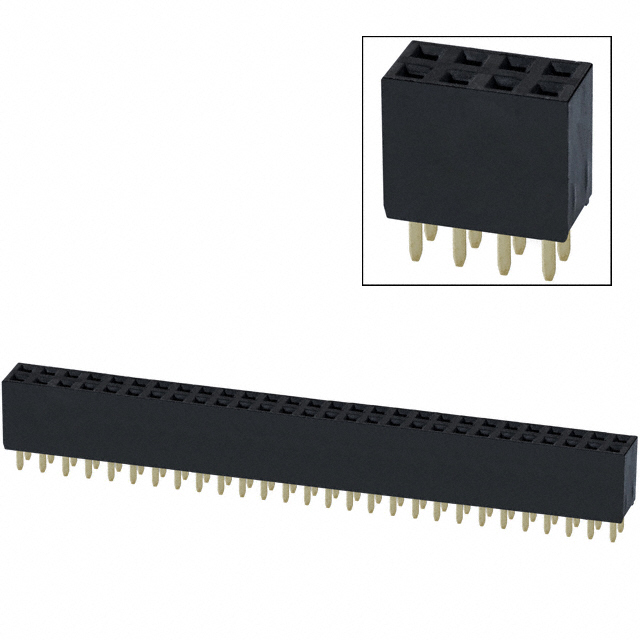

Sullins Connector Solutions PPPC282LFBN	Flash	Phosphor Bronze	Square	Polyester	UL94 V-0	0.1 in	2.54 mm	Push-Pull	Solder	Female Socket	Flash	Gold	56	Black	250 V	105 ░C	-40 C	3 A	0.1 "	2.54 mm	Gold	Through Hole	All	2		8.51 mm	Header				0.335 "	0.126 "	3.2 mm
