396-052 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 52POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Flange Feature | Gender | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Color | Number of Positions | Number of Positions/Bay/Row | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Termination | Contact Type | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Card Type | Read Out | Contact Finish | Number of Rows [custom] | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Flush Mount M3 Threaded Insert Top Opening | Female | Right Angle Through Hole | 0.25 Ám | 10 Áin | Black | 52 | 26 | -40 C | 105 ░C | 3.18 mm | 0.125 in | Solder Wire Wrap | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | Gold | 2 | |||

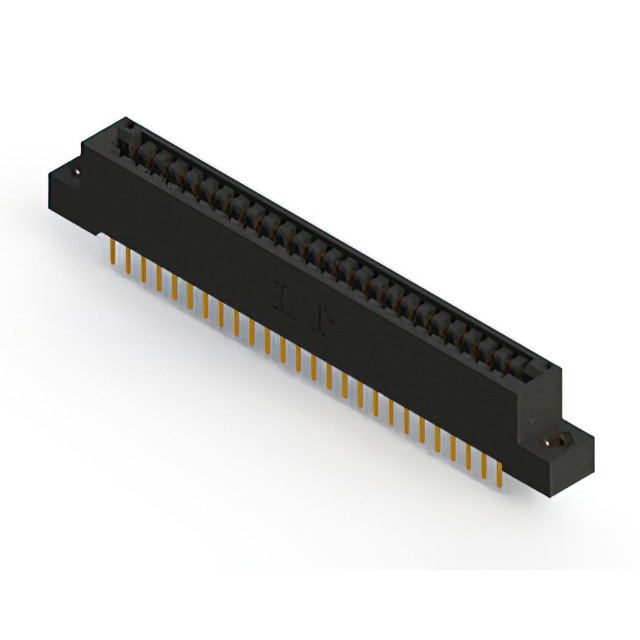

 EDAC Inc. | Polyester Thermoplastic | 2 | 4-40 Threaded Insert Top Mount Opening | Female | Through Hole | 0.25 Ám | 10 Áin | Black | 52 | 26 | -40 C | 105 ░C | 3.18 mm | 0.125 in | Solder | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | Gold | 2 | |||

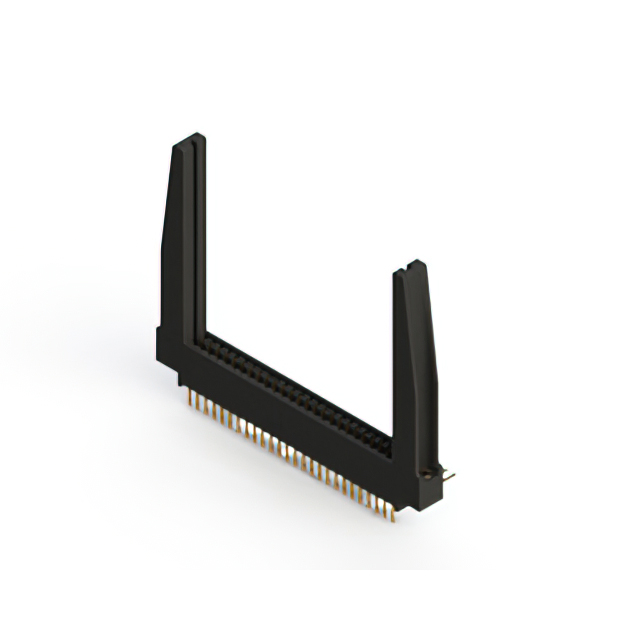

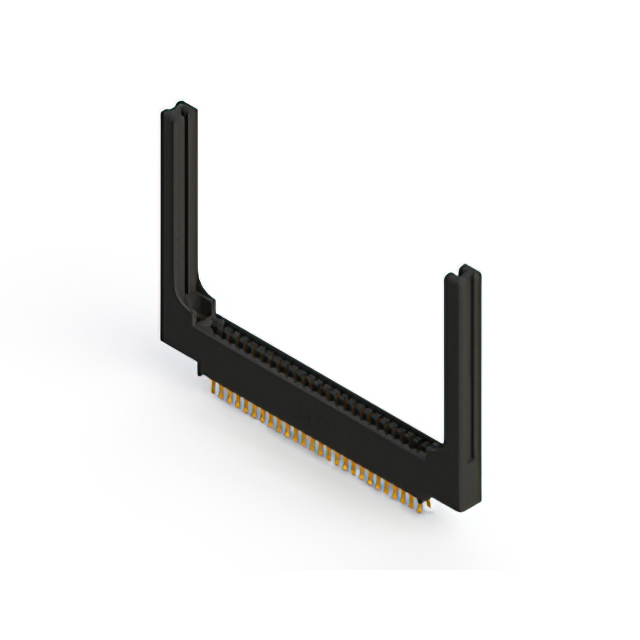

 EDAC Inc. | Polyester Thermoplastic | 2 | 4-40 Threaded Insert Top Mount Opening | Female | Right Angle Through Hole | 0.25 Ám | 10 Áin | Black | 52 | 26 | -40 C | 105 ░C | 3.18 mm | 0.125 in | Solder Wire Wrap | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | Gold | 2 | Card Guides | ||

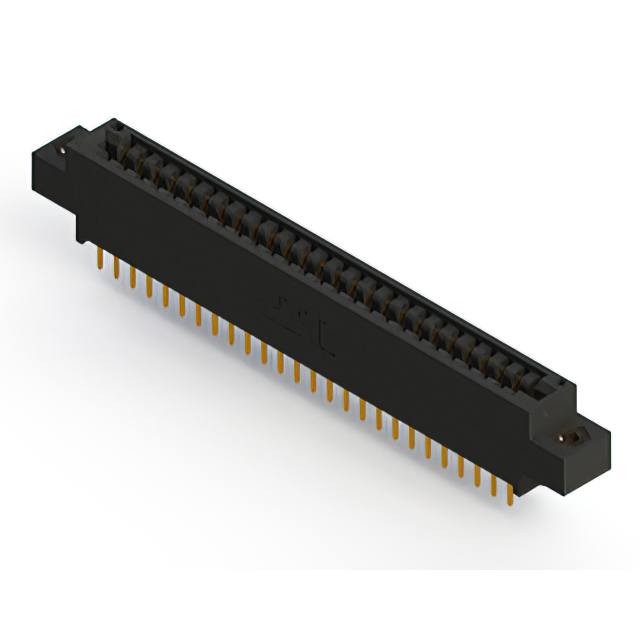

 EDAC Inc. | Polyester Thermoplastic | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Female | Through Hole | 0.25 Ám | 10 Áin | Black | 52 | 26 | -40 C | 105 ░C | 3.18 mm | 0.125 in | Solder | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | Gold | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Flush Mount Top Opening Unthreaded | Female | Right Angle Through Hole | 0.25 Ám | 10 Áin | Black | 52 | 26 | -40 C | 105 ░C | 3.18 mm | 0.125 in | Solder Wire Wrap | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | Gold | 2 | 0.156 " | 3.96 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Flush Mount M3 Threaded Insert Top Opening | Female | Through Hole | 0.25 Ám | 10 Áin | Black | 52 | 26 | -40 C | 105 ░C | 3.18 mm | 0.125 in | Solder | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | Gold | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Side Mount Opening Unthreaded | Female | Through Hole | 0.25 Ám | 10 Áin | Black | 52 | 26 | -40 C | 105 ░C | 3.18 mm | 0.125 in | Solder | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | Gold | 2 | 0.128 " | 3.25 mm | |

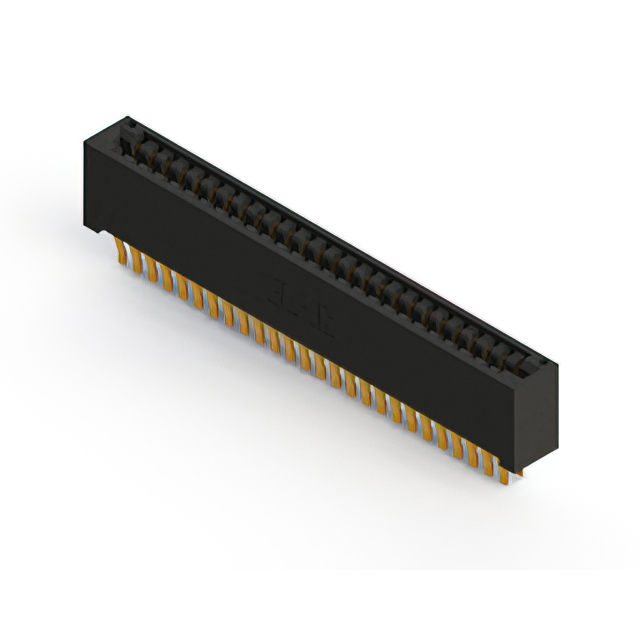

 EDAC Inc. | Polyester Thermoplastic | 2 | Female | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | Black | 52 | 26 | -40 C | 105 ░C | 3.18 mm | 0.125 in | Solder | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | Gold | 2 | Card Extender | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Flush Mount Side Opening Unthreaded | Female | Through Hole | 0.25 Ám | 10 Áin | Black | 52 | 26 | -40 C | 105 ░C | 3.18 mm | 0.125 in | Solder | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | Gold | 2 | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Floating Bobbin Flush Mount | Female | Through Hole | 0.25 Ám | 10 Áin | Black | 52 | 26 | -40 C | 105 ░C | 3.18 mm | 0.125 in | Solder | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | Gold | 2 | 0.116 " | 2.95 mm |
