THS312 Series

Catalog

EVAL MOD FOR THS3122

Part	Board Type	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	-3db Bandwidth	Output Type	Slew Rate	Current - Output / Channel	Supplied Contents	Utilized IC / Part	Amplifier Type	Channels per IC	Voltage - Supply Span (Max) [Max]	Mounting Type	Gain Bandwidth Product	Voltage - Supply Span (Min) [Min]	Current - Input Bias	Voltage - Input Offset	Number of Circuits	Package / Case [x]	Package / Case [y]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply	Supplier Device Package	Package / Case [custom]

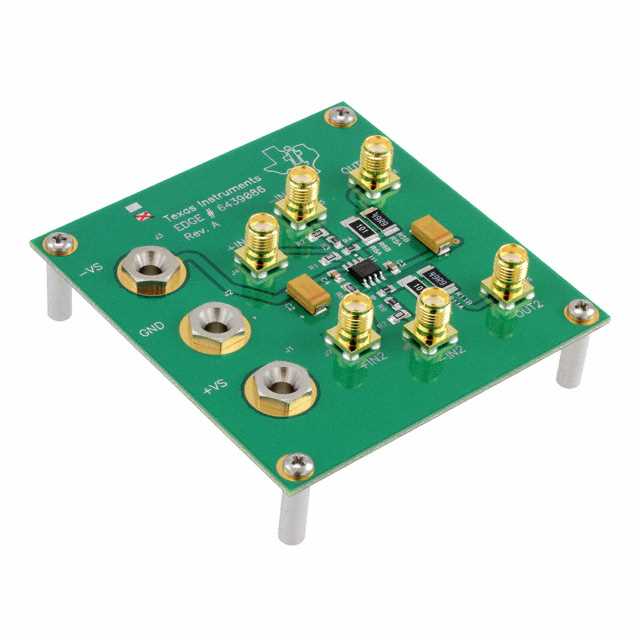

Texas Instruments THS3122EVM	Fully Populated	-5 V 10 V	15 V 30 V	160 MHz	Single-Ended	1550 V/µs	440 mA	Board(s)	THS3122	Current Feedback	2 - Dual
Texas Instruments THS3125IDRG4				160 MHz		1550 V/µs	440 mA			Current Feedback		30 V	Surface Mount	138 MHz	10 V	6 µA	4.4 mV	2	0.154 in	3.9 mm	14-SOIC	85 °C	-40 °C	8.4 mA
Texas Instruments THS3120CDR				130 MHz		1700 V/µs	490 mA			Current Feedback		30 V	Surface Mount		10 V	3 µA	2 mV	1	0.154 in	3.9 mm	8-SOIC	70 °C	0 °C	7 mA	8-SOIC
Texas Instruments THS3125CDR				160 MHz		1550 V/µs	440 mA			Current Feedback		30 V	Surface Mount	138 MHz	10 V	6 µA	4.4 mV	2	0.154 in	3.9 mm	14-SOIC	70 °C	0 °C	8.4 mA
Texas Instruments THS3120CDRG4				130 MHz		1700 V/µs	490 mA			Current Feedback		30 V	Surface Mount		10 V	3 µA	2 mV	1	0.154 in	3.9 mm	8-SOIC	70 °C	0 °C	7 mA	8-SOIC
Texas Instruments THS3122IDDARG3				160 MHz		1550 V/µs	440 mA			Current Feedback		30 V	Surface Mount	138 MHz	10 V	6 µA	4.4 mV	2	0.154 in	3.9 mm	8-PowerSOIC	85 °C	-40 °C	8.4 mA	8-SO PowerPad
Texas Instruments THS3121IDGNR				130 MHz		1700 V/µs	490 mA			Current Feedback		30 V	Surface Mount		10 V	3 µA	2 mV	1			8-MSOP 8-TSSOP Exposed Pad	85 °C	-40 °C	7 mA	8-HVSSOP	0.118 in 3 mm
Texas Instruments THS3122IDRG4				160 MHz		1550 V/µs	440 mA			Current Feedback		30 V	Surface Mount	138 MHz	10 V	6 µA	4.4 mV	2	0.154 in	3.9 mm	8-SOIC	85 °C	-40 °C	8.4 mA	8-SOIC
Texas Instruments THS3122IDR				160 MHz		1550 V/µs	440 mA			Current Feedback		30 V	Surface Mount	138 MHz	10 V	6 µA	4.4 mV	2	0.154 in	3.9 mm	8-SOIC	85 °C	-40 °C	8.4 mA	8-SOIC
Texas Instruments THS3122CDDAR				160 MHz		1550 V/µs	440 mA			Current Feedback		30 V	Surface Mount	138 MHz	10 V	6 µA	4.4 mV	2	0.154 in	3.9 mm	8-PowerSOIC	70 °C	0 °C	8.4 mA	8-SO PowerPad
