GHLEBB Series

Catalog

SWITCH PB SPST 2A 48V

Part	Mechanical Life	Electrical Life	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Type	Mounting Type	Ingress Protection	Switch Function	Type	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Current Rating (Amps)	Actuator Marking	Voltage Rating - DC	Circuit
CIT Relay and Switch GHLEBBGN	100000 Cycles	50000 Cycles	Solder Lug	10 mm	Button Round	Panel Mount Front	IP40	On-Off	Anti-Vandal Illuminated	Black	55 °C	-25 °C	Green LED	2 A	No Marking	48 V	SPST

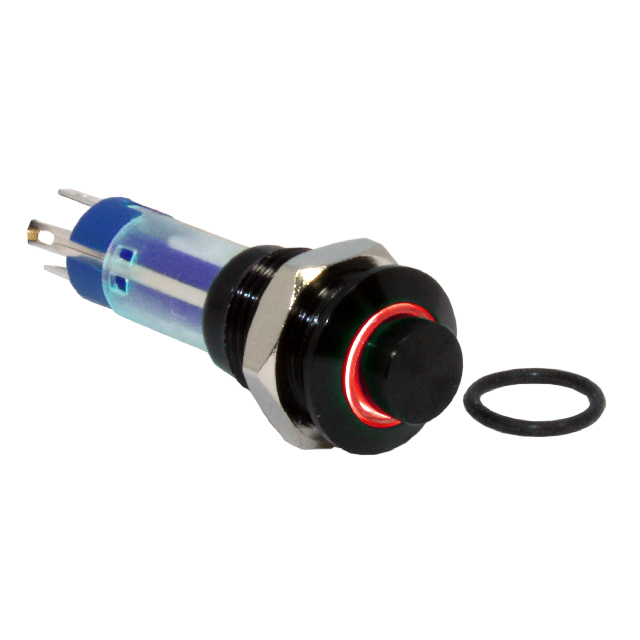

CIT Relay and Switch GHLEBBRGN	100000 Cycles	50000 Cycles	Solder Lug	10 mm	Button Round	Panel Mount Front	IP40	On-Off	Anti-Vandal Illuminated	Black	55 °C	-25 °C	Green/Red LED	2 A	No Marking	48 V	SPST

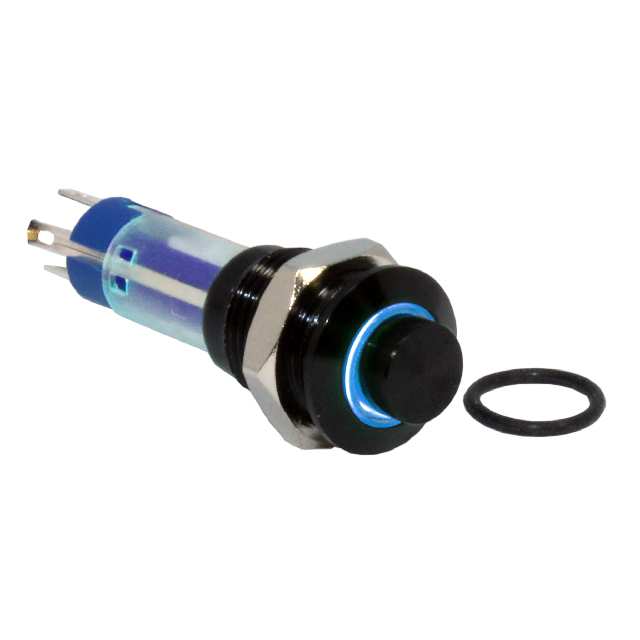

CIT Relay and Switch GHLEBBBN	100000 Cycles	50000 Cycles	Solder Lug	10 mm	Button Round	Panel Mount Front	IP40	On-Off	Anti-Vandal Illuminated	Black	55 °C	-25 °C	Blue LED	2 A	No Marking	48 V	SPST
