1586863 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

22P VAL-U-LOK R/A HDR GW

Part	Contact Material	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Type	Number of Positions	Current Rating (Amps)	Number of Positions Loaded	Number of Rows	Pitch - Mating	Pitch - Mating	Mounting Type	Termination	Applications	Contact Finish - Post	Voltage Rating	Features	Shrouding	Connector Type	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Insulation Material	Insulation Height	Insulation Height	Style
TE Connectivity Raychem Cable Protection 2-1586863-2	Brass	White	-40 °C	105 ░C	UL94 V-2	Male Pin	22 positions	9 A	All	2	4.2 mm	0.165 in	Through Hole Right Angle	Solder	General Purpose Industrial Lighting	Tin	600 VAC	Glow Wire Compliant	Shrouded - 4 Wall	Header	Locking Ramp	4.2 mm	0.165 in	Square	Nylon Polyamide (PA)	0.402 in	10.2 mm	Board to Cable/Wire

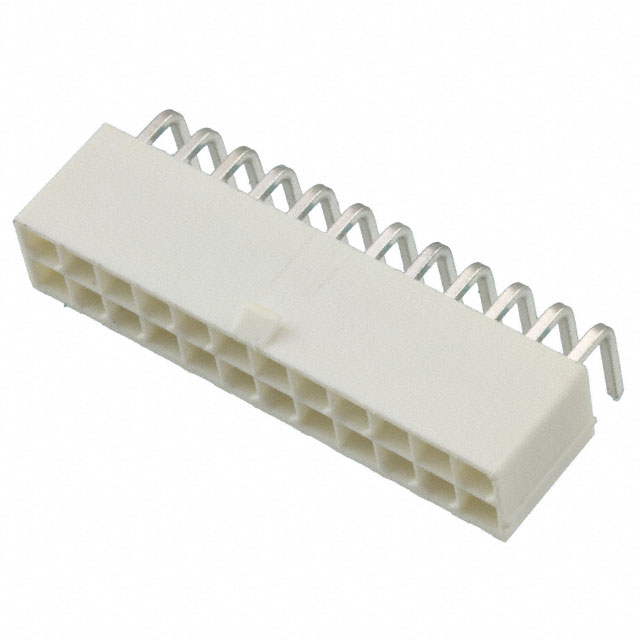

TE Connectivity Raychem Cable Protection 2-1586863-4	Brass	White	-40 °C	105 ░C	UL94 V-2	Male Pin	24	9 A	All	2	4.2 mm	0.165 in	Through Hole Right Angle	Solder	General Purpose Industrial Lighting	Tin	600 VAC	Glow Wire Compliant	Shrouded - 4 Wall	Header	Locking Ramp	4.2 mm	0.165 in	Square	Nylon Polyamide (PA)	0.402 in	10.2 mm	Board to Cable/Wire
TE Connectivity Raychem Cable Protection 1-1586863-8	Brass	White	-40 °C	105 ░C	UL94 V-2	Male Pin	18	9 A	All	2	4.2 mm	0.165 in	Through Hole Right Angle	Solder	General Purpose Industrial Lighting	Tin	600 VAC	Glow Wire Compliant	Shrouded - 4 Wall	Header	Locking Ramp	4.2 mm	0.165 in	Square	Nylon Polyamide (PA)	0.402 in	10.2 mm	Board to Cable/Wire

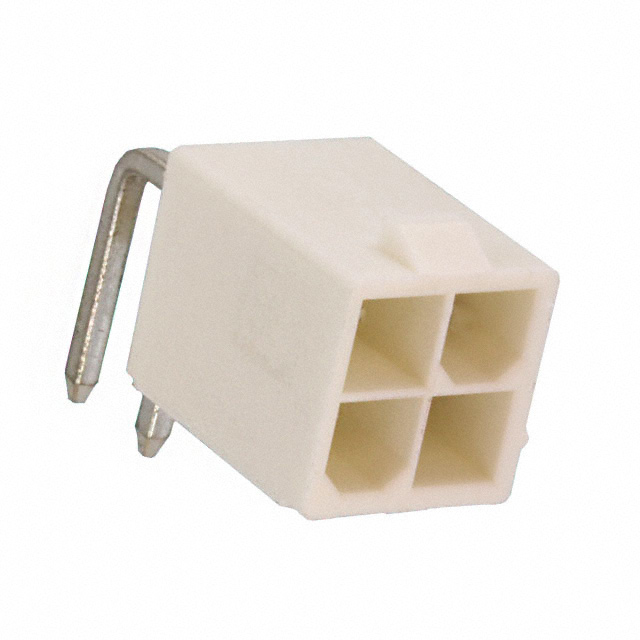

TE Connectivity Raychem Cable Protection 1586863-4	Brass	White	-40 °C	105 ░C	UL94 V-2	Male Pin	4	9 A	All	2	4.2 mm	0.165 in	Through Hole Right Angle	Solder	General Purpose Industrial Lighting	Tin	600 VAC	Glow Wire Compliant	Shrouded - 4 Wall	Header	Locking Ramp	4.2 mm	0.165 in	Square	Nylon Polyamide (PA)	0.402 in	10.2 mm	Board to Cable/Wire
