845-124 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FML 124POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Gender | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Color | Number of Rows [custom] | Mounting Type | Card Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Read Out | Number of Positions/Bay/Row | Number of Positions | Contact Material | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

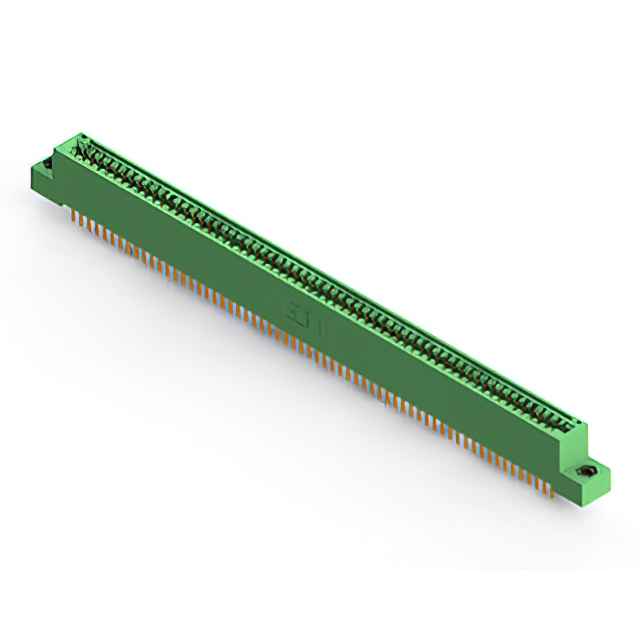

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Right Angle Through Hole | Non Specified - Dual Edge | Solder | 125 °C | -40 C | Gold | Dual | 62 | 124 | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | |||

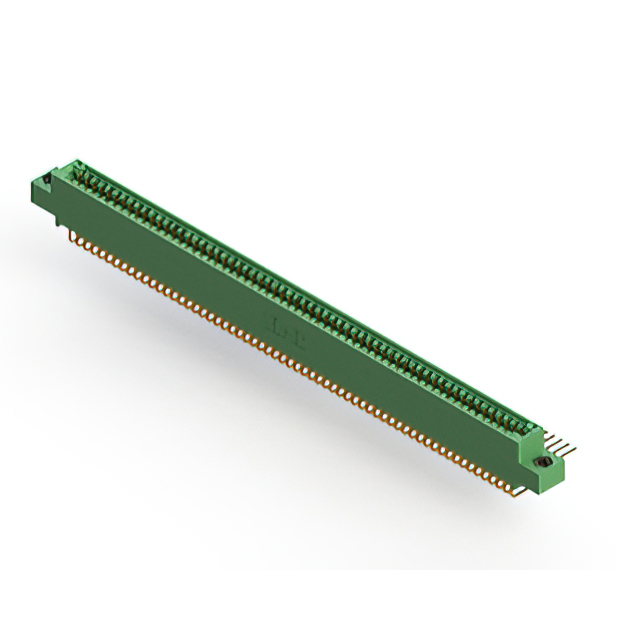

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Through Hole | Non Specified - Dual Edge | Solder | 125 °C | -40 C | Gold | Dual | 62 | 124 | Copper Alloy | 3.25 mm | 0.128 " | ||

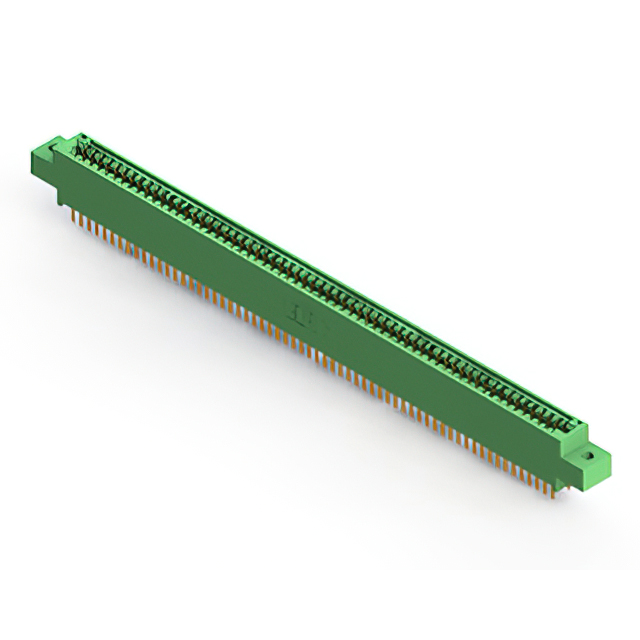

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Through Hole | Non Specified - Dual Edge | Wire Wrap | 125 °C | -40 C | Gold | Dual | 62 | 124 | Copper Alloy | 3.25 mm | 0.128 " | ||

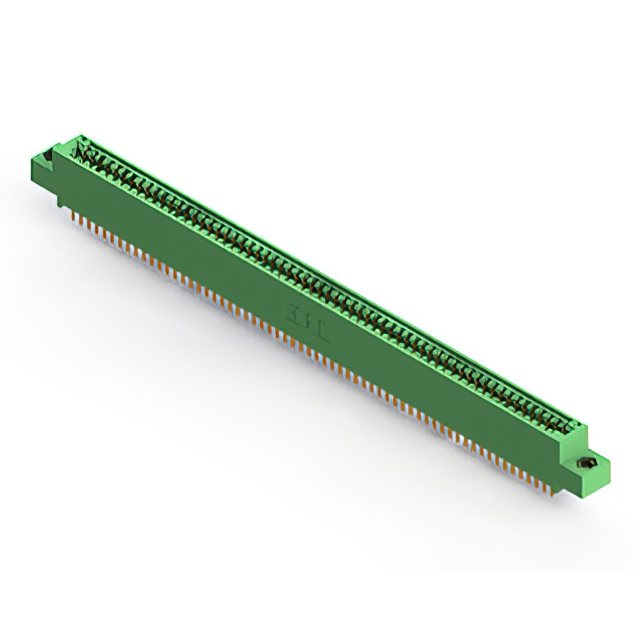

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Board Edge Straddle Mount | Non Specified - Dual Edge | Solder | 125 °C | -40 C | Gold | Dual | 62 | 124 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Card Extender | ||

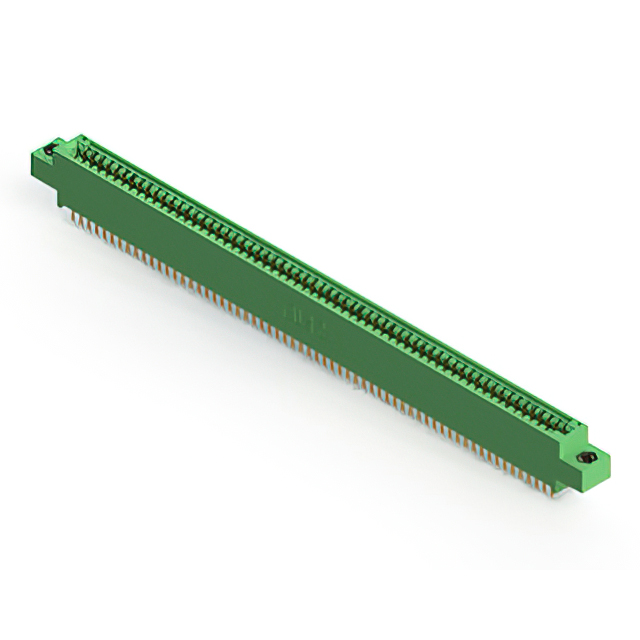

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Through Hole | Non Specified - Dual Edge | Solder | 125 °C | -40 C | Gold | Dual | 62 | 124 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | |||

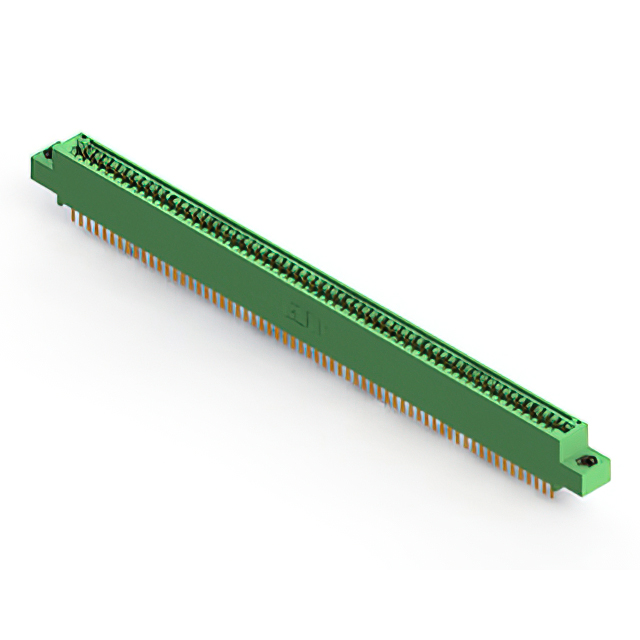

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Right Angle Through Hole | Non Specified - Dual Edge | Solder | 125 °C | -40 C | Gold | Dual | 62 | 124 | Copper Alloy | 3.25 mm | 0.128 " | ||

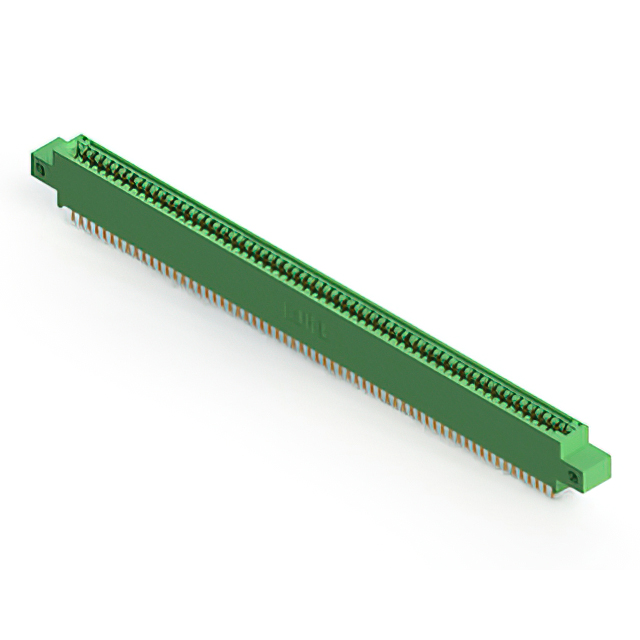

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Through Hole | Non Specified - Dual Edge | Solder | 125 °C | -40 C | Gold | Dual | 62 | 124 | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Through Hole | Non Specified - Dual Edge | Solder | 125 °C | -40 C | Gold | Dual | 62 | 124 | Copper Alloy | M3 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Through Hole | Non Specified - Dual Edge | Solder | 125 °C | -40 C | Gold | Dual | 62 | 124 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Right Angle Through Hole | Non Specified - Dual Edge | Solder | 125 °C | -40 C | Gold | Dual | 62 | 124 | Copper Alloy | M3 Threaded Insert Top Mount Opening |
