51M30 Series

Catalog

ROTARY SWITCHES ROTARY SWITCH, MILITARY, 30°, 1 DECK, 3 POLE/DECK, 2 POSITIONS/POLE, NON-SHORTING

Part	Actuator Length [x]	Contact Finish	Mounting Type	Termination Style	Contact Timing	Actuator Type	Current Rating (Amps)	Number of Poles per Deck	Index Stops	Depth Behind Panel [custom]	Circuit per Deck	Angle of Throw	Number of Positions	Voltage Rating - DC	Number of Decks [custom]	Voltage Rating - AC
Grayhill Inc. 51M30-01-3-02N	9.53 mm	Gold	Panel Mount	Solder Lug	Non-Shorting (BBM)	Flatted (3.17mm Dia)	150 mA 200 mA	3	Fixed	18.77 mm	3PDT	30 °	2	28 V	1	115 V
Grayhill Inc. 51M30-01-4-03S	9.53 mm	Gold	Panel Mount	Solder Lug	Shorting (MBB)	Flatted (3.17mm Dia)	150 mA 200 mA		Fixed	18.77 mm	4P3T	30 °		28 V	1	115 V
Grayhill Inc. 51M30-01-1-03S	9.53 mm	Gold	Panel Mount	Solder Lug	Shorting (MBB)	Flatted (3.17mm Dia)	150 mA 200 mA	1	Fixed	18.77 mm	SP3T	30 °		28 V	1	115 V
Grayhill Inc. 51M30-01B12N	9.53 mm	Gold	Panel Mount	Solder Lug	Non-Shorting (BBM)	Flatted (3.17mm Dia)	150 mA 200 mA	1	Fixed	18.77 mm	SP12T	30 °	12	28 V	1	115 V
Grayhill Inc. 51M30-01-1-04N	9.53 mm	Gold	Panel Mount	Solder Lug	Non-Shorting (BBM)	Flatted (3.17mm Dia)	150 mA 200 mA	1	Fixed	18.77 mm	SP4T	30 °	4	28 V	1	115 V
Grayhill Inc. 51M30-01-4-02S	9.53 mm	Gold	Panel Mount	Solder Lug	Shorting (MBB)	Flatted (3.17mm Dia)	150 mA 200 mA		Fixed	18.77 mm	4PDT	30 °	2	28 V	1	115 V

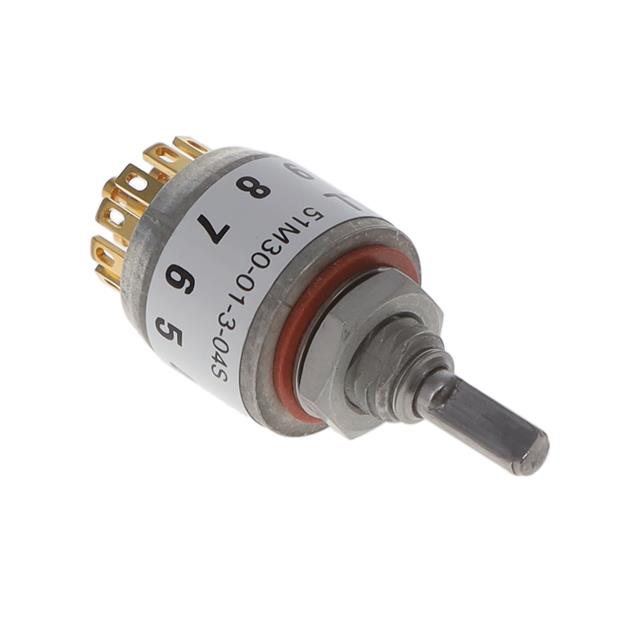

Grayhill Inc. 51M30-01-3-04S	9.53 mm	Gold	Panel Mount	Solder Lug	Shorting (MBB)	Flatted (3.17mm Dia)	150 mA 200 mA	3	Fixed	18.77 mm	3P4T	30 °	4	28 V	1	115 V
Grayhill Inc. 51M30-01-1-07N	9.53 mm	Gold	Panel Mount	Solder Lug	Non-Shorting (BBM)	Flatted (3.17mm Dia)	150 mA 200 mA	1	Fixed	18.77 mm	SP7T	30 °	7	28 V	1	115 V
Grayhill Inc. 51M30-01-1-04S	9.53 mm	Gold	Panel Mount	Solder Lug	Shorting (MBB)	Flatted (3.17mm Dia)	150 mA 200 mA	1	Fixed	18.77 mm	SP4T	30 °	4	28 V	1	115 V
Grayhill Inc. 51M30-01-1-08S	9.53 mm	Gold	Panel Mount	Solder Lug	Shorting (MBB)	Flatted (3.17mm Dia)	150 mA 200 mA	1	Fixed	18.77 mm	SP8T	30 °	8	28 V	1	115 V
