IL-G-15P Series

Catalog

CONN HEADER R/A 15POS 2.5MM

Part	Contact Type	Number of Positions	Current Rating (Amps)	Fastening Type	Contact Material	Mounting Type	Shrouding	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Shape	Style	Pitch - Mating	Pitch - Mating	Insulation Height [custom]	Insulation Height [custom]	Contact Finish - Post	Number of Rows	Termination	Material Flammability Rating	Insulation Material	Insulation Color	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Mated Stacking Heights	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

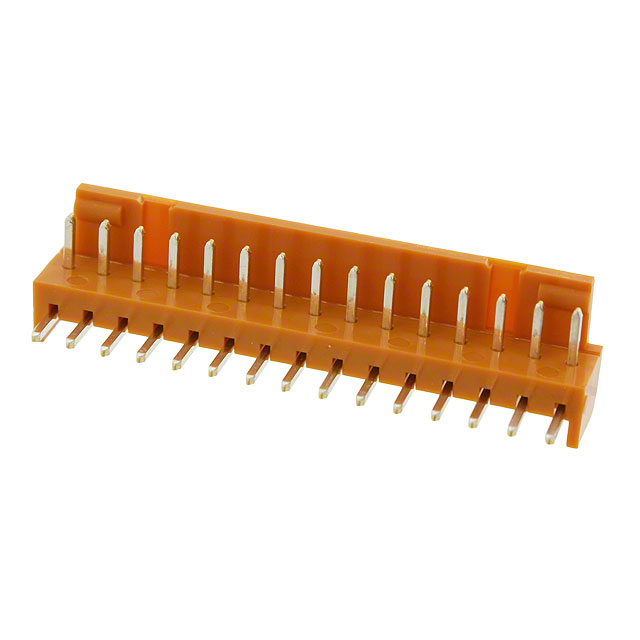

JAE Electronics IL-G-15P-S3L2-SA	Male Pin	15	3 A	Friction Lock	Brass	Right Angle Through Hole	Shrouded - 1 Wall	4 mm	0.157 in	Header	Square	Board to Cable/Wire	2.5 mm	0.098 in	0.236 "	6 mm	Tin	1	Solder	UL94 V-0	Nylon 6/6 Polyamide (PA66)	Brown	All	0.138 in	3.5 mm	85 °C	-40 C

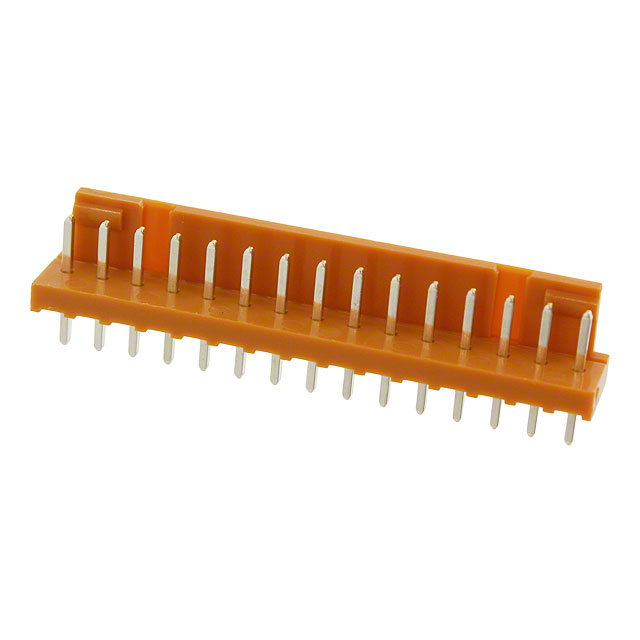

JAE Electronics IL-G-15P-S3T2-SA	Male Pin	15	3 A	Friction Lock	Brass	Through Hole	Shrouded - 1 Wall	4 mm	0.157 in	Header	Square	Board to Cable/Wire	2.5 mm	0.098 in			Tin	1	Solder	UL94 V-0	Nylon 6/6 Polyamide (PA66)	Brown	All	0.138 in	3.5 mm	85 °C	-40 C	10 mm	0.28 in	7.1 mm	9.6 mm	0.378 in
JAE Electronics IL-G-15P-S3T2-SA-1	Male Pin	15	3 A	Friction Lock	Brass	Through Hole	Shrouded - 1 Wall	4 mm	0.157 in	Header	Square	Board to Cable/Wire	2.5 mm	0.098 in				1	Solder	UL94 V-0	Nylon 6/6 Polyamide (PA66)	Brown	All	0.138 in	3.5 mm	85 °C	-40 C	10 mm	0.28 in	7.1 mm	9.6 mm	0.378 in	Gold	3.9 µin	0.099 µm
