ADP-.083 Series
Manufacturer: Adam Tech
Beta
⌘K

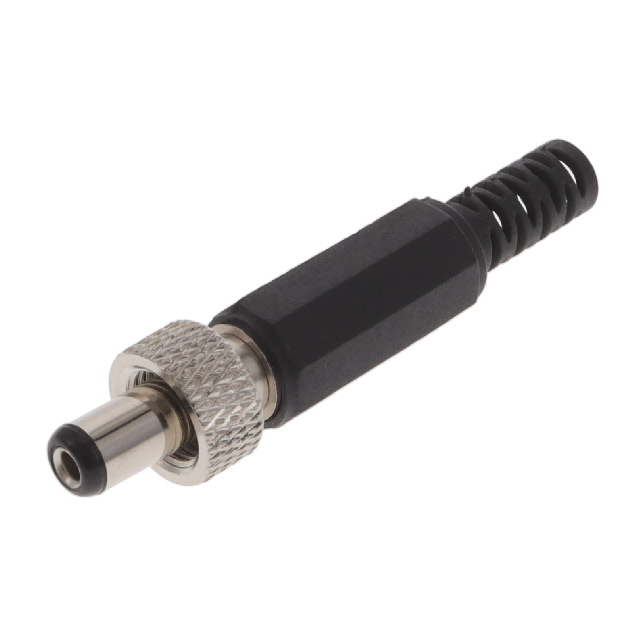

2.0MM DC POWER PLUG KIT
| Part | Contact Material | Body Material | Contact Material - Plating | Body Color | Housing Material | Includes | Mating Length/Depth | Mating Length/Depth | Insulation Color | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Shielding | Termination | Voltage - Rated | Current Rating (Amps) | Mounting Type | Connector Type | Actual Diameter [diameter] | Actual Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Internal Switch(s) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Brass | Brass | Nickel | Silver | Acrylonitrile Butadiene Styrene (ABS) | 1 Connector 1 Handle | 0.362 in | 9.2 mm | Black | 2 | 2 | Unshielded | Solder | 20 V | 6 A | Free Hanging (In-Line) | Plug | 0.083 in 0.217 in | 2.1 mm 5.5 mm | 0.083 " 0.217 in | 2.1 mm 5.5 mm | Female | -25 °C | 70 °C |
