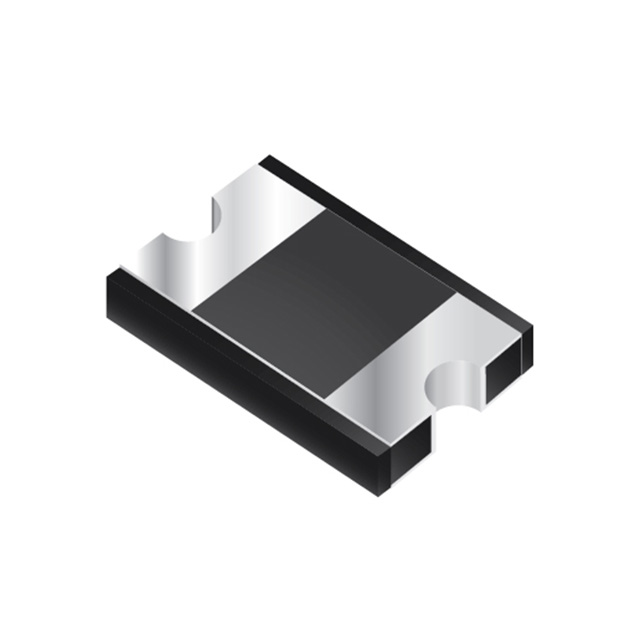

CD214C Series

Catalog

TVS DIODE 90VWM 146VC SMC

Part	Mounting Type	Supplier Device Package	Type	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)	Applications	Voltage - Breakdown (Min) [Min]	Package / Case	Current - Peak Pulse (10/1000µs)	Operating Temperature [Max]	Operating Temperature [Min]	Bidirectional Channels [custom]	Power - Peak Pulse	Power - Peak Pulse	Voltage - Forward (Vf) (Max) @ If [Max]	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Technology	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Capacitance @ Vr, F	Current - Average Rectified (Io)	Unidirectional Channels [custom]
Bourns Inc. CD214C-T90CALF	Surface Mount	SMC (DO-214AB)	Zener	146 V	90 V	General Purpose	100 V	DO-214AB SMC	10.3 A	150 °C	-55 °C	1	1.5 kW	1500 W
Bourns Inc. CD214C-F3200	Surface Mount	SMC (DO-214AB)						DO-214AB SMC							920 mV	200 mA 500 ns	200 V	25 ns	10 ÁA	Standard	-55 °C	150 °C	45 pF	3 A
Bourns Inc. CD214C-B3100R	Surface Mount	2-SMD						2-SMD No Lead							0.85 V	200 mA 500 ns	100 V		500 µA	Schottky	-55 °C	150 °C	180 pF	3 A
Bourns Inc. CD214C-FS3J	Surface Mount	2-SMD						2-SMD No Lead							1.7 V	200 mA 500 ns	600 V	35 ns	5 µA	Standard	-65 C	175 ░C	19 pF	3 A
Bourns Inc. CD214C-T40CALF	Surface Mount	SMC (DO-214AB)	Zener	64.5 V	40 V	General Purpose	44.4 V	DO-214AB SMC	23.3 A	150 °C	-55 °C	1	1.5 kW	1500 W
Bourns Inc. CD214C-T6.0ALF	Surface Mount	SMC (DO-214AB)	Zener	10.3 V	6 V	General Purpose	6.67 V	DO-214AB SMC	145.6 A	150 °C	-55 °C		1.5 kW	1500 W											1
Bourns Inc. CD214C-F3600	Surface Mount	SMC (DO-214AB)						DO-214AB SMC							1.3 V	200 mA 500 ns	600 V	35 ns	10 µA	Standard	-55 °C	150 °C	45 pF	3 A
Bourns Inc. CD214C-T100ALF	Surface Mount	SMC (DO-214AB)	Zener	162 V	100 V	General Purpose	111 V	DO-214AB SMC	9.3 A	150 °C	-55 °C		1.5 kW	1500 W											1
Bourns Inc. CD214C-T75ALF	Surface Mount	SMC (DO-214AB)	Zener	121 V	75 V	General Purpose	83.3 V	DO-214AB SMC	12.4 A	150 °C	-55 °C		1.5 kW	1500 W											1
Bourns Inc. CD214C-T170ALF	Surface Mount	SMC (DO-214AB)	Zener	275 V	170 V	General Purpose	189 V	DO-214AB SMC	5.5 A	150 °C	-55 °C		1.5 kW	1500 W											1
