r76 Series

Manufacturer: KEMET

Catalog

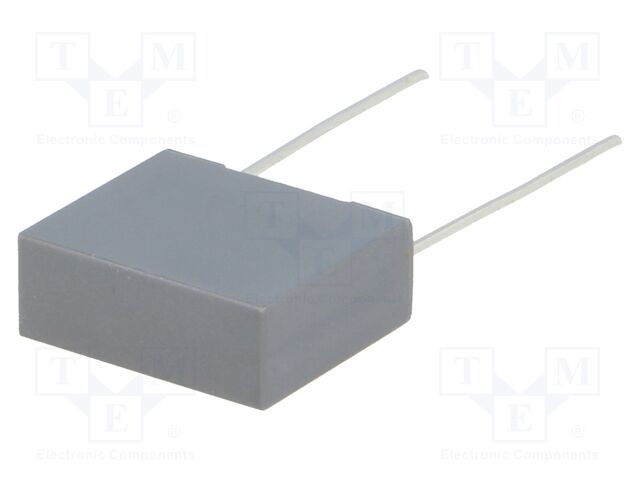

CAPACITOR: POLYPROPYLENE; R76; 2.7NF; 2000VDC; 700VAC; 18X4X10MM

Part	Applications	Height - Seated (Max) [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Voltage Rating - DC	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Capacitance	Lead Spacing	Lead Spacing	Tolerance	Package / Case	Ratings	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	ESR (Equivalent Series Resistance)	Termination	Dielectric Material	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]
KEMET R76UI127050H4J	Automotive High Frequency Switching High Pulse DV/DT	10.1 mm	0.398 in	Through Hole	2 kV	2 kVDC	-55 C	125 °C	700 V	2700 pF	15 mm	0.591 in	5 %	Radial	AEC-Q200	0.709 in	18 mm	4 mm	0.157 "	707 mOhms	PC Pins	Polypropylene (PP) Metallized
KEMET R76UI01004040J	Automotive High Frequency Switching High Pulse DV/DT	10.1 mm	0.398 in	Through Hole	2 kV	2 kVDC	-55 C	110 °C	700 V	100 pF	15 mm	0.591 in	5 %	Radial	AEC-Q200	0.709 in	18 mm	4 mm	0.157 "		PC Pins	Polypropylene (PP) Metallized
KEMET R76UN218050H4J	Automotive High Frequency Switching High Pulse DV/DT			Through Hole	2 kV	2 kVDC	-55 C	125 °C	700 V	0.018 µF	22.5 mm	0.886 in	5 %	Radial	AEC-Q200	1.043 in	26.5 mm	6 mm	0.236 "	106 mOhm	PC Pins	Polypropylene (PP) Metallized	0.594 in	15.1 mm
KEMET R76PI239050H3J	Automotive High Frequency Switching High Pulse DV/DT			Through Hole			-55 C	125 °C	400 V	0.039 µF	15 mm	0.591 in	5 %	Radial	AEC-Q200	0.709 in	18 mm	6 mm	0.236 "	49 mOhm	PC Pins	Polypropylene (PP) Metallized	0.476 "		12.1 mm
KEMET R76TI218050H4J	Automotive High Frequency Switching High Pulse DV/DT			Through Hole	1.6 kV	1600 V	-55 C	125 °C	650 V	0.018 µF	15 mm	0.591 in	5 %	Radial	AEC-Q200	0.709 in	18 mm	7.5 mm	0.295 in	106 mOhm	PC Pins	Polypropylene (PP) Metallized
KEMET R76QI2470DQ40K	Automotive High Frequency Switching High Pulse DV/DT			Through Hole	1 kV	1 kVDC	-55 C	110 °C	600 V		15 mm	0.591 in	10 %	Radial	AEC-Q200	0.709 in	18 mm	8.5 mm	0.335 in	14 mOhms	PC Pins	Polypropylene (PP) Metallized		14.6 mm		0.575 in
