H3155 Series

Catalog

PCB SOCKET, 1POS ROHS COMPLIANT: YES

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Tail Type	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Length - Overall [x]	Length - Overall [x]	Termination	Contact Finish	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Insertion Force [Max]	Insertion Force [Min]

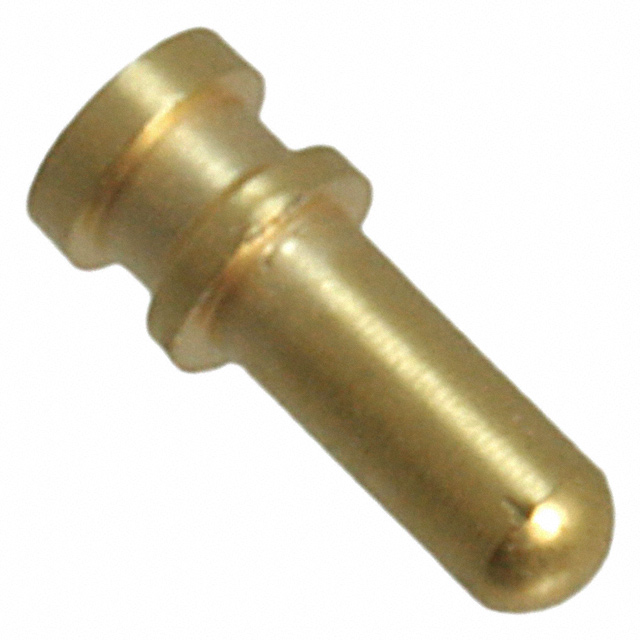

Harwin Inc. H3155-05	-55 C	125 °C	0.124 in	3.15 mm	No Tail	1.09 mm	0.043 in	0.99 mm	0.039 in	0.057 in	1.45 mm	Beryllium Copper	0.142 in	3.61 mm	Solder	Gold	0.46 mm	0.51 mm	0.02 in	0.018 in
Harwin Inc. H3155-01	-55 C	125 °C	0.124 in	3.15 mm	No Tail	1.09 mm	0.043 in	0.99 mm	0.039 in	0.057 in	1.45 mm	Beryllium Copper	0.142 in	3.61 mm	Solder	Gold	0.46 mm	0.51 mm	0.02 in	0.018 in	6 N	2 N
