V Series

Manufacturer: Chemi-Con

Catalog

VARISTORS 225VDC 270V 5000A AEC-Q200

Part	Package / Case	Varistor Voltage (Max) [Max]	Capacitance @ Frequency	Varistor Voltage (Typ)	Maximum DC Volts [Max]	Mounting Type	Current - Surge	Varistor Voltage (Min) [Min]	Number of Circuits	Energy	Operating Temperature [Max]	Operating Temperature [Min]	Maximum AC Volts [Max]
Chemi-Con TND14V-271KB00AAA0	Disc 14mm	303 V	700 pF	270 V	225 V	Through Hole	6000 A	247 V	1	70 J	85 C	-40 ¯C	175 V

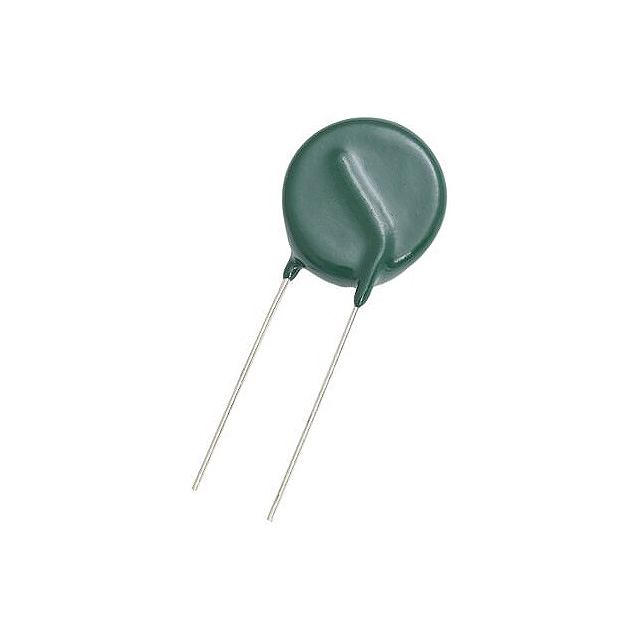

Chemi-Con TND20V-102KB00AAA0	Disc	1.1 kV	560 pF	1000 V	825 V	Through Hole	7.5 kA	900 V	1	400 J	85 C	-40 ¯C	625 V
Chemi-Con TND14V-681KB00AAA0	Disc 14mm	748 V	310 pF	680 V	560 V	Through Hole	5 kA	612 V	1		85 C	-40 ¯C	420 V
Chemi-Con TND07V-330KB00AAA0	Disc 7mm	36 V	1 kHz 2300 pF	33 V	26 V	Through Hole	500 A	30 V	1	1.6 J	85 C	-40 ¯C	20 V
Chemi-Con TND05V-470KB00AAA0	Disc	52 V	1140 pF	47 V	37 V	Through Hole	250 A	42 V	1	1.1 J	85 C	-40 ¯C	30 V
Chemi-Con TND10V-330KB00AAA0	Disc 10mm	36 V	5000 pF	33 V	26 V	Through Hole	1 kA	30 V	1	4 J	85 C	-40 ¯C	20 V
