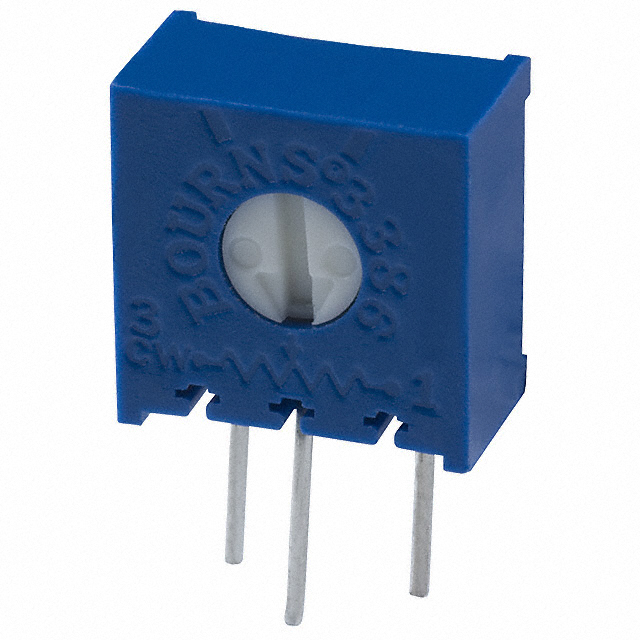

3386X Series

Catalog

TRIMMER 100KOHM 0.5W PC PIN SIDE

...

Part	Adjustment Type	Temperature Coefficient	Number of Turns	Power (Watts)	Power (Watts)	Tolerance	Resistive Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Termination Style	Resistance	Mounting Type
Bourns Inc. 3386X-1-104LF	Side Adjustment	100 ppm/°C	1	0.5 W	0.5 W	10 %	Cermet	0.375 in	0.375 in	9.53 mm	PC Pins	100 kOhms	Through Hole
Bourns Inc. 3386X-1-104TLF	Side Finger Adjustment	100 ppm/°C	1	0.5 W	0.5 W	10 %	Cermet	0.375 in	0.375 in	9.53 mm	PC Pins	100 kOhms	Through Hole
Bourns Inc. 3386X-1-471LF	Side Adjustment	100 ppm/°C	1	0.5 W	0.5 W	10 %	Cermet	0.375 in	0.375 in	9.53 mm	PC Pins	470 Ohms	Through Hole
Bourns Inc. 3386X-1-155T	Side Finger Adjustment	100 ppm/°C	1	0.5 W	0.5 W	10 %	Cermet	0.375 in	0.375 in	9.53 mm	PC Pins	1.5 MOhms	Through Hole
Bourns Inc. 3386X-DF6-504	Side Adjustment	100 ppm/°C	1	0.5 W	0.5 W	10 %	Cermet	0.375 in	0.375 in	9.53 mm	PC Pins		Through Hole
Bourns Inc. 3386X-1-500	Side Adjustment	100 ppm/°C	1	0.5 W	0.5 W	10 %	Cermet	0.375 in	0.375 in	9.53 mm	PC Pins	50 Ohms	Through Hole
Bourns Inc. 3386X-DF6-201	Side Adjustment	100 ppm/°C	1	0.5 W	0.5 W	10 %	Cermet	0.375 in	0.375 in	9.53 mm	PC Pins	200 Ohms	Through Hole
Bourns Inc. 3386X-1-505	Side Adjustment	100 ppm/°C	1	0.5 W	0.5 W	10 %	Cermet	0.375 in	0.375 in	9.53 mm	PC Pins	5000000 Ohms	Through Hole
Bourns Inc. 3386X-1-105	Side Adjustment	100 ppm/°C	1	0.5 W	0.5 W	10 %	Cermet	0.375 in	0.375 in	9.53 mm	PC Pins	1 MOhms	Through Hole
Bourns Inc. 3386X-1-152	Side Adjustment	100 ppm/°C	1	0.5 W	0.5 W	10 %	Cermet	0.375 in	0.375 in	9.53 mm	PC Pins	1500 Ohms	Through Hole
