794070 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

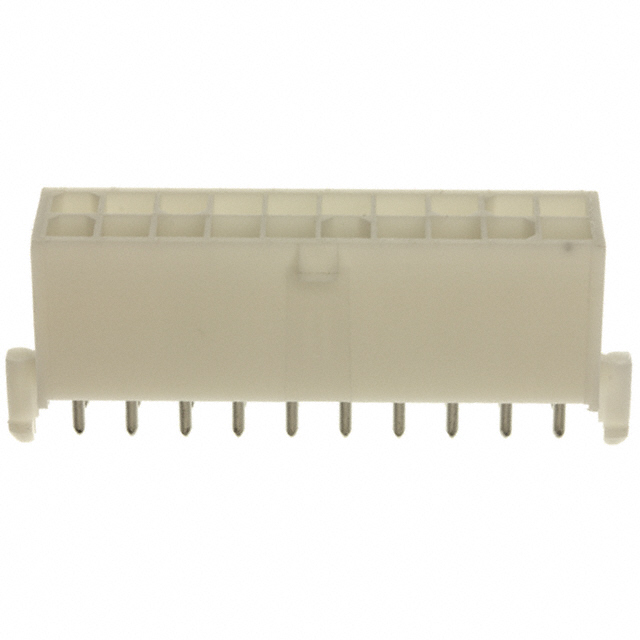

CONN HEADER VERT 20POS 4.14MM
| Part | Applications | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Shrouding | Insulation Material | Current Rating (Amps) | Contact Type | Contact Length - Post | Contact Length - Post | Connector Type | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows [custom] | Number of Positions Loaded | Contact Finish - Post | Number of Positions | Style | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Voltage Rating | Fastening Type | Contact Shape | Mounting Type | Features | Insulation Color | Row Spacing - Mating [x] | Row Spacing - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | 3.81 Ám | 13.5 mm | 0.531 in | 0.163 in | 4.14 mm | Tin-Lead | Shrouded - 4 Wall | Nylon Polyamide (PA) | Varies by Wire Gauge | Male Pin | 4.45 mm | 0.175 in | Header | UL94 V-0 | 150 Áin | 3.81 Ám | 2 | All | Tin-Lead | 20 | Board to Cable/Wire | Brass | 85 °C | -20 ░C | Solder | 600 VAC | Locking Ramp | Circular | Through Hole | Board Lock | White | 4.14 mm | 0.163 in |
