PHPT610030 Series

PNP/PNP high power double bipolar transistor

Catalog

PNP/PNP high power double bipolar transistor

Part	Vce Saturation (Max) @ Ib, Ic	Grade	Voltage - Collector Emitter Breakdown (Max) [Max]	Qualification	Operating Temperature	Frequency - Transition	Power - Max [Max]	Package / Case	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Supplier Device Package	Mounting Type	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]
Nexperia USA Inc. PHPT610030NKX	330 mV	Automotive	100 V	AEC-Q100	175 °C	140 MHz	1.25 W	8-LFPAK56 SOT-1205	2 NPN (Dual)	80	LFPAK56D	Surface Mount	3 A	100 nA
Nexperia USA Inc. PHPT610030NPKX	110 mV 330 mV	Automotive	100 V	AEC-Q100	175 °C	125 MHz 140 MHz	1.25 W	8-LFPAK56 SOT-1205	1 NPN 1 PNP	80	LFPAK56D	Surface Mount	3 A	100 nA
Nexperia USA Inc. PHPT610030PKX	360 mV	Automotive	100 V	AEC-Q100	175 °C	125 MHz	1.25 W	8-LFPAK56 SOT-1205	2 PNP (Dual)	150	LFPAK56D	Surface Mount	3 A	100 nA

PNP/PNP high power double bipolar transistor

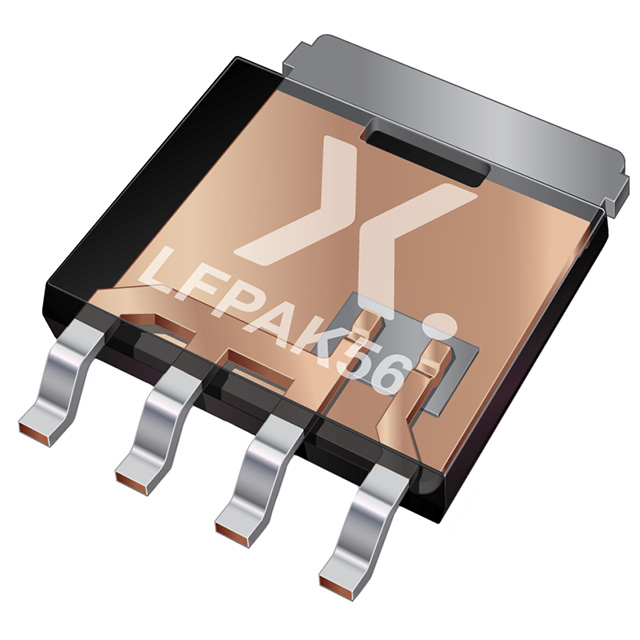

PNP/PNP high power double bipolar transistor in a SOT1205 (LFPAK56D) Surface-Mounted Device (SMD) power plastic package.
