1701-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

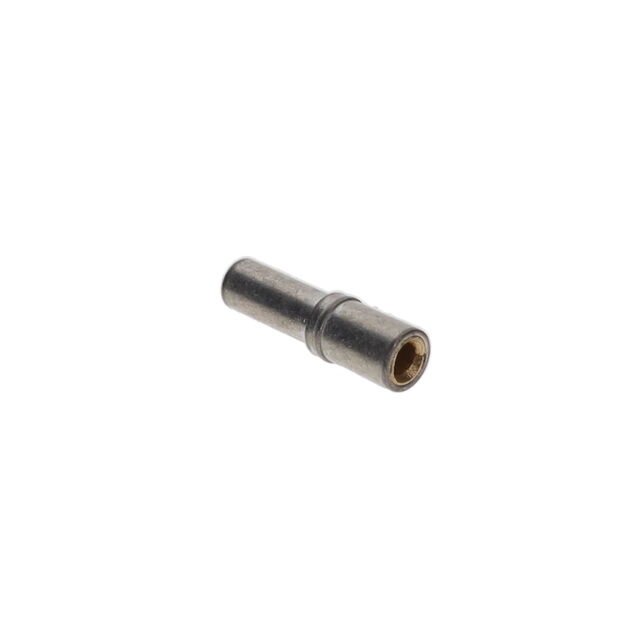

CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Tail Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Contact Material | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Press-Fit | 1.45 mm | 0.057 in | No Tail | 0.071 in | 1.8 mm | 0.25 Ám | 10 Áin | Gold | Beryllium Copper | 0.64 mm | 0.015 " | 0.025 in | 0.38 mm |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Press-Fit | 1.45 mm | 0.057 in | No Tail | 0.071 in | 1.8 mm | 0.76 Ám | 30 Áin | Gold | Beryllium Copper | 0.64 mm | 0.015 " | 0.025 in | 0.38 mm |
