ACR05B Series

Manufacturer: KEMET

Catalog

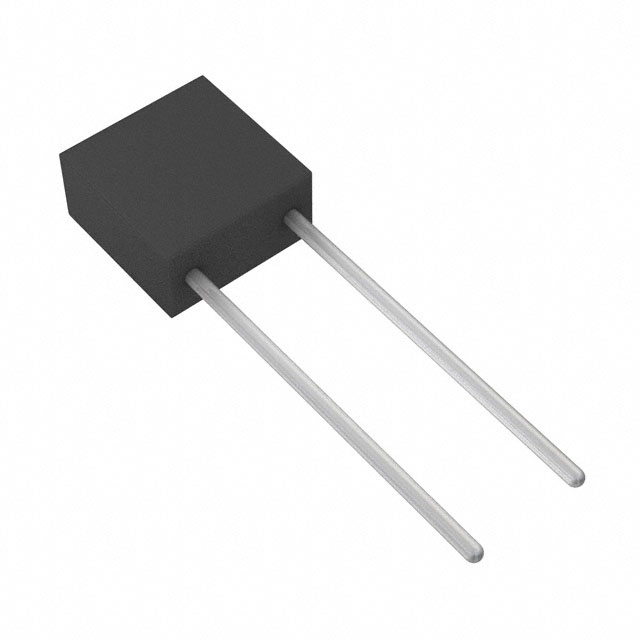

CAP CER 47PF 50V NP0 RADIAL

Part	Mounting Type	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Lead Style	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Lead Spacing	Lead Spacing	Tolerance	Capacitance
KEMET ACR05B470JGS	Through Hole	C0G NP0	0.1 in	5.08 mm	2.54 mm	0.2 in	General Purpose	Straight	Radial	200 °C	-55 C	High Temperature	5.08 mm	0.2 in	50 VDC	0.2 in	5.08 mm	5 %	47 pF
KEMET ACR05B102KGS	Through Hole	C0G NP0	0.1 in	5.08 mm	2.54 mm	0.2 in	General Purpose	Straight	Radial	200 °C	-55 C	High Temperature	5.08 mm	0.2 in	50 VDC	0.2 in	5.08 mm	10 %	0.001 µF
KEMET ACR05B103FGS	Through Hole	C0G NP0	0.1 in	5.08 mm	2.54 mm	0.2 in	General Purpose	Straight	Radial	200 °C	-55 C	High Temperature	5.08 mm	0.2 in	50 VDC	0.2 in	5.08 mm	1 %	10000 pF
KEMET ACR05B100KGS	Through Hole	C0G NP0	0.1 in	5.08 mm	2.54 mm	0.2 in	General Purpose	Straight	Radial	200 °C	-55 C	High Temperature	5.08 mm	0.2 in	50 VDC	0.2 in	5.08 mm	10 %	10 pF
KEMET ACR05B101KGS	Through Hole	C0G NP0	0.1 in	5.08 mm	2.54 mm	0.2 in	General Purpose	Straight	Radial	200 °C	-55 C	High Temperature	5.08 mm	0.2 in	50 VDC	0.2 in	5.08 mm	10 %	100 pF
