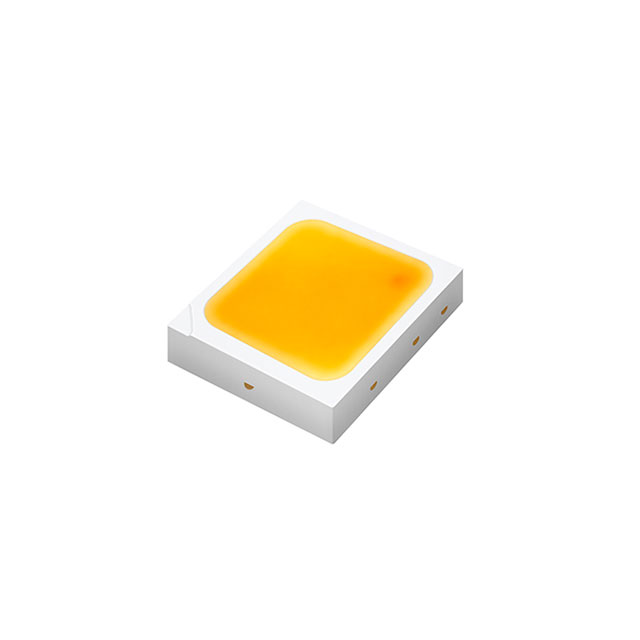

SPMWHT328 Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

LED LM301A WARM WHT 2700K 3030

Part	Thermal Resistance of Package	Mounting Type	Flux @ 85°C, Current - Test	CRI (Color Rendering Index)	Supplier Device Package	Current - Max [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Color	CCT (K)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	Current - Test	Lumens/Watt @ Current - Test	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]
Samsung Semiconductor, Inc. SPMWHT328FD7WAW0S0	7 °C/W	Surface Mount	42 lm	90	3030	500 mA	0.03 "	0.75 mm	2.85 V	115 °	Warm White	2700 K	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	150 mA	98 lm/W
Samsung Semiconductor, Inc. SPMWHT328FD5WAR0S0	7 °C/W	Surface Mount		80	3030	500 mA	0.03 "	0.75 mm	2.85 V	115 °	Cool White	5000 K	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	150 mA	145 lm/W	66 lm	58 lm
Samsung Semiconductor, Inc. SPMWHT328FD7WAT0S0	7 °C/W	Surface Mount	50 lm	90	3030	500 mA	0.03 "	0.75 mm	2.85 V	115 °	Neutral White	4000 K	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	150 mA	117 lm/W	54 lm	46 lm
Samsung Semiconductor, Inc. SPMWHT328FD7WAVKS0	7 °C/W	Surface Mount	46 lm	90	3030	500 mA	0.03 "	0.75 mm	2.85 V	115 °	Warm White	3000 K	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	150 mA	108 lm/W
Samsung Semiconductor, Inc. SPMWHT328FD3WARKS0	7 °C/W	Surface Mount	66 lm	70	3030	500 mA	0.03 "	0.75 mm	2.85 V	115 °	Cool White	5000 K	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	150 mA	154 lm/W
Samsung Semiconductor, Inc. SPMWHT328FD7WAV0S0	7 °C/W	Surface Mount	46 lm	90	3030	500 mA	0.03 "	0.75 mm	2.85 V	115 °	Warm White	3000 K	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	150 mA	108 lm/W
Samsung Semiconductor, Inc. SPMWHT328FD5WATKS0	7 °C/W	Surface Mount		80	3030	500 mA	0.03 "	0.75 mm	2.85 V	115 °	Neutral White	4000 K	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	150 mA	145 lm/W	66 lm	58 lm
Samsung Semiconductor, Inc. SPMWHT328FD3WAVKS0	7 °C/W	Surface Mount		70	3030	500 mA	0.03 "	0.75 mm	2.85 V	115 °	Warm White	3000 K	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	150 mA	145 lm/W	66 lm	58 lm
Samsung Semiconductor, Inc. SPMWHT328FD7WAR0S0	7 °C/W	Surface Mount	46 lm	90	3030	500 mA	0.03 "	0.75 mm	2.85 V	115 °	Cool White	5000 K	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	150 mA	108 lm/W
Samsung Semiconductor, Inc. SPMWHT328FD3WAU0S0	7 °C/W	Surface Mount		70	3030	500 mA	0.03 "	0.75 mm	2.85 V	115 °	Warm White	3500 K	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	150 mA	145 lm/W	66 lm	58 lm
