GDCX-PN Series
Manufacturer: Kycon, Inc.
Beta
⌘K

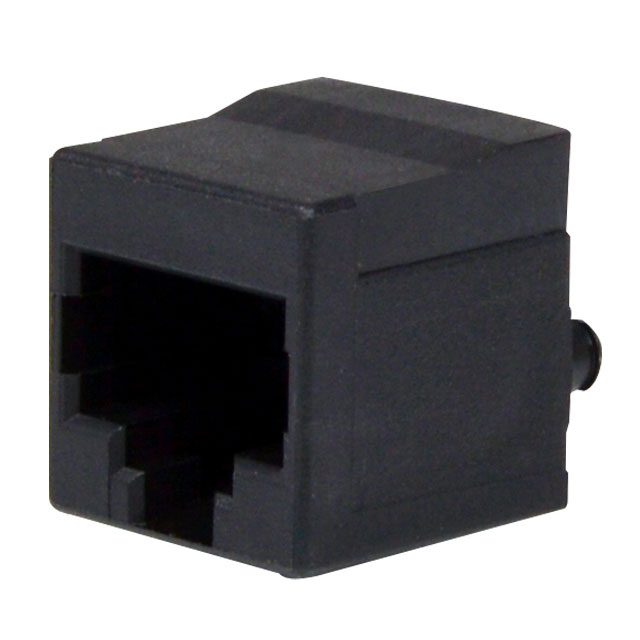

CONN MOD JACK 8P8C VERT UNSHLD
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Contact Finish Thickness | Contact Material | Termination | Number of Rows | Mounting Type | Tab Direction | Number of Positions/Contacts | Number of Ports | Shielding | Contact Finish | LED Color | Features | Connector Type | Orientation | Number of Positions/Contacts [y] | Number of Positions/Contacts [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | 85 °C | -40 C | Polybutylene Terephthalate (PBT) | Flash | Phosphor Bronze | Solder | 1 | Through Hole | User Selectable | 8p8c (RJ45 Ethernet) | 1 | Unshielded | Gold | Does Not Contain LED | Board Lock | Jack | Vertical | ||
 Kycon, Inc. | 85 °C | -40 C | Polybutylene Terephthalate (PBT) | Flash | Phosphor Bronze | Solder | 1 | Through Hole | User Selectable | 1 | Unshielded | Gold | Does Not Contain LED | Board Guide Board Lock | Jack | Vertical | 4 | 6 | |
Kycon, Inc. | 85 °C | -40 C | Polybutylene Terephthalate (PBT) | Flash | Phosphor Bronze | Solder | 1 | Through Hole | User Selectable | 8p8c (RJ45 Ethernet) | 1 | Unshielded | Gold | Does Not Contain LED | Board Guide Board Lock Keyed | Jack | Vertical |
