NJL4281D Series
Bipolar Power Transistor, NPN, ThermalTrak™, 15 A, 350 V
Manufacturer: ON Semiconductor
Catalog
Bipolar Power Transistor, NPN, ThermalTrak™, 15 A, 350 V
| Part | Frequency - Transition | Transistor Type | Voltage - Collector Emitter Breakdown (Max) [Max] | Current - Collector Cutoff (Max) [Max] | Vce Saturation (Max) @ Ib, Ic | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Current - Collector (Ic) (Max) [Max] | Power - Max [Max] | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

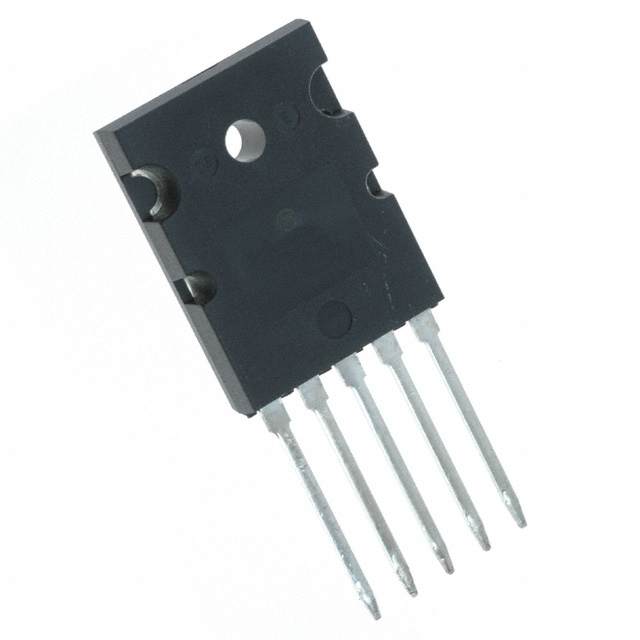

 ON Semiconductor | 35 MHz | NPN + Diode (Isolated) | 350 V | 100 µA | 1 V | TO-264-5 | 150 °C | -65 °C | 15 A | 230 W | Through Hole | TO-264 |
Key Features
• Thermally matched bias diode to eliminate thermal runaway
• Instant thermal bias tracking for superior sound quality
• Absolute Thermal Integrity
• High safe operating area
• Pb-Free Packages are Available
Description
AI
The Bipolar Power Transistor has been designed to eliminate thermal equilibrium lag time and bias trimming in audio amplifier applications. It can also be used in other applications as a transistor die protection device.
