3103-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Length - Above Flange | Length - Above Flange | Contact Finish Thickness | Contact Finish Thickness | Insulation | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Board Thickness | Board Thickness | Length - Overall [x] | Length - Overall [x] | Contact Material | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Style | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

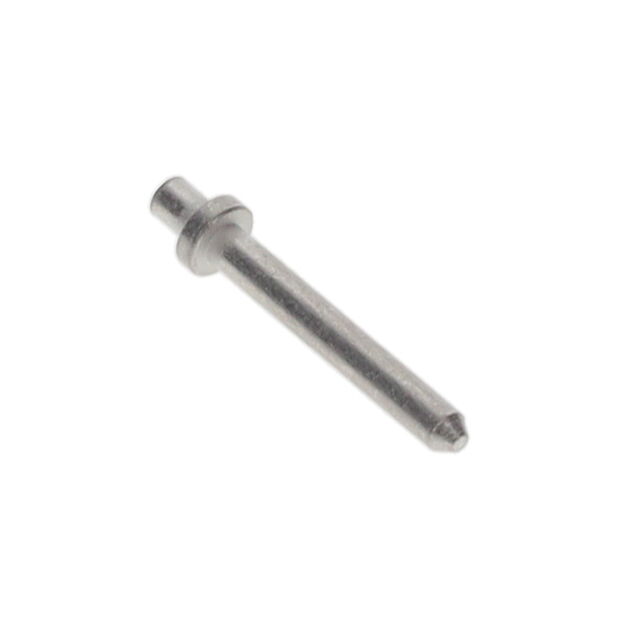

 Mill-Max Manufacturing Corp. | Swage | 0.051 " | 1.3 mm | 0.3 in | 7.62 mm | 200 Áin | 5.08 Ám | Non-Insulated | 0.04 in | 1.02 mm | 0.79 mm | 0.031 in | 0.371 in | 9.42 mm | Brass Alloy | Tin | 0.043 in | 1.09 mm | Through Hole | 1.78 mm | 0.07 in | Single End | PC Pin |

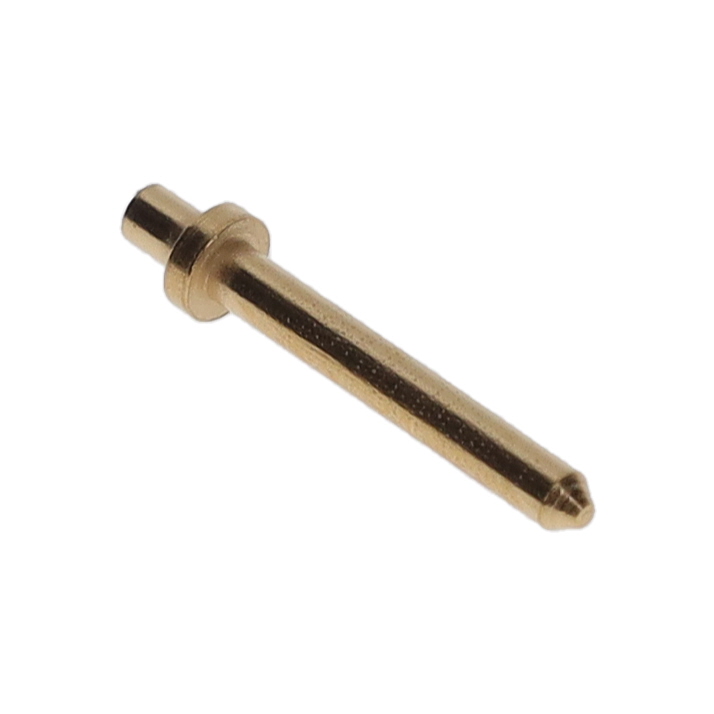

 Mill-Max Manufacturing Corp. | Swage | 0.051 " | 1.3 mm | 0.3 in | 7.62 mm | 50 µin | 1.27 µm | Non-Insulated | 0.04 in | 1.02 mm | 0.79 mm | 0.031 in | 0.371 in | 9.42 mm | Brass Alloy | Gold | 0.043 in | 1.09 mm | Through Hole | 1.77 mm | 0.07 in | Single End | PC Pin |
 Mill-Max Manufacturing Corp. | Swage | 0.051 " | 1.3 mm | 0.3 in | 7.62 mm | 20 µin | 0.51 µm | Non-Insulated | 0.04 in | 1.02 mm | 0.79 mm | 0.031 in | 0.371 in | 9.42 mm | Brass Alloy | Gold | 0.043 in | 1.09 mm | Through Hole | 1.77 mm | 0.07 in | Single End | PC Pin |
