9884MN Series
Manufacturer: Belden Inc.
Beta
⌘K

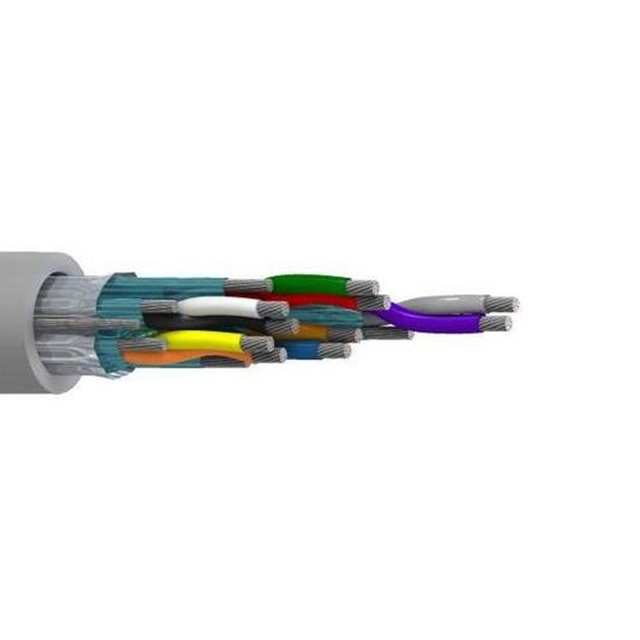

MULTI-PAIR 10CON 20AWG GRAY
| Part | Shield Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Length [x] | Length [x] | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Jacket (Insulation) Material | Cable Type | Usage | Wire Gauge | Features | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Ratings | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 80 °C | -20 ░C | 26 | 34 AWG | Copper Tinned | 100 ft | 30.5 m | Polypropylene (PP) | 8.23 mm | 0.324 " | 300 VDC | Poly-Vinyl Chloride (PVC) | Multi-Pair | Audio Control Instrumentation | 20 AWG | Drain Wire | Foil | 0.406 mm | 0.016 in | Gray | UL Style 2937 | 10 | ||
Belden Inc. | Aluminum | 100 % | 80 °C | -20 ░C | 26 | 34 AWG | Copper Tinned | Polypropylene (PP) | 8.23 mm | 0.324 " | 300 VDC | Poly-Vinyl Chloride (PVC) | Multi-Pair | Audio Control Instrumentation | 20 AWG | Drain Wire | Foil | 0.406 mm | 0.016 in | Yellow | UL Style 2937 | 10 | 304.8 m | 1000 ft |
