EEG-A2 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM 4000UF 20% 100V SCREW

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Lead Spacing	Lead Spacing	Capacitance	Applications	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Mounting Type	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Lifetime @ Temp.	Height - Seated (Max)	Height - Seated (Max) [Max]	Size / Dimension	Height - Seated (Max) [Max]

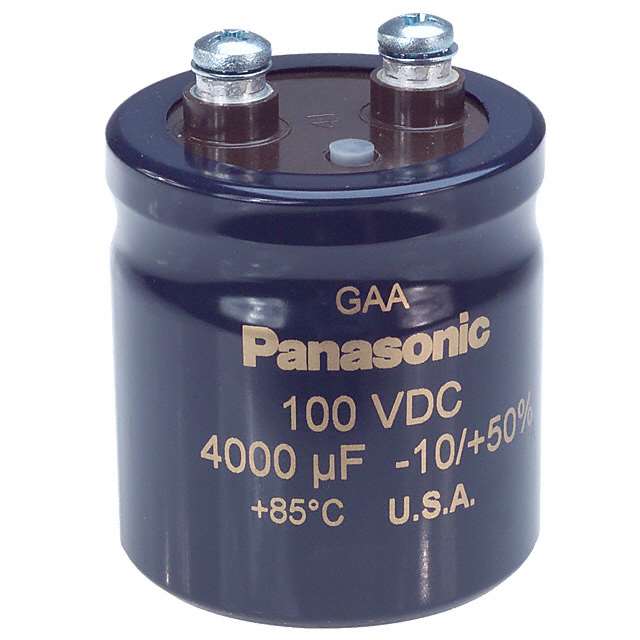

Panasonic Industrial Automation Sales EEG-A2A402FCE	Radial Can - Screw Terminals	85 °C	-40 °C	100 V	0.874 in	22.2 mm	4 mF	General Purpose	73 mOhm	2 in	50.8 mm	Polar	Chassis Mount	6.53 A	53.98 mm	2.125 in	20 %	3000 Hrs
Panasonic Industrial Automation Sales EEG-A2W102FHE	Radial Can - Screw Terminals	85 °C	-40 °C	450 V	0.874 in	22.2 mm	1000 µF	General Purpose	221 mOhm	2 in	50.8 mm	Polar	Chassis Mount	5.85 A	92.08 mm	3.625 in	20 %	3000 Hrs
Panasonic Industrial Automation Sales EEG-A2W312GPE	Radial Can - Screw Terminals	85 °C	-40 °C	450 V	1.126 in	28.6 mm		General Purpose	71 mOhm	2.5 in	2.5 "	Polar	Chassis Mount	11.18 A	142.88 mm	5.625 "	20 %	3000 Hrs

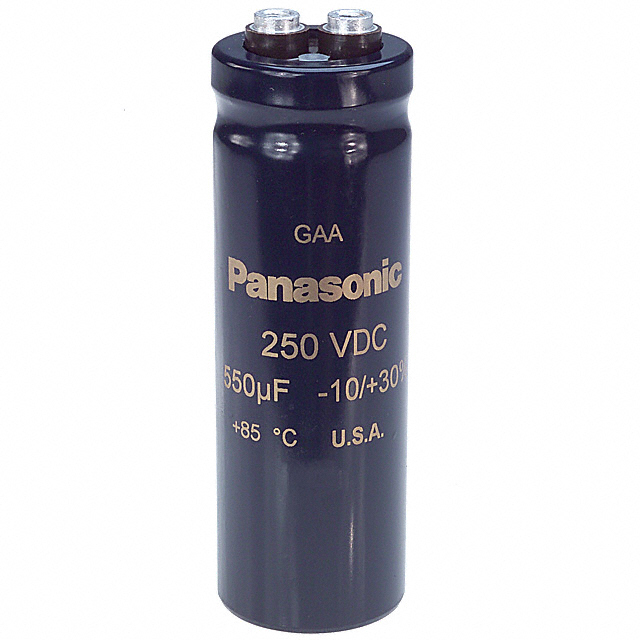

Panasonic Industrial Automation Sales EEG-A2E551CKE	Radial Can - Screw Terminals	85 °C	-40 °C	250 V	0.5 in	12.7 mm	550 µF	General Purpose	401 mOhm	1.375 "	34.93 mm	Polar	Chassis Mount				20 %	3000 Hrs	104.78 mm	4.125 "
Panasonic Industrial Automation Sales EEG-A2V562HLE	Radial Can - Screw Terminals	85 °C	-40 °C	350 V	1.252 in	31.8 mm	5.6 mF	General Purpose	39 mOhm	3 "		Polar	Chassis Mount	10.06 A			20 %	3000 Hrs		4.625 "	76.2 mm	117.48 mm
Panasonic Industrial Automation Sales EEG-A2W222GKE	Radial Can - Screw Terminals	85 °C	-40 °C	450 V	1.126 in	28.6 mm	2200 µF	General Purpose	100 mOhm	2.5 in	2.5 "	Polar	Chassis Mount	9.27 A			20 %	3000 Hrs	104.78 mm	4.125 "

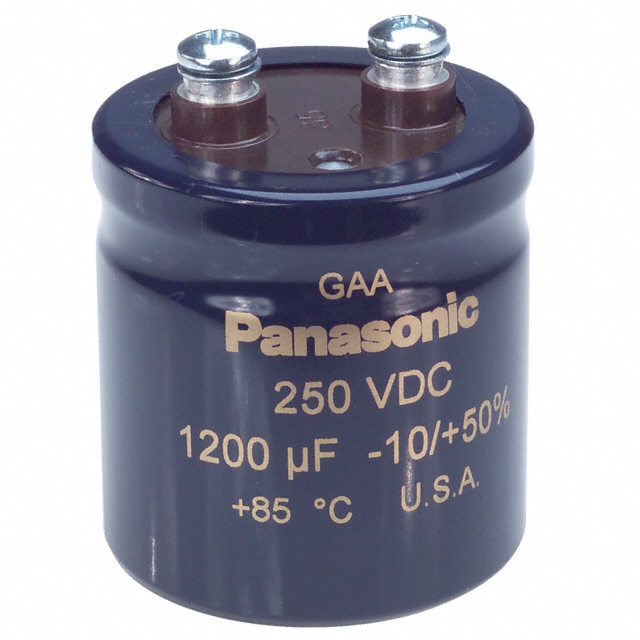

Panasonic Industrial Automation Sales EEG-A2E122FCE	Radial Can - Screw Terminals	85 °C	-40 °C	250 V	0.874 in	22.2 mm	1.2 mF	General Purpose	184 mOhm	2 in	50.8 mm	Polar	Chassis Mount	4.18 A	53.98 mm	2.125 in	20 %	3000 Hrs
Panasonic Industrial Automation Sales EEG-A2A103FHE	Radial Can - Screw Terminals	85 °C	-40 °C	100 V	0.874 in	22.2 mm	10000 µF	General Purpose	29 mOhm	2 in	50.8 mm	Polar	Chassis Mount	8.16 A	92.08 mm	3.625 in	20 %	3000 Hrs

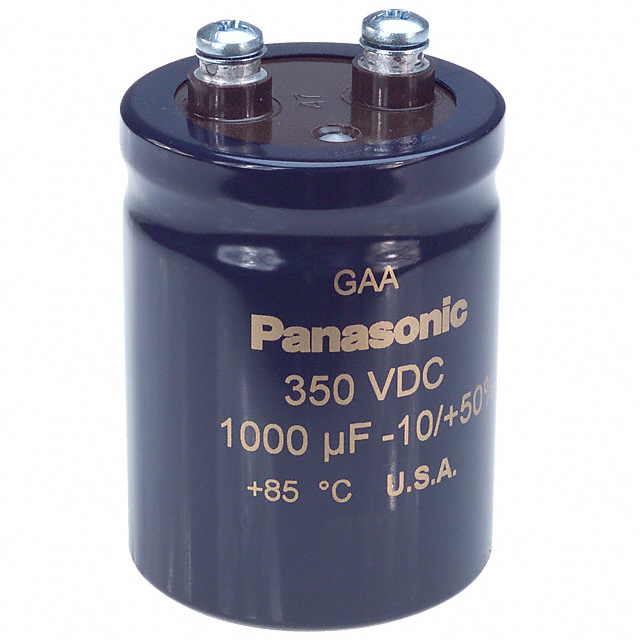

Panasonic Industrial Automation Sales EEG-A2V102FEE	Radial Can - Screw Terminals	85 °C	-40 °C	350 V	0.874 in	22.2 mm	1000 µF	General Purpose	221 mOhm	2 in	50.8 mm	Polar	Chassis Mount	4.11 A	66.68 mm	2.625 in	20 %	3000 Hrs
