19400220 Series
Manufacturer: HARTING
Beta
⌘K

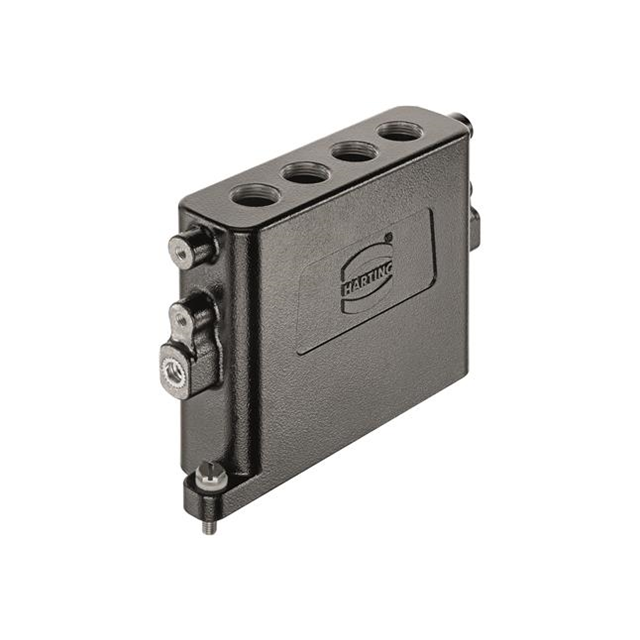

HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, ALUMINUM BODY, SCREW
| Part | Lock Location | Housing Material | Housing Color | Housing Finish | Thread Size | Size | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Style | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Connector Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Screw Locks on Hood | Aluminum Die Cast | Black | Powder Coated | M20 | 22HPR | IP66 IP68 IP69K | 125 °C | -40 C | Top Entry | 1.634 " | 4.508 in | 41.5 mm | 7.126 in | 114.5 mm | 181 mm | Hood | |||
 HARTING | Screw Locks on Hood | Aluminum Die Cast | Black | Powder Coated | M20 | 22HPR | IP66 IP68 IP69K | 125 °C | -40 C | Top Entry | 1.634 " | 4.843 " | 7.126 in | Hood | 123 mm | 41.5 mm | 181 mm |
