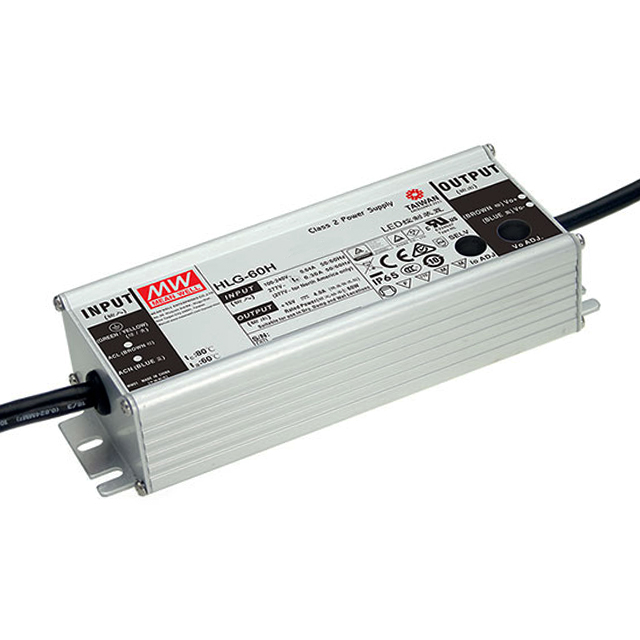

HLG-60H Series

Catalog

LED DVR CC/CV ACDC 21.6-36V 1.7A

Part	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Topology	Efficiency	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Features	Approval Agency	Power (Watts)	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Output [Min]	Voltage - Output [Max]	Number of Outputs	Voltage - Isolation	Dimming	Ratings	Termination Style	Voltage - Output	Voltage - Output [Max]
MEAN WELL USA Inc. HLG-60H-36B	Chassis Mount	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	AC DC Converter	90 %	305 VAC	80 °C	-40 C	Constant Current Voltage	OCP OTP OVP SCP	CB CCC CE cURus PSE RCM TUV UR	61 W	90 VAC	1.7 A	21.6 V	36 V	1	3750 VDC	Analog PWM	IP67	Wire Leads

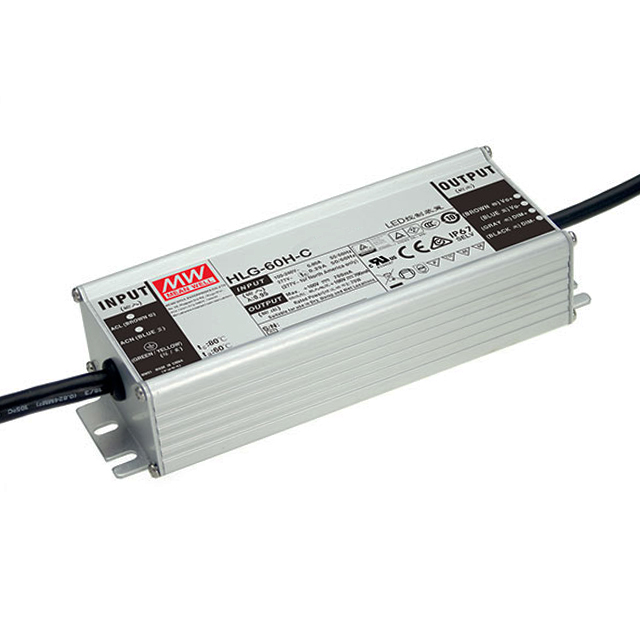

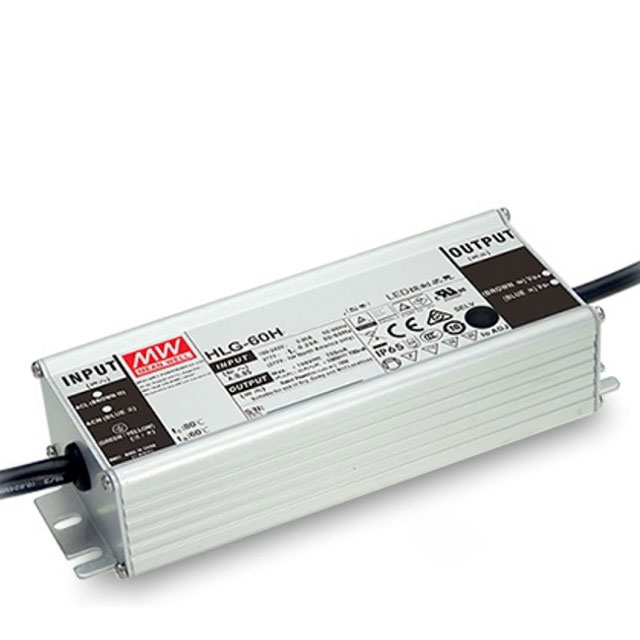

MEAN WELL USA Inc. HLG-60H-C700A	Chassis Mount	5.8 in	61.5 mm	2.42 in	147.2 mm	36 mm	1.42 "	AC DC Converter	90.5 %	305 VAC	80 °C	-40 C	Constant Current	OCP OTP OVP SCP	CB CCC CE cURus PSE RCM TUV	70 W	90 VAC	700 mA	50 V	100 VDC	1	3750 VDC		IP65	Wire Leads
MEAN WELL USA Inc. HLG-60H-30	Chassis Mount	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	AC DC Converter	90 %	305 VAC	80 °C	-40 C	Constant Current Voltage	OCP OTP OVP SCP	CB CCC CE cURus PSE RCM TUV UR	60 W	90 VAC	2 A			1	3750 VDC		IP67	Wire Leads
MEAN WELL USA Inc. HLG-60H-15AB	Chassis Mount	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	AC DC Converter	87.5 %	305 VAC	80 °C	-40 C	Constant Current Voltage	OCP OTP OVP SCP	CB CCC CE cURus EAC KC PSE RCM TUV	60 W	90 VAC	4 A			1	3750 VDC	Analog PWM	IP65	Wire Leads	15 V
MEAN WELL USA Inc. HLG-60H-C350A	Chassis Mount	5.8 in	61.5 mm	2.42 in	147.2 mm	36 mm	1.42 "	AC DC Converter	91 %	305 VAC	80 °C	-40 C	Constant Current	OCP OTP OVP SCP	CB CCC CE cURus PSE RCM TUV	70 W	90 VAC	350 mA	100 V		1	3750 VDC		IP65	Wire Leads		200 V
MEAN WELL USA Inc. HLG-60H-36AB	Chassis Mount	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	AC DC Converter	90 %	305 VAC	80 °C	-40 C	Constant Current Voltage	OCP OTP OVP SCP	CB CCC CE cURus EAC KC PSE RCM TUV	61 W	90 VAC	1.7 A			1	3750 VDC	Analog PWM	IP65	Wire Leads	36 V
MEAN WELL USA Inc. HLG-60H-42A	Chassis Mount	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	AC DC Converter	90 %	305 VAC	80 °C	-40 C	Constant Current Voltage	OCP OTP OVP SCP	CB CCC CE cURus PSE RCM TUV UR	61 W	90 VAC	1.45 A	40 VDC	46 V	1	3750 VDC		IP65	Wire Leads
MEAN WELL USA Inc. HLG-60H-54A	Chassis Mount	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	AC DC Converter	90.5 %	305 VAC	80 °C	-40 C	Constant Current Voltage	OCP OTP OVP SCP	CB CCC CE cURus PSE RCM TUV UR	62 W	90 VAC	1.15 A	49 V	58 V	1	3750 VDC		IP65	Wire Leads
MEAN WELL USA Inc. HLG-60H-54AB	Chassis Mount	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	AC DC Converter	90.5 %	305 VAC	80 °C	-40 C	Constant Current Voltage	OCP OTP OVP SCP	CB CCC CE cURus EAC KC PSE RCM TUV	62 W	90 VAC	1.15 A			1	3750 VDC		IP65	Wire Leads	54 V
MEAN WELL USA Inc. HLG-60H-30A	Chassis Mount	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	AC DC Converter	90 %	305 VAC	80 °C	-40 C	Constant Current Voltage	OCP OTP OVP SCP	CB CCC CE cURus PSE RCM TUV UR	60 W	90 VAC	2 A	27 V	33 V	1	3750 VDC		IP65	Wire Leads
