PPTC092 Series

Catalog

CONN HDR 18POS 0.1 TIN PCB R/A

Part	Contact Shape	Contact Material	Insulation Material	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Post	Insulation Color	Termination	Fastening Type	Number of Positions	Number of Rows [custom]	Connector Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height

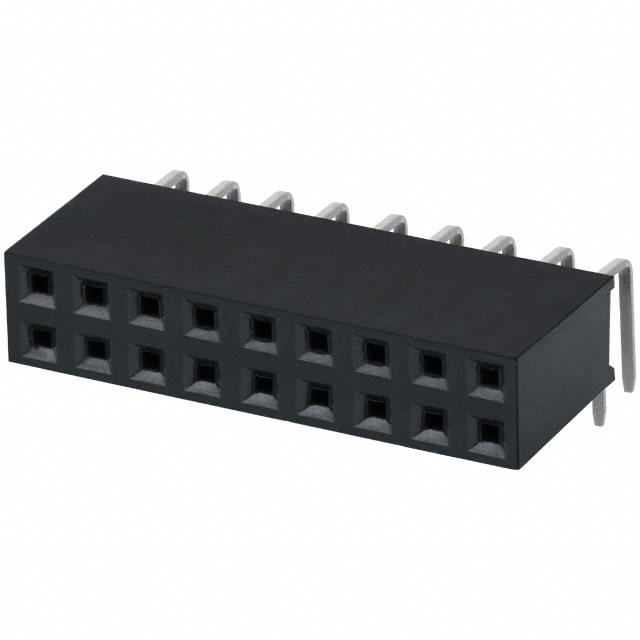

Sullins Connector Solutions PPTC092LJBN	Square	Phosphor Bronze	Polyester	0.2 in	5.08 mm	-40 C	105 ░C	250 V	UL94 V-0	3 A	Tin	Black	Solder	Push-Pull	18	2	Header	All	0.124 in	3.15 mm	0.1 "	2.54 mm	0.1 in	2.54 mm	Female Socket	Right Angle Through Hole

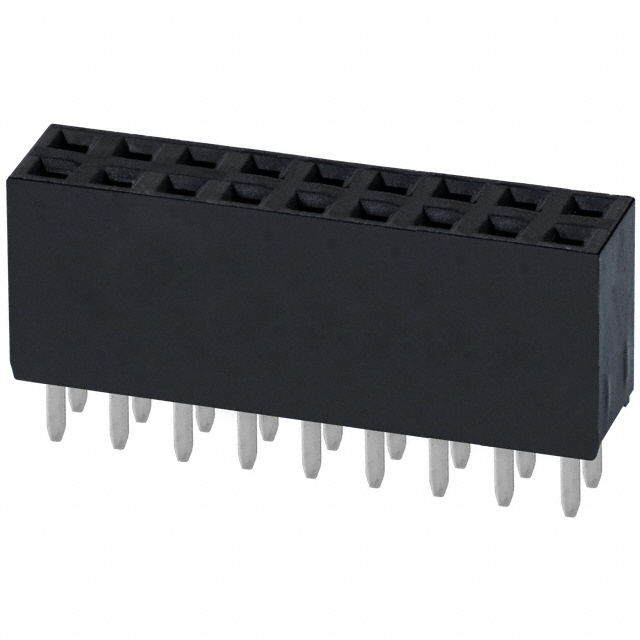

Sullins Connector Solutions PPTC092LFBN-RC	Square	Phosphor Bronze	Polyester			-40 C	105 ░C	250 V	UL94 V-0	3 A	Tin	Black	Solder	Push-Pull	18	2	Header	All			0.1 "	2.54 mm	0.1 in	2.54 mm	Female Socket	Through Hole	0.126 "	3.2 mm	0.335 "	8.51 mm
