HF115AC Series

Manufacturer: Bergquist

Catalog

THERM PAD 21.84MMX18.79MM W/ADH

Part	Shelf Life	Shelf Life Start	Material	Usage	Thermal Conductivity	Shape	Outline [y]	Outline [x]	Thermal Resistivity	Color	Thickness	Thickness	Adhesive	Backing, Carrier [custom]	Backing, Carrier [custom]

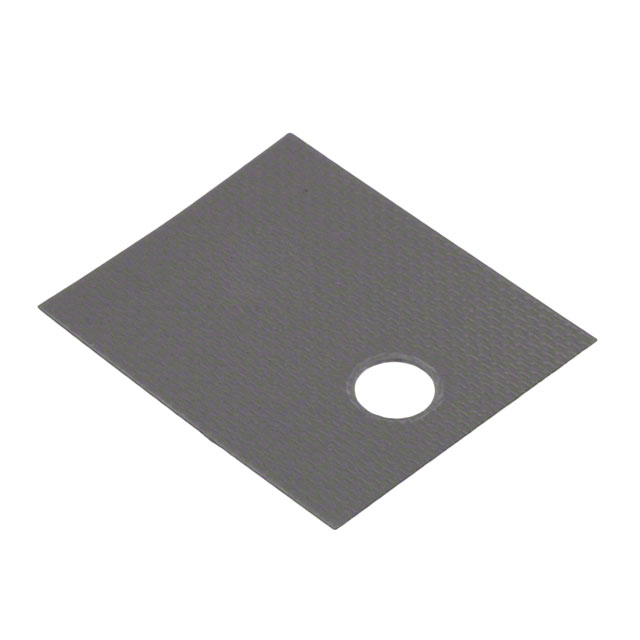

Bergquist HF115AC-0.0055-AC-90	12 Months	Date of Manufacture	Phase Change Compound	TO-218 TO-220 TO-247	0.8 W/m-K	Rectangular	18.79 mm	21.84 mm	0.35 °C/W	Gray	0.14 mm	0.0055 in	Adhesive - One Side	Fiberglass	Fiberglass

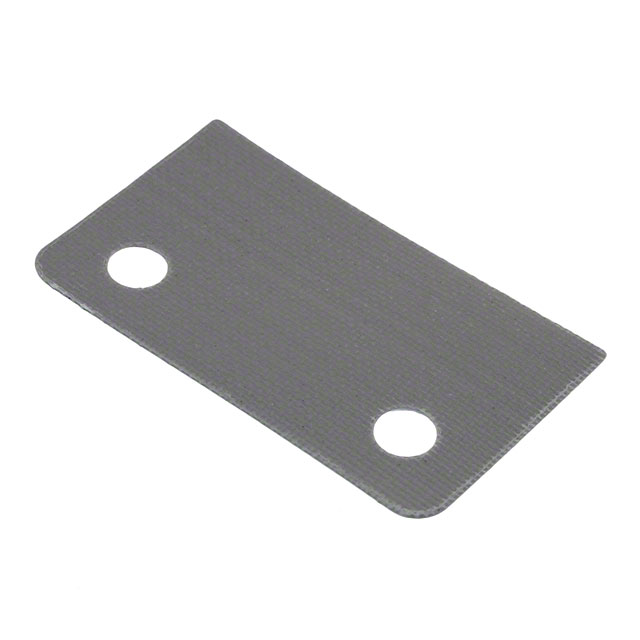

Bergquist HF115AC-0.0055-AC-105	12 Months	Date of Manufacture	Phase Change Compound	SIP	0.8 W/m-K	Rectangular	21.29 mm	36.83 mm	0.35 °C/W	Gray	0.14 mm	0.0055 in	Adhesive - One Side	Fiberglass	Fiberglass

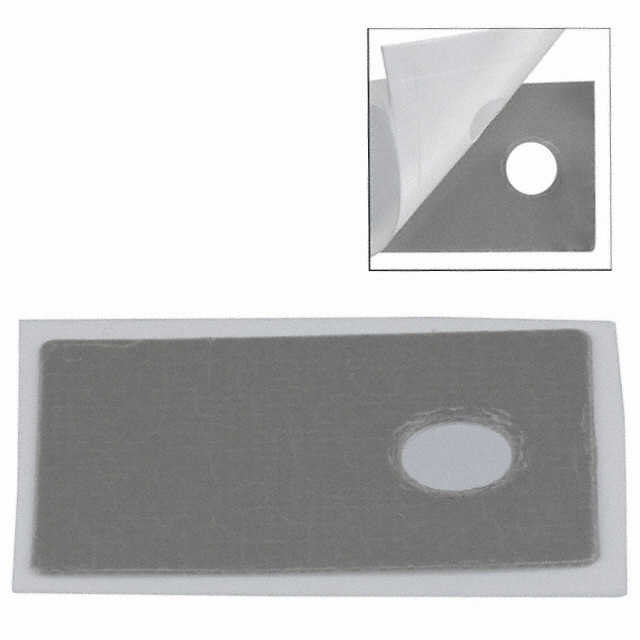

Bergquist HF115AC-0.0055-AC-58	12 Months	Date of Manufacture	Phase Change Compound	TO-220	0.8 W/m-K	Rectangular	12.7 mm	19.05 mm	0.35 °C/W	Gray	0.14 mm	0.0055 in	Adhesive - One Side	Fiberglass	Fiberglass
