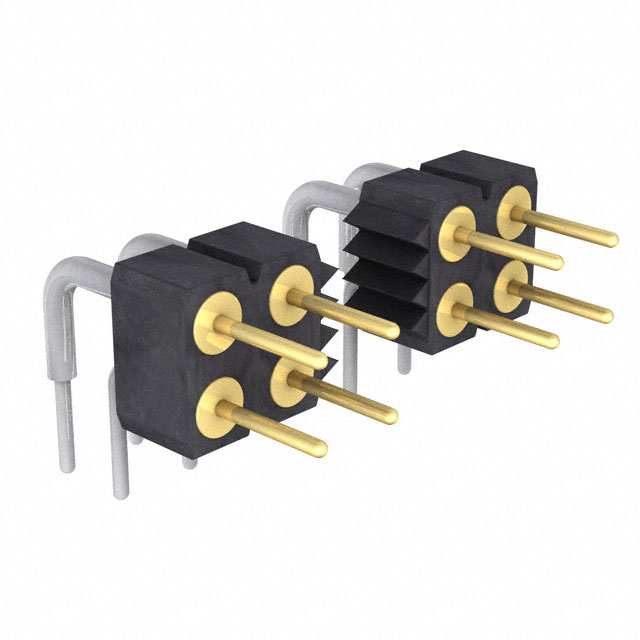

499-V3 Series

Manufacturer: Preci-Dip

Catalog

CONN HEADER R/A 66POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Shrouding	Fastening Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Connector Type	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Insulation Material	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish - Mating	Contact Shape	Number of Positions	Voltage Rating	Number of Positions [custom]
Preci-Dip 499-V3-266-10-009101	0.1 "	2.54 mm	Tin	Unshrouded	Push-Pull	29.5 µin	0.75 µm	Header	4 mm	0.157 in	UL94 V-0	2	0.2 in	5.08 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	0.1 in	2.54 mm	Male Pin	Brass	0.126 "	3.2 mm	Solder	3 A	-55 C	125 °C	Right Angle Through Hole	Gold	Circular	66	150 VDC
Preci-Dip 499-V3-234-10-009101	0.1 "	2.54 mm	Tin	Unshrouded	Push-Pull	29.5 µin	0.75 µm	Header	4 mm	0.157 in	UL94 V-0	2	0.2 in	5.08 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	0.1 in	2.54 mm	Male Pin	Brass	0.126 "	3.2 mm	Solder	3 A	-55 C	125 °C	Right Angle Through Hole	Gold	Circular		150 VDC	34
Preci-Dip 499-V3-232-10-009101	0.1 "	2.54 mm	Tin	Unshrouded	Push-Pull	29.5 µin	0.75 µm	Header	4 mm	0.157 in	UL94 V-0	2	0.2 in	5.08 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	0.1 in	2.54 mm	Male Pin	Brass	0.126 "	3.2 mm	Solder	3 A	-55 C	125 °C	Right Angle Through Hole	Gold	Circular		150 VDC
Preci-Dip 499-V3-222-10-009101	0.1 "	2.54 mm	Tin	Unshrouded	Push-Pull	29.5 µin	0.75 µm	Header	4 mm	0.157 in	UL94 V-0	2	0.2 in	5.08 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	0.1 in	2.54 mm	Male Pin	Brass	0.126 "	3.2 mm	Solder	3 A	-55 C	125 °C	Right Angle Through Hole	Gold	Circular	22	150 VDC
Preci-Dip 499-V3-230-10-009101	0.1 "	2.54 mm	Tin	Unshrouded	Push-Pull	29.5 µin	0.75 µm	Header	4 mm	0.157 in	UL94 V-0	2	0.2 in	5.08 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	0.1 in	2.54 mm	Male Pin	Brass	0.126 "	3.2 mm	Solder	3 A	-55 C	125 °C	Right Angle Through Hole	Gold	Circular	30	150 VDC
Preci-Dip 499-V3-206-10-009101	0.1 "	2.54 mm	Tin	Unshrouded	Push-Pull	29.5 µin	0.75 µm	Header	4 mm	0.157 in	UL94 V-0	2	0.2 in	5.08 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	0.1 in	2.54 mm	Male Pin	Brass	0.126 "	3.2 mm	Solder	3 A	-55 C	125 °C	Right Angle Through Hole	Gold	Circular	6	150 VDC
Preci-Dip 499-V3-254-10-009101	0.1 "	2.54 mm	Tin	Unshrouded	Push-Pull	29.5 µin	0.75 µm	Header	4 mm	0.157 in	UL94 V-0	2	0.2 in	5.08 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	0.1 in	2.54 mm	Male Pin	Brass	0.126 "	3.2 mm	Solder	3 A	-55 C	125 °C	Right Angle Through Hole	Gold	Circular	54	150 VDC
Preci-Dip 499-V3-244-10-009101	0.1 "	2.54 mm	Tin	Unshrouded	Push-Pull	29.5 µin	0.75 µm	Header	4 mm	0.157 in	UL94 V-0	2	0.2 in	5.08 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	0.1 in	2.54 mm	Male Pin	Brass	0.126 "	3.2 mm	Solder	3 A	-55 C	125 °C	Right Angle Through Hole	Gold	Circular	44	150 VDC
Preci-Dip 499-V3-250-10-009101	0.1 "	2.54 mm	Tin	Unshrouded	Push-Pull	29.5 µin	0.75 µm	Header	4 mm	0.157 in	UL94 V-0	2	0.2 in	5.08 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	0.1 in	2.54 mm	Male Pin	Brass	0.126 "	3.2 mm	Solder	3 A	-55 C	125 °C	Right Angle Through Hole	Gold	Circular	50	150 VDC
Preci-Dip 499-V3-228-10-009101	0.1 "	2.54 mm	Tin	Unshrouded	Push-Pull	29.5 µin	0.75 µm	Header	4 mm	0.157 in	UL94 V-0	2	0.2 in	5.08 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	0.1 in	2.54 mm	Male Pin	Brass	0.126 "	3.2 mm	Solder	3 A	-55 C	125 °C	Right Angle Through Hole	Gold	Circular	28	150 VDC
