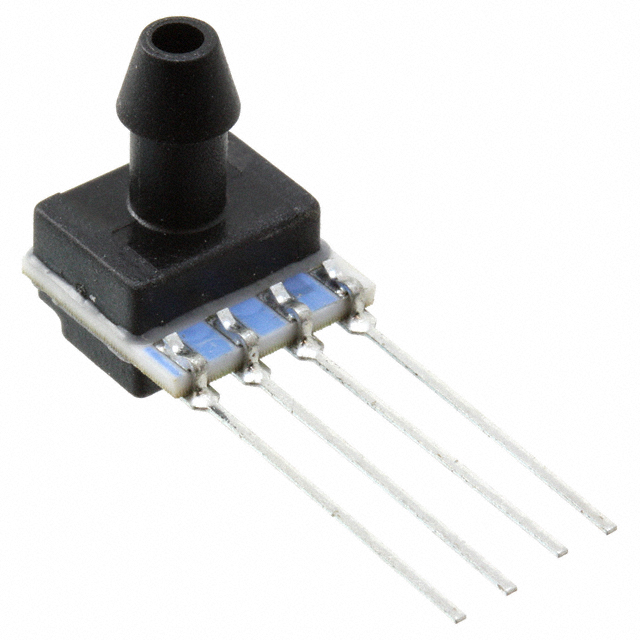

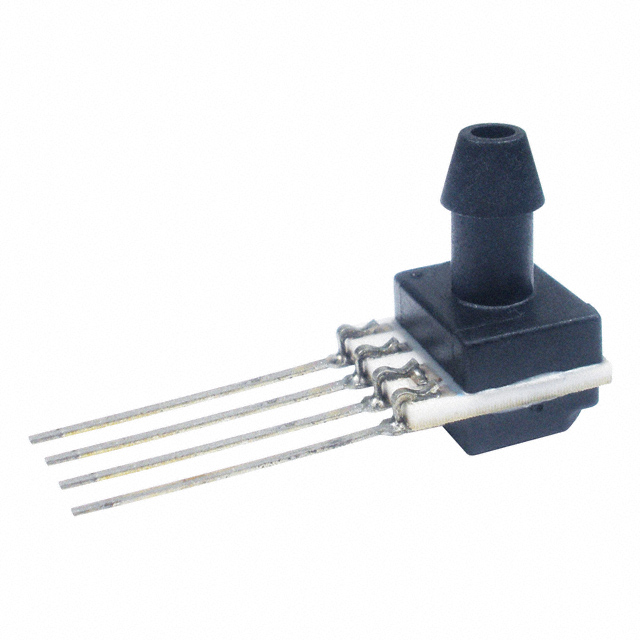

HSCSANN Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 60PSIA 0.19" 12BIT 4SIP

Part	Port Size	Port Size	Output	Port Style	Supplier Device Package	Output Type	Accuracy	Mounting Type	Operating Pressure	Operating Pressure	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Features	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure [custom]	Operating Pressure [custom]	Output [Min]	Output [Max]	Pressure Type	Maximum Pressure	Maximum Pressure
Honeywell Sensing and Productivity Solutions HSCSANN060PA3A5	4.93 mm	0.19 "	12 b	Barbed	4-SIP	I2C	0.25 %	Through Hole	60 PSI	413.69 kPa	Board Mount	4.75 V	5.25 V	Amplified Output Temperature Compensated	PC Pin	85 °C	-20 C	4-SIP Side Port	120 PSI	827.37 kPa
Honeywell Sensing and Productivity Solutions HSCSANN015PA2A3	4.93 mm	0.19 "	12 b	Barbed	4-SIP	I2C	0.25 %	Through Hole			Board Mount	3 V	3.6 V	Amplified Output Temperature Compensated	PC Pin	85 °C	-20 C	4-SIP Side Port	30 PSI	206.84 kPa	15 PSI	103.42 kPa
Honeywell Sensing and Productivity Solutions HSCSANN010NGAA5	4.93 mm	0.19 "		Barbed	4-SIP	Analog Voltage	0.25 %	Through Hole	0.36 PSI	2.49 kPa	Board Mount	4.95 V	5.05 V	Amplified Output Temperature Compensated	PC Pin	85 °C	-20 C	4-SIP Side Port	10.84 PSI	74.75 kPa			0.5 V	4.5 V	Vented Gauge
Honeywell Sensing and Productivity Solutions HSCSANN150PA4A5	4.93 mm	0.19 "	12 b	Barbed	4-SIP	I2C	0.25 %	Through Hole	150 PSI	1034.21 kPa	Board Mount	4.75 V	5.25 V	Amplified Output Temperature Compensated	PC Pin	85 °C	-20 C	4-SIP Side Port	250 PSI	1723.69 kPa
Honeywell Sensing and Productivity Solutions HSCSANN015PAAA5	4.93 mm	0.19 "		Barbed	4-SIP	Analog Voltage	0.25 %	Through Hole			Board Mount	4.75 V	5.25 V	Amplified Output Temperature Compensated	PC Pin	85 °C	-20 C	4-SIP Side Port	30 PSI	206.84 kPa	15 PSI	103.42 kPa	0.5 V	4.5 V

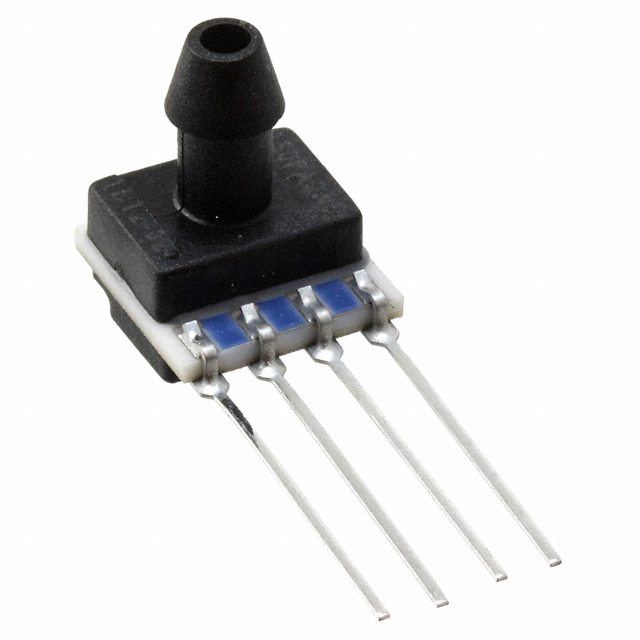

Honeywell Sensing and Productivity Solutions HSCSANN150PA2A5	4.93 mm	0.19 "	12 b	Barbed	4-SIP	I2C	0.25 %	Through Hole	150 PSI	1034.21 kPa	Board Mount	4.75 V	5.25 V	Amplified Output Temperature Compensated	PC Pin	85 °C	-20 C	4-SIP Side Port	250 PSI	1723.69 kPa
Honeywell Sensing and Productivity Solutions HSCSANN015PGAA3	4.93 mm	0.19 "		Barbed	4-SIP	Analog Voltage	0.25 %	Through Hole			Board Mount	3 V	3.6 V	Amplified Output Temperature Compensated	PC Pin	85 °C	-20 C	4-SIP Side Port	30 PSI	206.84 kPa	15 PSI	103.42 kPa	0.33 V	2.97 V	Vented Gauge

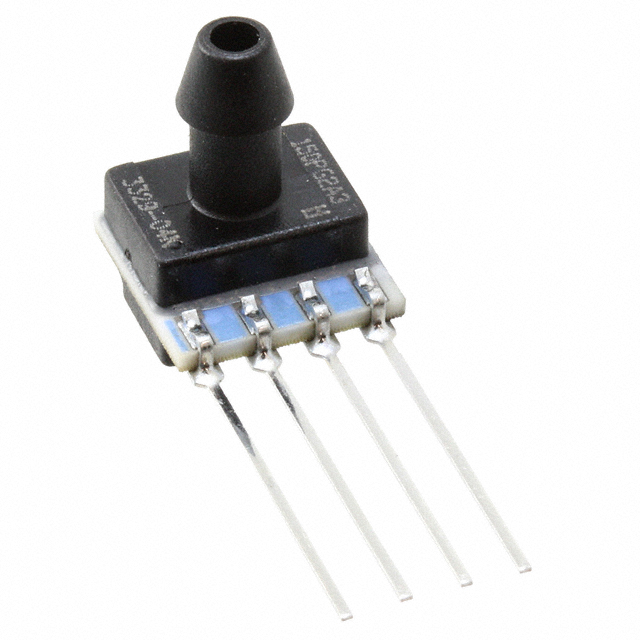

Honeywell Sensing and Productivity Solutions HSCSANN150PG2A3	4.93 mm	0.19 "	12 b	Barbed	4-SIP	I2C	0.25 %	Through Hole	150 PSI	1034.21 kPa	Board Mount	3 V	3.6 V	Amplified Output Temperature Compensated	PC Pin	85 °C	-20 C	4-SIP Side Port	250 PSI	1723.69 kPa					Vented Gauge
Honeywell Sensing and Productivity Solutions HSCSANN005PD3A3	4.93 mm	0.19 "	12 b	Barbed	4-SIP	I2C	0.25 %	Through Hole	5 PSI	34.47 kPa	Board Mount	3 V	3.6 V	Amplified Output Temperature Compensated	PC Pin	85 °C	-20 C	4-SIP Side Port							Differential	±30PSI	±206.84kPa
