503110 Series

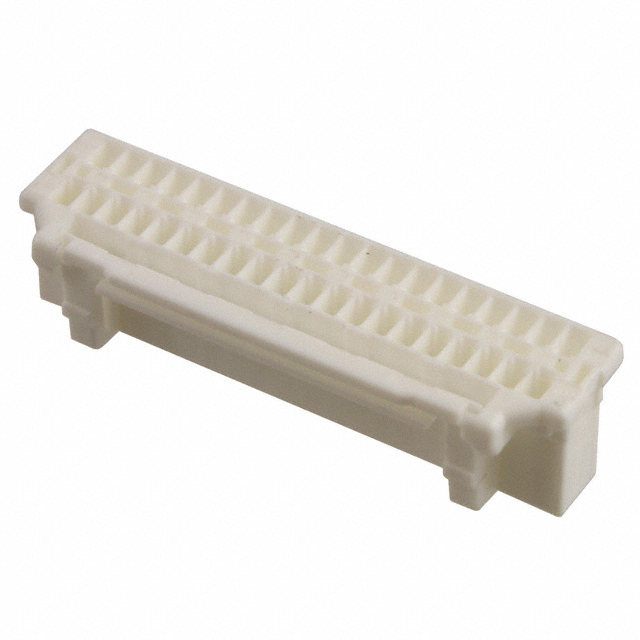

1.25mm Pitch Duo-Clasp Wire-to-Board Housing, Dual Row, Positive Lock, 40 Circuits, White
Manufacturer: Molex
Catalog
1.25mm Pitch Duo-Clasp Wire-to-Board Housing, Dual Row, Positive Lock, 40 Circuits, White
Beta
⌘K
1.25mm Pitch Duo-Clasp Wire-to-Board Housing, Dual Row, Positive Lock, 40 Circuits, White
1.25mm Pitch Duo-Clasp Wire-to-Board Housing, Dual Row, Positive Lock, 40 Circuits, White
1.25mm Pitch Duo-Clasp Wire-to-Board Housing, Dual Row, Positive Lock, 40 Circuits, White
| Part | Note | Contact Type | Pitch | Pitch | Number of Positions | Connector Type | Mounting Type | Fastening Type | Number of Rows [custom] | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Termination | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Contacts Not Included | Male Pin | 0.049 in | 1.25 mm | 30 | Plug | Free Hanging (In-Line) | Detent Lock | 2 | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Crimp | White |
 Molex | Contacts Not Included | Male Pin | 0.049 in | 1.25 mm | 20 | Plug | Free Hanging (In-Line) | Detent Lock | 2 | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Crimp | White |
 Molex | Contacts Not Included | Male Pin | 0.049 in | 1.25 mm | 40 | Plug | Free Hanging (In-Line) | Detent Lock | 2 | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Crimp | White |
