QFWB-65 Series
Manufacturer: Qualtek
Beta
⌘K

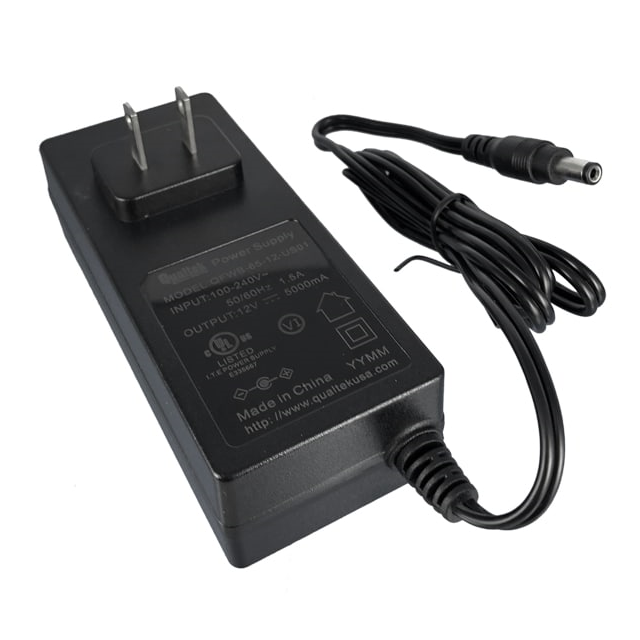

AC/DC WALL MOUNT ADAPTER 12V 60W
| Part | Weight [custom] | Weight [custom] | Approval Agency | Polarization | Input Type | Voltage - Input [Min] | Voltage - Input [Max] | Form | Efficiency | Cord Length | Cord Length | Operating Temperature [Max] | Operating Temperature [Min] | Region Utilized | Input Connector | Output Connector [x] | Output Connector [diameter] | Output Connector | Applications | Voltage - Output | No Load Power Consumption | Power (Watts) | Current - Output (Max) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 0.662 lb | 300.28 g | cULus | Positive Center | Fixed Blade | 100 VAC | 240 VAC | Wall Mount | Level VI | 1.2 m | 47.2 in | 40 °C | 0 °C | North America | NEMA 1-15P | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | ITE (Commercial) | 12 V | 100 mW | 60 W | 5 A | 50.3 mm | 1.98 " | 1.32 in | 33.5 mm | 117.3 mm | 4.62 in |
