1634581 Series

Catalog

CONN D-SUB PLUG 15POS R/A SLDR

Part	Contact Material	Dielectric Material	Color	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Backset Spacing	Backset Spacing	Current Rating (Amps)	Features	Contact Finish	Contact Type	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Mounting Type	Flange Feature	Flange Feature	Connector Type	Shell Size, Connector Layout	Shell Material, Finish	Termination	Connector Style	Number of Positions

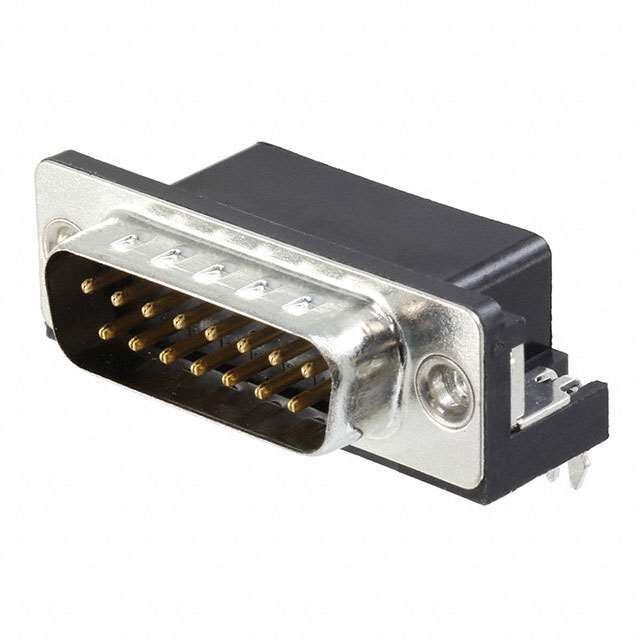

TE Connectivity AMP Connectors 1-1634581-2	Brass	Thermoplastic	Black	250 V	-55 C	105 ░C	0.411 in	10.43 mm	5 A	Board Lock Grounding Indents	Gold	Signal	UL94 V-0	0.38 µm	15 µin	2	Right Angle Through Hole	Housing/Shell	4-40	Plug Male Pins	2	Nickel Plated Steel	Solder	D-Sub	15
TE Connectivity AMP Connectors 3-1634581-2	Brass	Thermoplastic	Black	250 V	-55 C	105 ░C	0.411 in	10.43 mm	5 A	Board Lock Grounding Indents	Gold	Signal	UL94 V-0	0.38 µm	15 µin	2	Right Angle Through Hole	4-40 Mating Side Female Screwlock		Plug Male Pins	2	Nickel Plated Steel	Solder	D-Sub	15
