002210 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 13POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Insulation Material	Termination	Number of Positions	Style	Contact Length - Post [custom]	Contact Length - Post [custom]	Pitch - Mating	Pitch - Mating	Contact Shape	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Shrouding	Fastening Type	Contact Finish - Post	Mounting Type	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Connector Type	Insulation Color	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Contact Type	Contact Length - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post	Contact Length - Post

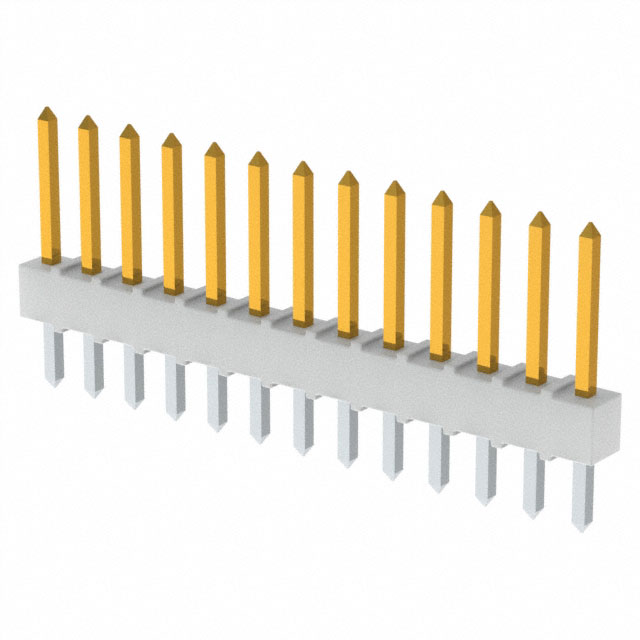

Molex 0022102131	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)	Solder	13	Board to Board Cable	0.135 in	3.43 mm	0.1 "	2.54 mm	Square	All	7.49 mm	0.295 in	Unshrouded	Push-Pull	Tin	Through Hole	1	0.56 in	14.22 mm	0.51 µm	20 µin	UL94 V-0	Header	White	Gold	0.13 in	3.3 mm	Male Pin

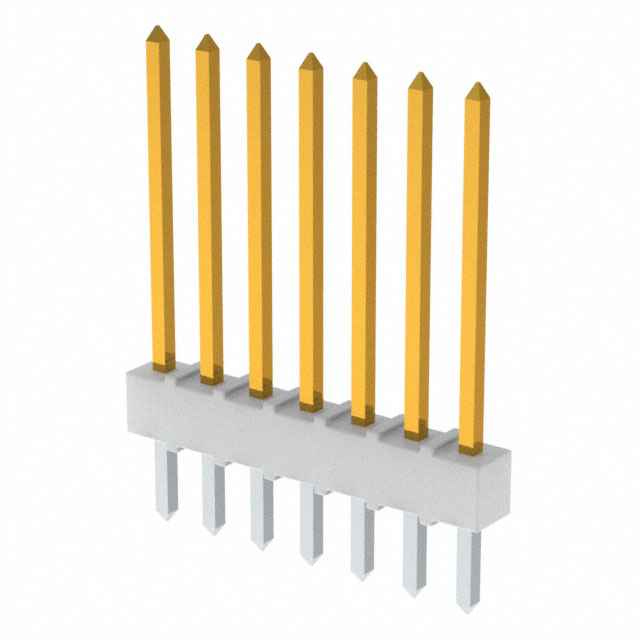

Molex 0022102074	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)	Solder	7	Board to Board Cable			0.1 "	2.54 mm	Square	All	14.22 mm		Unshrouded	Push-Pull	Tin	Through Hole	1			0.51 µm	20 µin	UL94 V-0	Header	White	Gold	0.13 in	3.3 mm	Male Pin	0.56 in	3.81 mm	0.15 in	21.34 mm	0.84 in

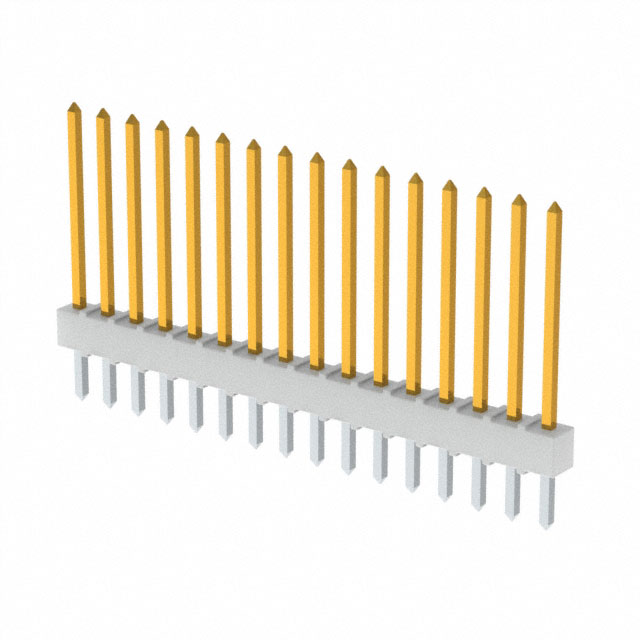

Molex 0022102164	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)	Solder	16	Board to Board Cable			0.1 "	2.54 mm	Square	All	14.22 mm		Unshrouded	Push-Pull	Tin	Through Hole	1			0.51 µm	20 µin	UL94 V-0	Header	White	Gold	0.13 in	3.3 mm	Male Pin	0.56 in	3.81 mm	0.15 in	21.34 mm	0.84 in

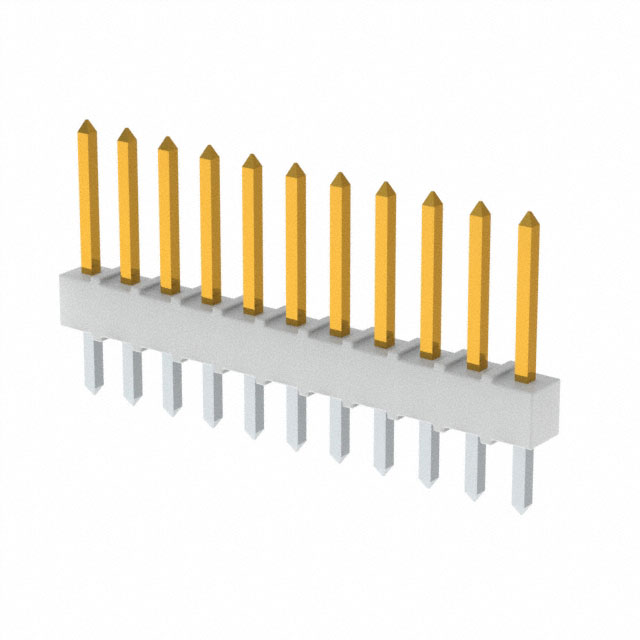

Molex 0022102111	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)	Solder	11	Board to Board Cable	0.135 in	3.43 mm	0.1 "	2.54 mm	Square	All	7.49 mm	0.295 in	Unshrouded	Push-Pull	Tin	Through Hole	1	0.56 in	14.22 mm	0.51 µm	20 µin	UL94 V-0	Header	White	Gold	0.13 in	3.3 mm	Male Pin

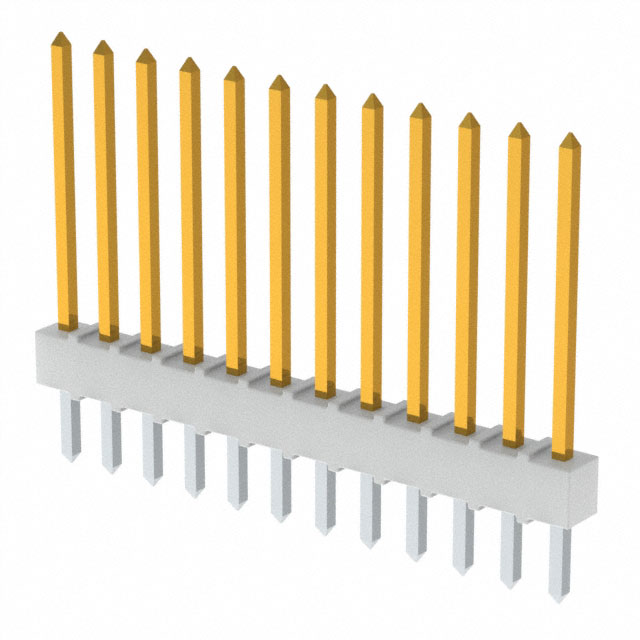

Molex 0022102124	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)	Solder	12	Board to Board Cable			0.1 "	2.54 mm	Square	All	14.22 mm		Unshrouded	Push-Pull	Tin	Through Hole	1			0.51 µm	20 µin	UL94 V-0	Header	White	Gold	0.13 in	3.3 mm	Male Pin	0.56 in	3.81 mm	0.15 in	21.34 mm	0.84 in

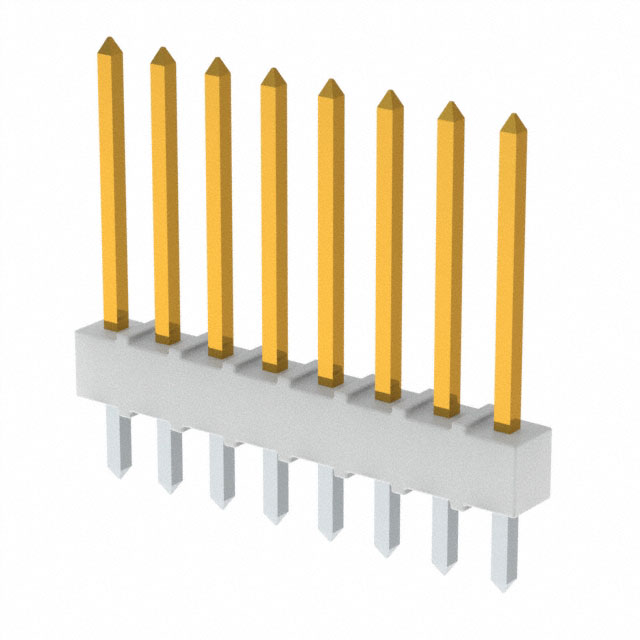

Molex 0022102082	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)	Solder	8	Board to Board Cable			0.1 "	2.54 mm	Square	All	11.05 mm	0.435 in	Unshrouded	Push-Pull	Tin	Through Hole	1	0.69 in	17.53 mm	0.51 µm	20 µin	UL94 V-0	Header	White	Gold	0.13 in	3.3 mm	Male Pin						0.125 in	3.18 mm

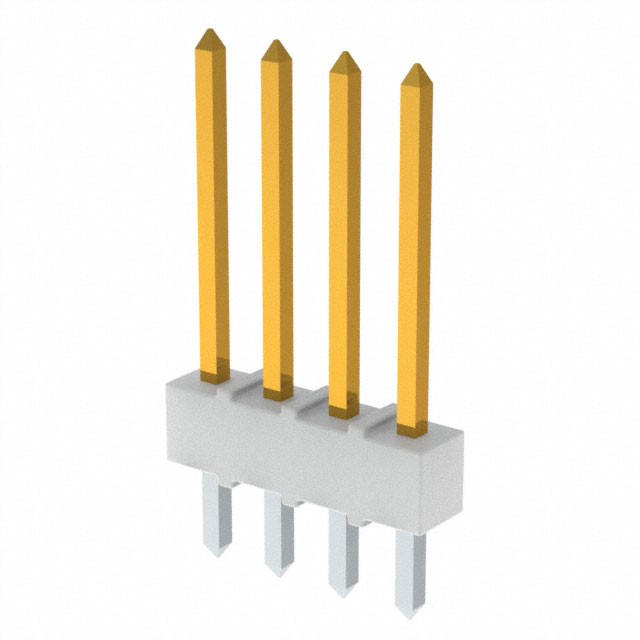

Molex 0022102042	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)	Solder	4	Board to Board Cable			0.1 "	2.54 mm	Square	All	11.05 mm	0.435 in	Unshrouded	Push-Pull	Tin	Through Hole	1	0.69 in	17.53 mm	0.51 µm	20 µin	UL94 V-0	Header	White	Gold	0.13 in	3.3 mm	Male Pin						0.125 in	3.18 mm

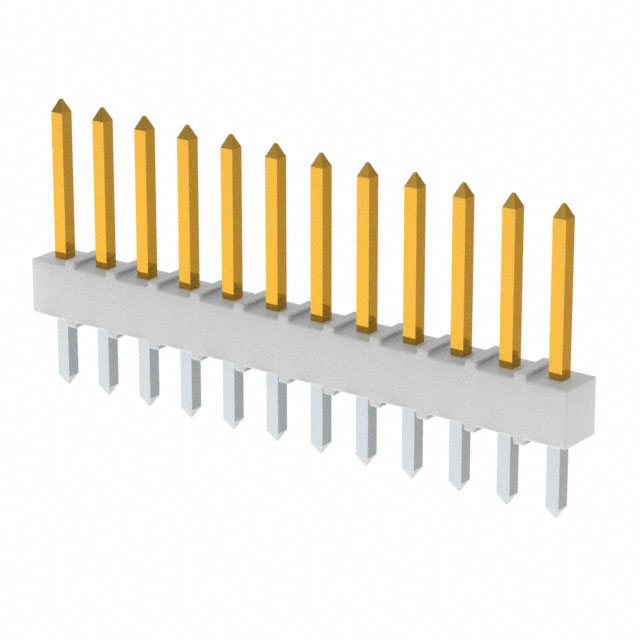

Molex 0022102121	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)	Solder	12	Board to Board Cable	0.135 in	3.43 mm	0.1 "	2.54 mm	Square	All	7.49 mm	0.295 in	Unshrouded	Push-Pull	Tin	Through Hole	1	0.56 in	14.22 mm	0.51 µm	20 µin	UL94 V-0	Header	White	Gold	0.13 in	3.3 mm	Male Pin

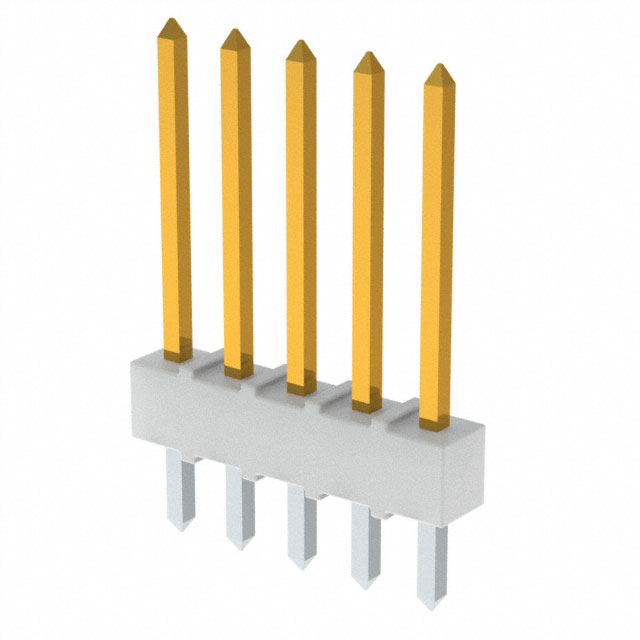

Molex 0022102052	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)	Solder	5	Board to Board Cable			0.1 "	2.54 mm	Square	All	11.05 mm	0.435 in	Unshrouded	Push-Pull	Tin	Through Hole	1	0.69 in	17.53 mm	0.51 µm	20 µin	UL94 V-0	Header	White	Gold	0.13 in	3.3 mm	Male Pin						0.125 in	3.18 mm
Molex 0022104028	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)	Solder	2	Board to Board Cable	0.135 in	3.43 mm	0.1 "	2.54 mm	Square	All	7.49 mm	0.295 in	Unshrouded	Push-Pull	Tin	Through Hole	1	0.56 in	14.22 mm	0.76 Ám	30 Áin	UL94 V-0	Header	White	Gold	0.13 in	3.3 mm	Male Pin
