23_N-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

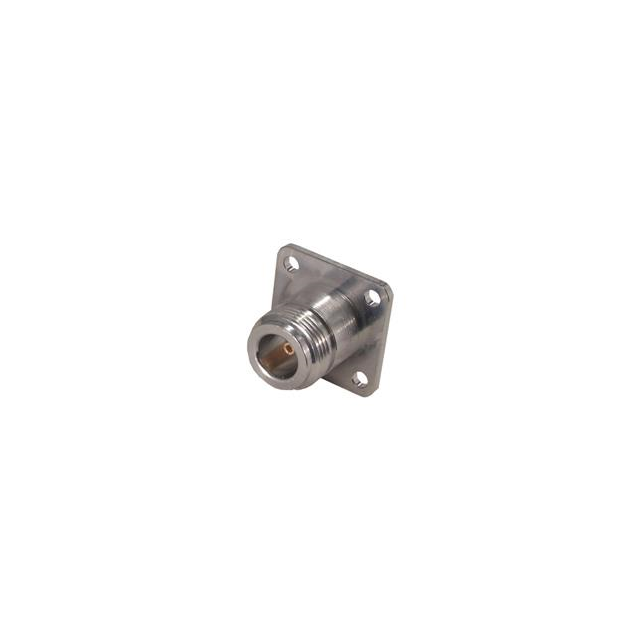

23_N-50-0-1/133_NE
| Part | Body Material | Dielectric Material | Body Finish | Voltage Rating | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Shield Termination | Impedance | Mounting Feature | Contact Termination | Connector Type | Fastening Type | Housing Color | Frequency - Max [Max] | Number of Ports | Mounting Type | Connector Style | Center Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | White Bronze | 1000 VDC | Gold | -65 ░C | 165 °C | 500 | Solder | 50 Ohms | Flange | Solder Cup | Female Socket Jack | Threaded | Silver | 11 GHz | 1 | Panel Mount | N Type | Bronze | |
 Huber+Suhner, Inc. | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | White Bronze | 1000 VDC | Gold | -65 ░C | 125 °C | 500 | Solder | 50 Ohms | Flange | Solder Tab | Female Socket Jack | Threaded | Silver | 11 GHz | 1 | Panel Mount | N Type | Beryllium Copper | |
 Huber+Suhner, Inc. | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | White Bronze | 1000 VDC | Gold | -65 ░C | 165 °C | 500 | Solder | 50 Ohms | Flange | Solder Cup | Female Socket Jack | Threaded | Silver | 11 GHz | 1 | Panel Mount | N Type | Beryllium Copper | |
 Huber+Suhner, Inc. | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | White Bronze | 1000 VDC | Gold | -65 ░C | 125 °C | 500 | Solder | 50 Ohms | Flange | Solder | Female Socket Jack | Threaded | Silver | 11 GHz | 1 | Panel Mount Through Hole | N Type | Beryllium Copper | Extended Insulation |
