SM07B-GH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

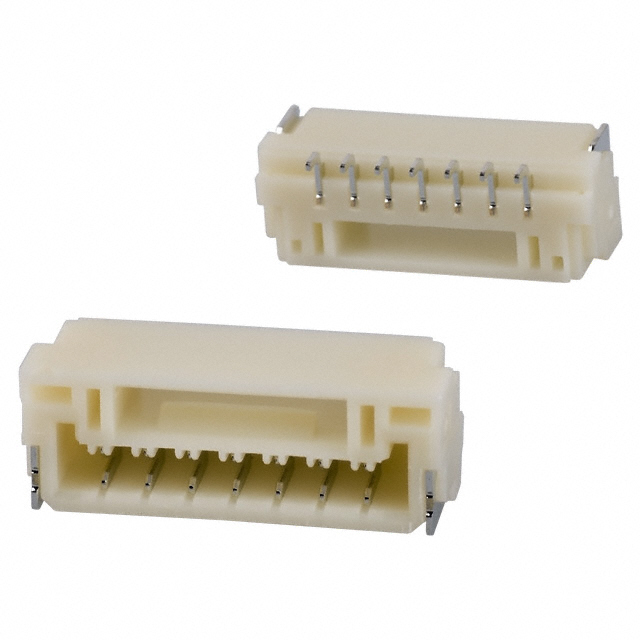

CONN HEADER SMD R/A 7POS 1.25MM
| Part | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Material Flammability Rating | Termination | Style | Voltage Rating | Connector Type | Contact Shape | Shrouding | Contact Type | Insulation Height | Insulation Height | Mounting Type | Contact Material | Fastening Type | Pitch - Mating | Pitch - Mating | Features | Contact Finish - Post | Insulation Color | Insulation Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 1 | 85 °C | -25 °C | All | UL94 V-0 | Solder | Board to Cable/Wire | 50 V | Header | Rectangular | Shrouded - 4 Wall | Outer Shroud Contact | 4.25 mm | 0.167 " | Right Angle Surface Mount | Phosphor Bronze | Locking Ramp | 0.049 in | 1.25 mm | Solder Retention | Tin | Natural | Nylon 9T Polyamide (PA9T) | 7 |
