1877847 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

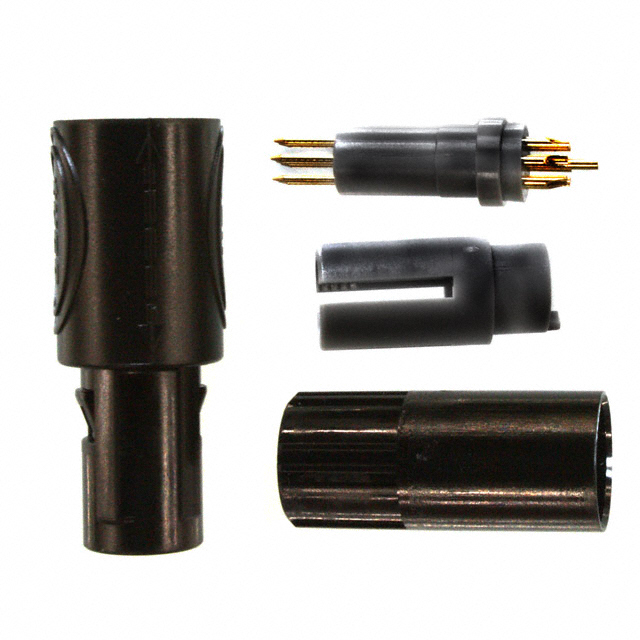

CONN PLUG MALE 7P GOLD SLDR CUP
| Part | Orientation | Cable Opening [custom] | Cable Opening [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Contact Material | Voltage Rating | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Current Rating (Amps) | Mounting Type | Number of Positions | Color | Applications | Insert Material | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 80 ° | 0.209 in 0.256 in | 5.3 mm 6.5 mm | -50 °C | 170 °C | Gold | Copper Alloy | 300 VAC | Plastic | 29.5 Áin | 0.75 Ám | Male Pins Plug | 5 A | Free Hanging (In-Line) | 7 | Black | Medical | Polyphenylene Sulfide (PPS) | Latch Lock |
TE Connectivity Raychem Cable Protection | 0 ° | 0.209 in 0.256 in | 5.3 mm 6.5 mm | -50 °C | 170 °C | Gold | Copper Alloy | 300 VAC | Plastic | 29.5 Áin | 0.75 Ám | Male Pins Plug | 5 A | Free Hanging (In-Line) | 7 | Gray Green | Medical | Polyphenylene Sulfide (PPS) | Latch Lock |
TE Connectivity Raychem Cable Protection | 80 ° | 0.209 in 0.256 in | 5.3 mm 6.5 mm | -50 °C | 170 °C | Gold | Copper Alloy | 300 VAC | Plastic | 29.5 Áin | 0.75 Ám | Male Pins Plug | 5 A | Free Hanging (In-Line) | 7 | Blue Gray | Medical | Polyphenylene Sulfide (PPS) | Latch Lock |
