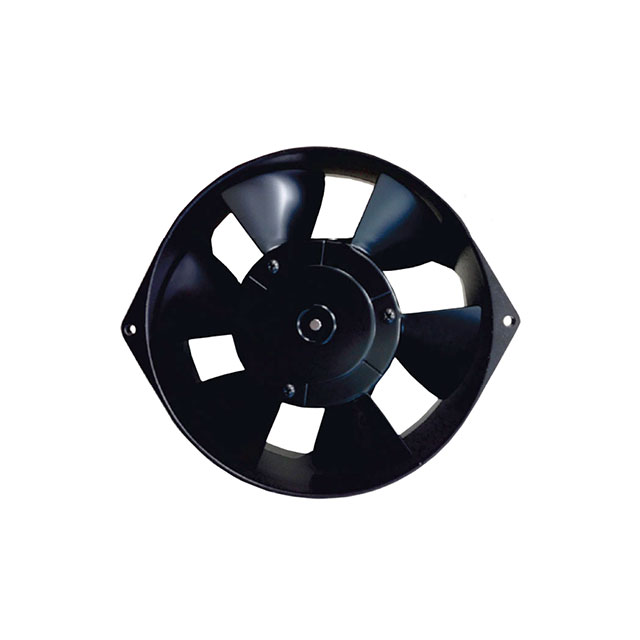

FDA2-17255 Series

Manufacturer: Qualtek

Catalog

FAN AXIAL 172X55MM 115VAC TERM

Part	Material - Blade	Current Rating (Amps)	Material - Frame	Lifetime @ Temp.	Width	Power (Watts)	Bearing Type	Fan Type	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Static Pressure	Static Pressure	Noise	Termination	Voltage - Rated	Air Flow	Air Flow	RPM	Ingress Protection	Termination

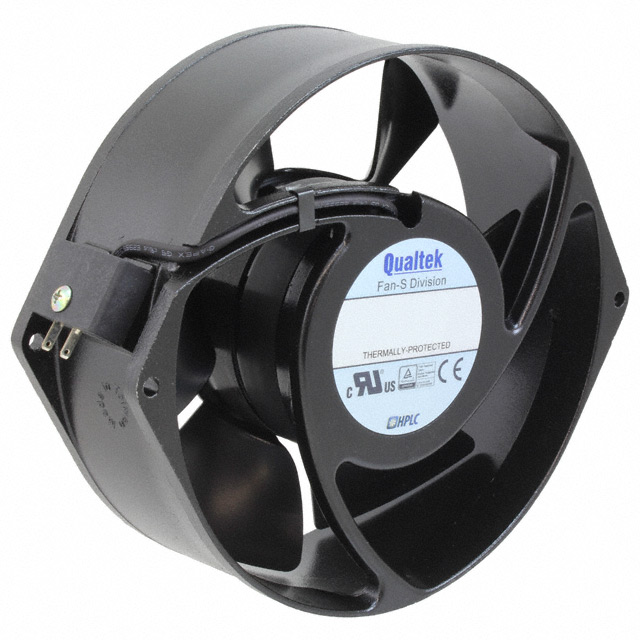

Qualtek FDA2-17255NBHT4F	Steel	0.21 A	Aluminum	50000 Hrs	55 mm	25 W	Ball	Tubeaxial	Rectangular/Rounded	151 mm	172 mm	1.8 lbs	816.5 g	-20 ░C	70 °C	CE cURus TUV	132.3 Pa	0.531 in H2O	61 dB(A)	2	115 VAC	6.72 mł/min	240 CFM	3100 RPM

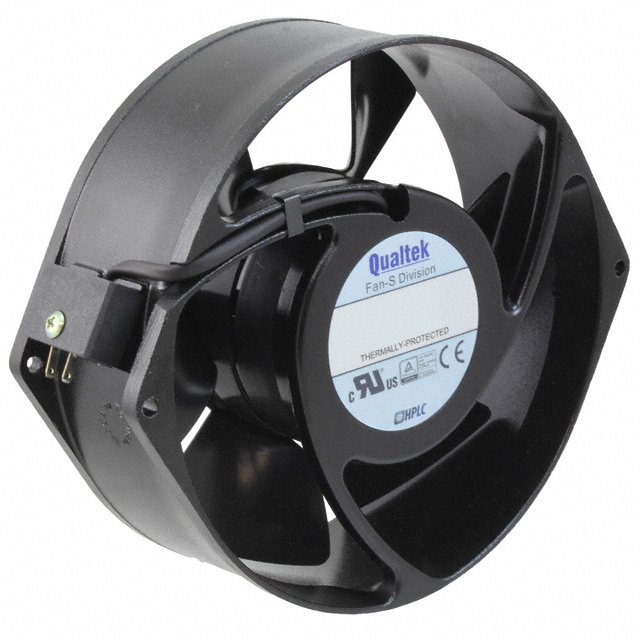

Qualtek FDA2-17255QBHT4F	Steel	120 mA	Aluminum	50000 Hrs	55 mm	27 W	Ball	Tubeaxial	Rectangular/Rounded	151 mm	172 mm	1.8 lbs	816.5 g	-20 ░C	70 °C	CE cURus TUV	132.3 Pa	0.531 in H2O	61 dB(A)	2	230 VAC	6.72 mł/min	240 CFM	3100 RPM
Qualtek FDA2-17255QBHW3F	Plastic	120 mA	Aluminum	50000 Hrs	55 mm	27 W	Ball	Tubeaxial	Rectangular/Rounded	151 mm	172 mm	1.8 lbs	816.5 g	-20 ░C	70 °C	CE cURus TUV	132.3 Pa	0.531 in H2O	61 dB(A)		230 VAC	6.72 mł/min	240 CFM	3100 RPM	IP54 - Dust Protected Water Resistant	2 Wire Leads

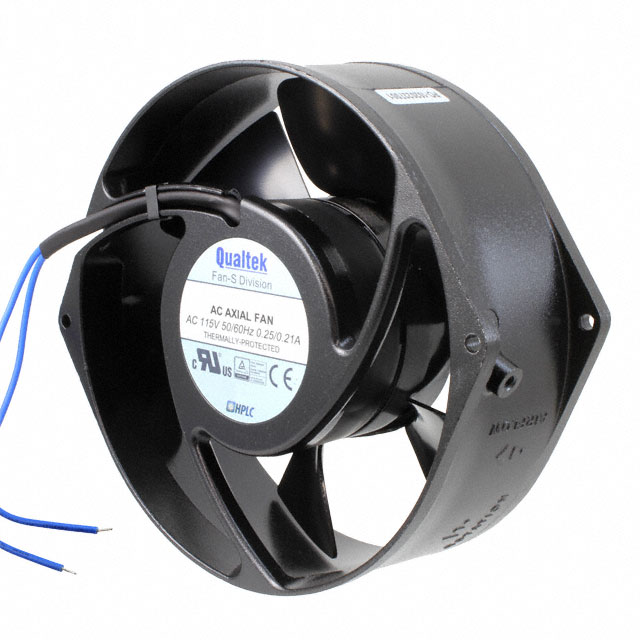

Qualtek FDA2-17255NBHW4F	Steel	0.21 A	Aluminum	50000 Hrs	55 mm	25 W	Ball	Tubeaxial	Rectangular/Rounded	151 mm	172 mm	1.8 lbs	816.5 g	-20 ░C	70 °C	CE cURus TUV	132.3 Pa	0.531 in H2O	61 dB(A)		115 VAC	6.72 mł/min	240 CFM	3100 RPM		2 Wire Leads

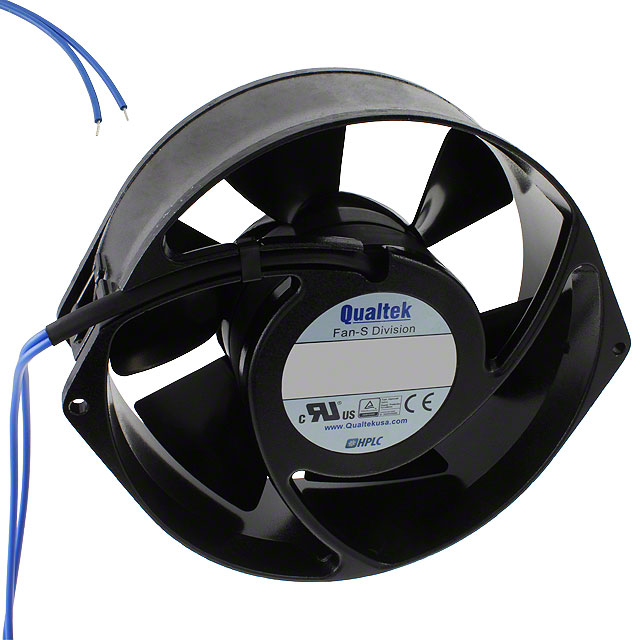

Qualtek FDA2-17255QBHW4F	Steel	120 mA	Aluminum	50000 Hrs	55 mm	27 W	Ball	Tubeaxial	Rectangular/Rounded	151 mm	172 mm	1.8 lbs	816.5 g	-20 ░C	70 °C	CE cURus TUV	132.3 Pa	0.531 in H2O	61 dB(A)		230 VAC	6.72 mł/min	240 CFM	3100 RPM		2 Wire Leads
