205738 Series

Catalog

CONN D-SUB RCPT 25POS VERT SLDR

Part	Connector Type	Voltage Rating	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Color	Mounting Type	Shell Material, Finish	Current Rating (Amps)	Contact Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Material Flammability Rating	Contact Type	Contact Material	Termination	Flange Feature	Connector Style

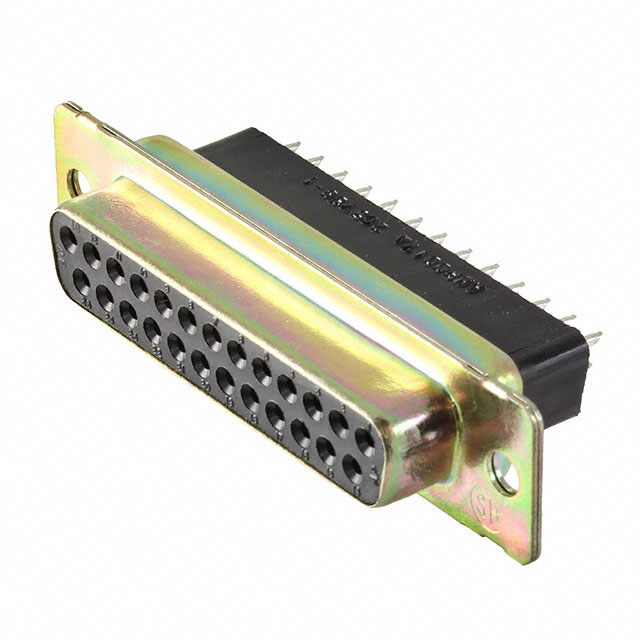

TE Connectivity Raychem Cable Protection 205738-1	Receptacle Female Sockets	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	2	Black	Through Hole	Steel Yellow Chromate Plated Zinc	6 A	Gold	B DB	3	UL94 V-0	Signal	Phosphor Bronze	Solder	Housing/Shell (Unthreaded)	D-Sub
TE Connectivity Raychem Cable Protection 205738-3	Receptacle Female Sockets	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	2	Black	Through Hole	Steel Yellow Chromate Plated Zinc	6 A	Gold	B DB	3	UL94 V-0	Signal	Phosphor Bronze	Solder	Housing/Shell (Unthreaded)	D-Sub
TE Connectivity Raychem Cable Protection 205738-7	Receptacle Female Sockets	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	2	Black	Through Hole	Steel Yellow Chromate Plated Zinc	6 A	Gold	B DB	3	UL94 V-0	Signal	Phosphor Bronze	Solder	Housing/Shell (Unthreaded)	D-Sub
