PJMF900 Series

Catalog

600V SUPER JUNCTION MOSFET

Part	Vgs (Max)	Vgs(th) (Max) @ Id	Technology	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Rds On (Max) @ Id, Vgs	Power Dissipation (Max) [Max]	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Supplier Device Package	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Gate Charge (Qg) (Max) @ Vgs	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]

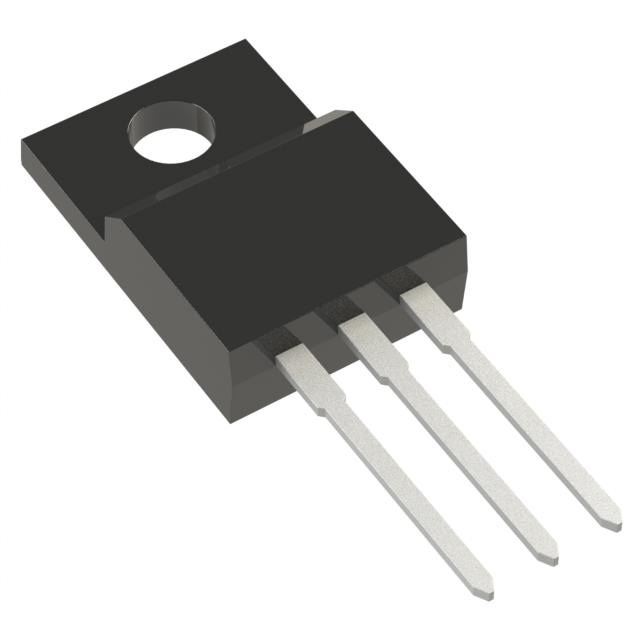

Panjit International Inc. PJMF900N60EC_T0_00001	30 V	4 V	MOSFET (Metal Oxide)	310 pF	Through Hole	900 mOhm	22.5 W	5 A	600 V	ITO-220AB-F	N-Channel	10 V	8.8 nC	TO-220-3 Full Pack Isolated Tab	150 °C	-55 °C
Panjit International Inc. PJMF900N65E1_T0_00001	30 V	4 V	MOSFET (Metal Oxide)		Through Hole	900 mOhm		4.7 A	650 V	ITO-220AB-F	N-Channel	10 V		TO-220-3 Full Pack Isolated Tab	150 °C	-55 °C	382 pF	25.5 W	13 nC
Panjit International Inc. PJMF900N60E1_T0_00001	30 V	4 V	MOSFET (Metal Oxide)	344 pF	Through Hole	900 mOhm		4.4 A	600 V	ITO-220AB-F	N-Channel	10 V	11.5 nC	TO-220-3 Full Pack Isolated Tab	150 °C	-55 °C		23.6 W
