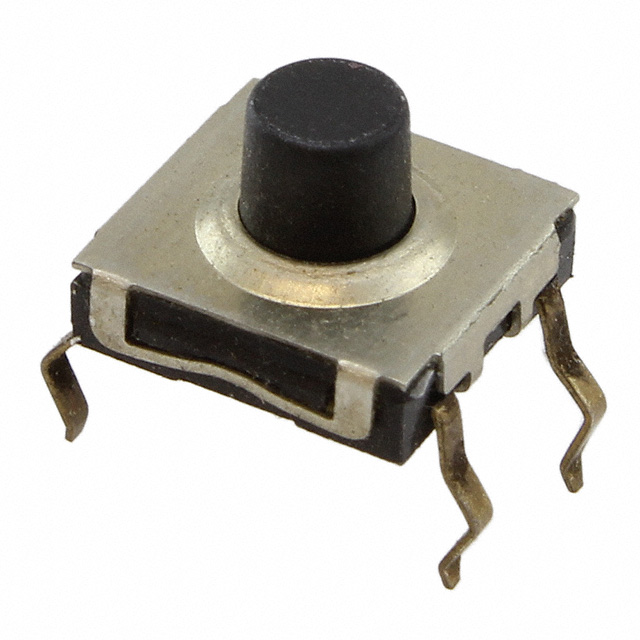

1571295 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 24V
| Part | Features | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Circuit | Switch Function | Mechanical Life | Outline [x] | Outline [y] | Illumination | Actuator Material | Actuator Orientation | Contact Rating @ Voltage | Actuator Height off PCB, Vertical | Termination Style | Mounting Type | Ingress Protection | Switch Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Sealed - Fully | -35 °C | 85 °C | Standard | SPST-NO | Off-Mom | 1000000 Cycles | 7.6 mm | 7.3 mm | Non-Illuminated | Thermoplastic | Top Actuated | 0.05 A 24 VDC | 5 mm | PC Pin | Through Hole | IP67 - Dust Tight Waterproof | 0.35 mm |
