09400480 Series
Manufacturer: HARTING
Beta
⌘K
HAN 48 HPR BASE PANEL ROHS COMPLIANT: NA
| Part | Lock Location | Housing Material | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Style | Operating Temperature [Max] | Operating Temperature [Min] | Size | Housing Color | Connector Type | Housing Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

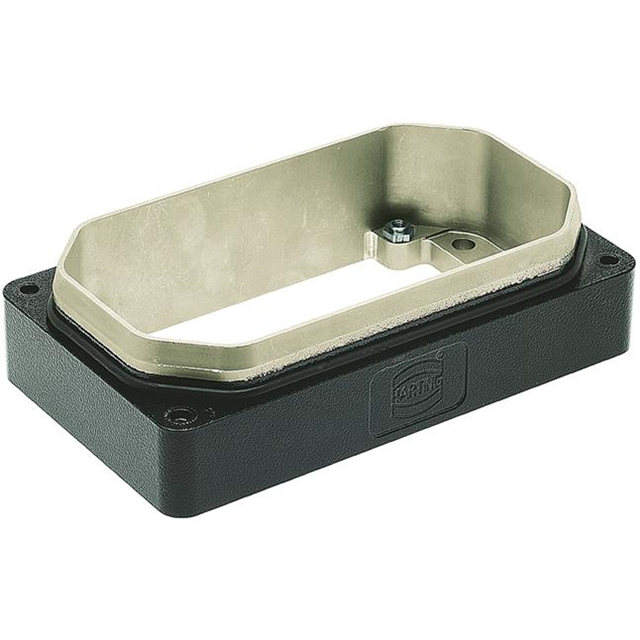

 HARTING | Screw Locks on Hood | Aluminum Die Cast | 2.047 " | 192 mm | 4.409 in | 112 mm | 52 mm | 7.559 " | Bottom Entry | 125 °C | -40 C | 48 B | Black | Base - Panel Mount | Powder Coated |

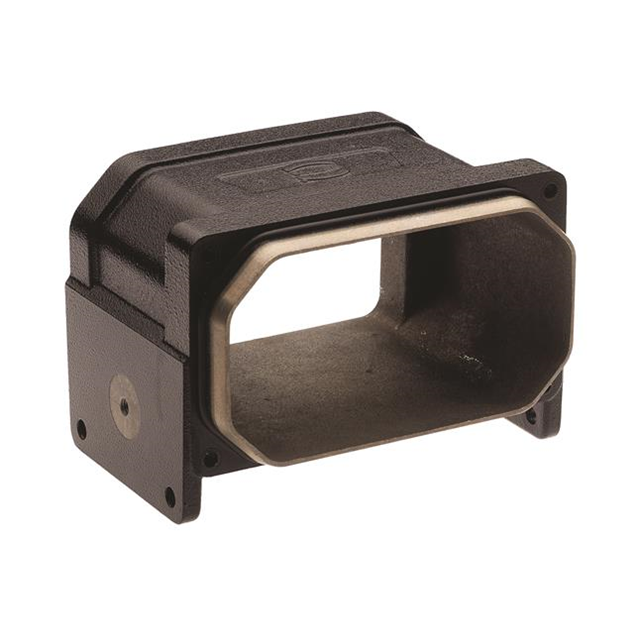

 HARTING | Screw Locks on Hood | Aluminum Die Cast | 5.409 " | 198 mm | 5.354 " | 136 mm | 137.4 mm | 7.795 " | Side Entry | 125 °C | -40 C | 48 B | Black | Base - Panel Mount 90° | Powder Coated |

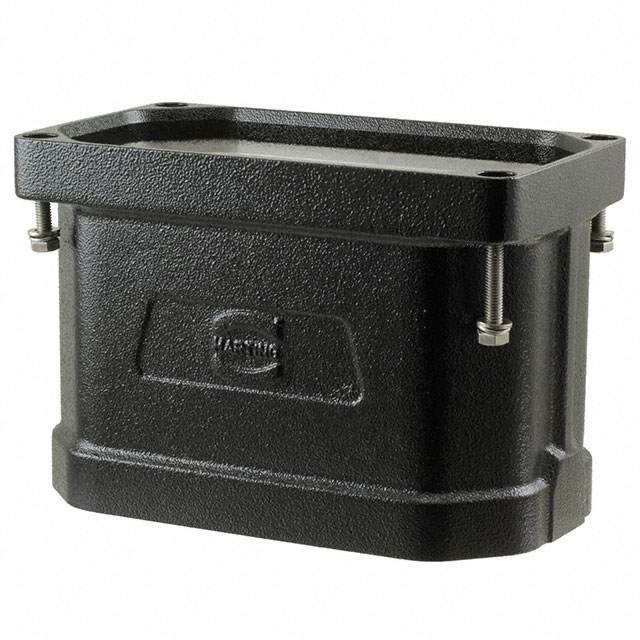

 HARTING | Screw Locks on Hood | Aluminum Die Cast | 5.197 in | 192 mm | 4.409 in | 112 mm | 132 mm | 7.559 " | Bottom Entry | 125 °C | -40 C | 48 B | Black | Base - Box Mount | Powder Coated |
