JF15RP3C Series

Catalog

ILLUMINATED ULTRA-THIN PROCESS SEALED TACTILE

Part	Switch Travel	Mechanical Life	Actuator Material	Actuator Height off PCB, Vertical [z]	Illumination Type, Color	Circuit	Contact Rating @ Voltage	Actuator Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Voltage (Nominal)	Features	Switch Function	Operating Force	Actuator Orientation	Illumination	Termination Style	Outline [x]	Outline [y]

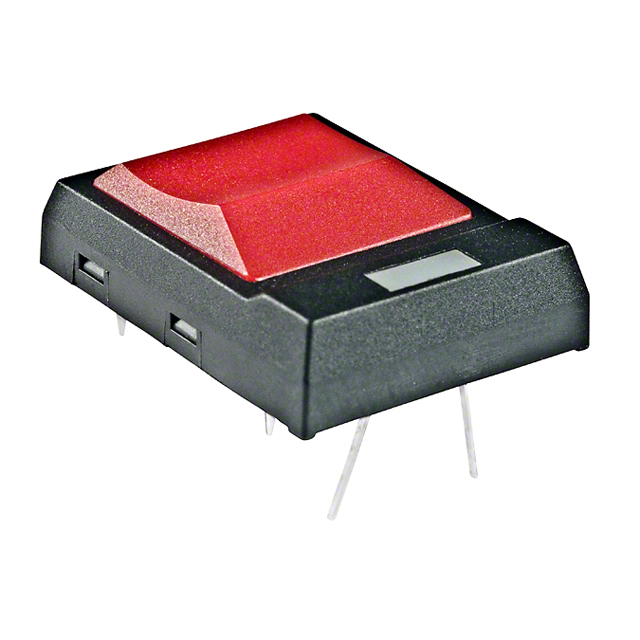

NKK Switches JF15RP3CF	0.8 mm	500000 Cycles	Polyamide (PA) Nylon	6.78 mm	Green LED	SPST-NO	0.05 A 24 VDC	Square Button	Through Hole	-25 °C	70 °C	2 VDC	Process Sealed	Off-Mom	0.2 kgf	Top Actuated	Illuminated	PC Pin	22.8 mm	17.7 mm

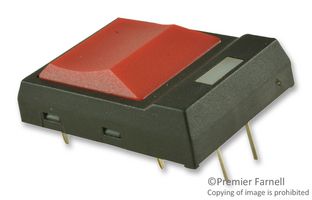

NKK Switches JF15RP3CC	0.8 mm	500000 Cycles	Polyamide (PA) Nylon	6.78 mm	LED Red	SPST-NO	0.05 A 24 VDC	Square Button	Through Hole	-25 °C	70 °C	2 VDC	Process Sealed	Off-Mom	0.2 kgf	Top Actuated	Illuminated	PC Pin	22.8 mm	17.7 mm
NKK Switches JF15RP3CE	0.8 mm	500000 Cycles	Polyamide (PA) Nylon	6.78 mm	LED Yellow	SPST-NO	0.05 A 24 VDC	Square Button	Through Hole	-25 °C	70 °C	1.9 VDC	Process Sealed	Off-Mom	0.2 kgf	Top Actuated	Illuminated	PC Pin	22.8 mm	17.7 mm
