MKJ3C Series

Catalog

TRINITY MKJ

Part	Color	Shell Finish	Number of Positions	Shell Material	Current Rating (Amps)	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Contact Finish - Mating	Voltage Rating	Primary Material	Mounting Type	Connector Type	Mounting Feature	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Shielding
ITT Cannon, LLC MKJ3C7W6-7BY
ITT Cannon, LLC MKJ3C7W7-10BZ
ITT Cannon, LLC MKJ3C7W9-19BY
ITT Cannon, LLC MKJ3C7W10-26BX
ITT Cannon, LLC MKJ3C7F12-37DY

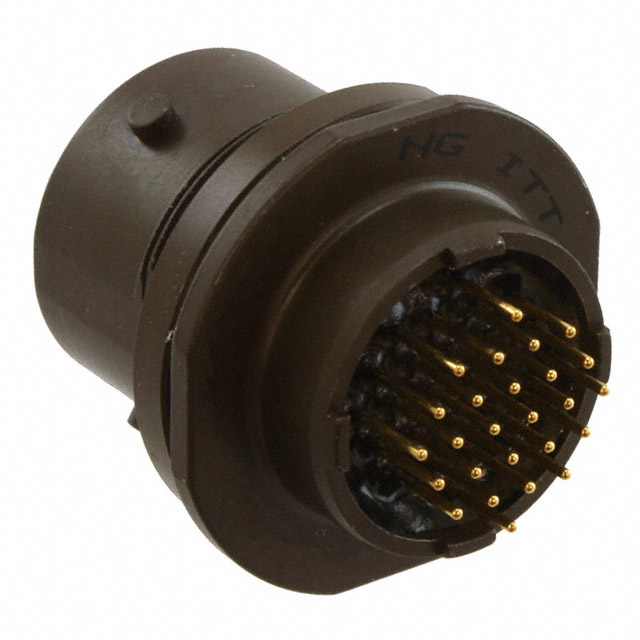

ITT Cannon, LLC MKJ3C7W10-26BN	Olive Drab	Olive Drab Cadmium	26	Aluminum Alloy	5 A	26	10	-55 C	150 °C	N (Normal)	Gold	500 VAC	Metal	Panel Mount Through Hole	Receptacle Male Pins	Bulkhead	Solder	50 µin	1.27 µm	Bayonet Lock	Shielded
ITT Cannon, LLC MKJ3C7F8-13BX
ITT Cannon, LLC MKJ3C7F10-26BZ
ITT Cannon, LLC MKJ3C7F8-13BY
ITT Cannon, LLC MKJ3C7F8-13BZ
