7305-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONNECTR PIN RECEPT 051 .105 DIA

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Length - Overall	Length - Overall [x]	Termination	Contact Finish	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Square Pin Size	Accepts Square Pin Size	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 7305-0-15-01-47-27-10-0	-55 C	125 °C	2.67 mm	0.105 in	Beryllium Copper	30 Áin	0.76 Ám	2.67 mm	0.105 in	Solder	Gold	0.64 mm	0.037 in	0.94 mm	0.025 in	0.06 in	1.52 mm	0.051 in	1.3 mm	0.025 in	0.64 mm	No Tail	1.96 mm	0.077 in

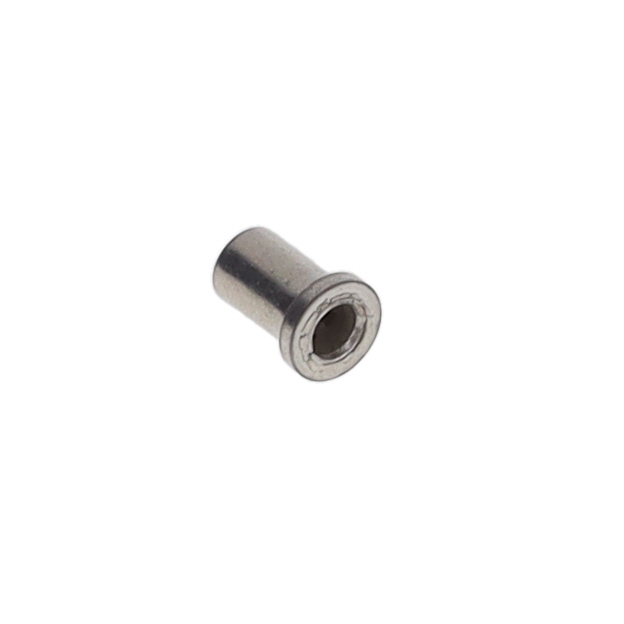

Mill-Max Manufacturing Corp. 7305-0-15-01-47-01-10-0	-55 C	125 °C	2.67 mm	0.105 in	Beryllium Copper	30 Áin	0.76 Ám	2.67 mm	0.105 in	Solder		0.64 mm	0.037 in	0.94 mm	0.025 in	0.06 in	1.52 mm	0.051 in	1.3 mm	0.025 in	0.64 mm	No Tail	1.96 mm	0.077 in

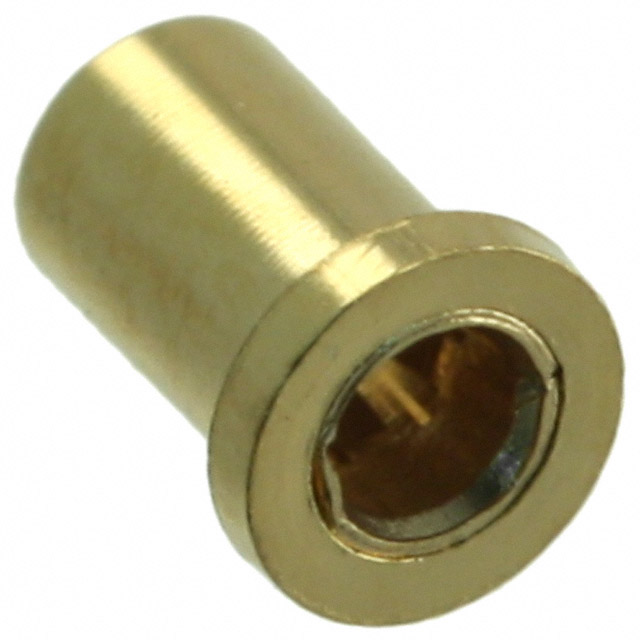

Mill-Max Manufacturing Corp. 7305-0-15-15-47-27-10-0	-55 C	125 °C	2.67 mm	0.105 in	Beryllium Copper	30 Áin	0.76 Ám	2.67 mm	0.105 in	Solder	Gold	0.64 mm	0.037 in	0.94 mm	0.025 in	0.06 in	1.52 mm	0.051 in	1.3 mm	0.025 in	0.64 mm	No Tail	1.96 mm	0.077 in

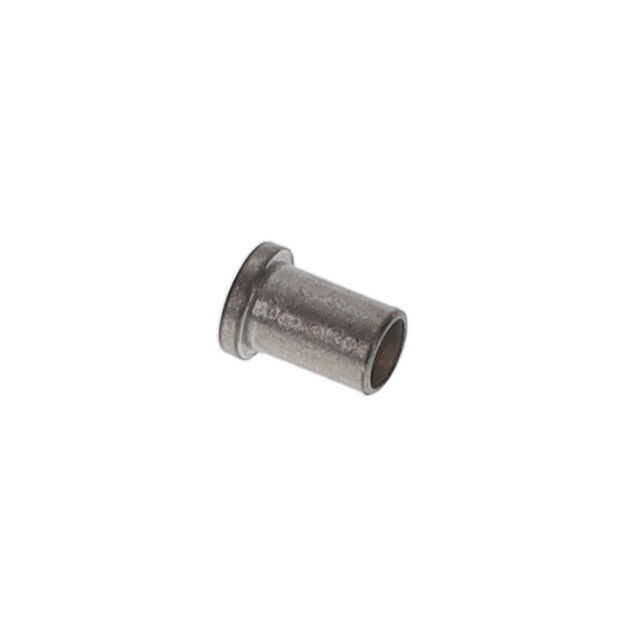

Mill-Max Manufacturing Corp. 7305-0-15-01-47-14-10-0	-55 C	125 °C	2.67 mm	0.105 in	Beryllium Copper	10 Áin	0.25 Ám	2.67 mm	0.105 in	Solder	Gold	0.64 mm	0.037 in	0.94 mm	0.025 in	0.06 in	1.52 mm	0.051 in	1.3 mm	0.025 in	0.64 mm	No Tail	1.96 mm	0.077 in
Mill-Max Manufacturing Corp. 7305-0-15-80-47-14-10-0	-55 C	125 °C	2.67 mm	0.105 in	Beryllium Copper	10 Áin	0.25 Ám	2.67 mm	0.105 in	Solder	Gold	0.64 mm	0.037 in	0.94 mm	0.025 in	0.06 in	1.52 mm	0.051 in	1.3 mm	0.025 in	0.64 mm	No Tail	1.96 mm	0.077 in

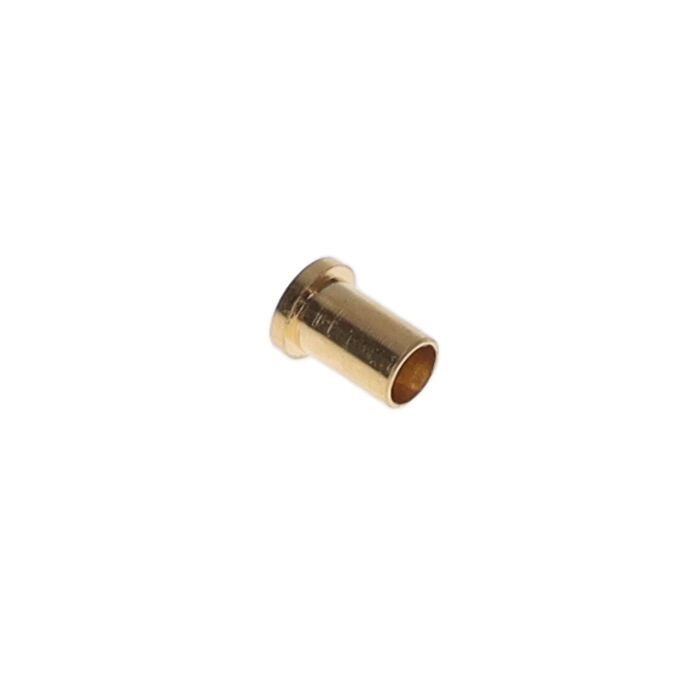

Mill-Max Manufacturing Corp. 7305-0-15-15-47-14-10-0	-55 C	125 °C	2.67 mm	0.105 in	Beryllium Copper	10 Áin	0.25 Ám	2.67 mm	0.105 in	Solder	Gold	0.64 mm	0.037 in	0.94 mm	0.025 in	0.06 in	1.52 mm	0.051 in	1.3 mm	0.025 in	0.64 mm	No Tail	1.96 mm	0.077 in
