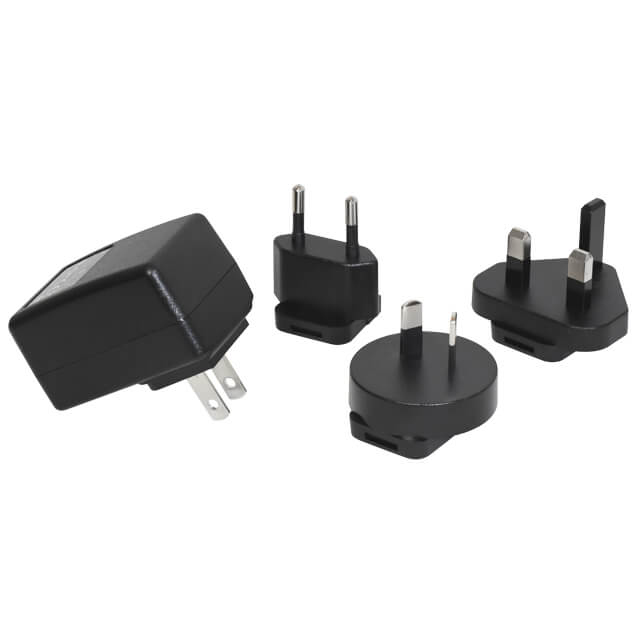

SMM6-6 Series

Manufacturer: CUI Inc.

Catalog

AC/DC WALL MOUNT ADAPTER 6V 6W

Part	Efficiency	No Load Power Consumption	Approval Agency	Form	Input Type	Polarization	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Input Connector	Power (Watts)	Standard Number	Current - Output (Max) [Max]	Region Utilized	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Applications	Voltage - Output	Cord Length	Cord Length	Output Connector [diameter]	Output Connector	Output Connector [x]	Output Connector [z]	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]
CUI Inc. SMM6-6-4-P7	Level VI	100 mW	CB Scheme CSA EN FCC IEC UL	Wall Mount	Multi-Blade (Included)	Positive Center	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade (Included)	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1 A	International	264 VAC	90 VAC	40 °C	Medical	6 V	1.5 m	59 in	1.35 mm 3.5 mm	Barrel Plug	9.5 mm
CUI Inc. SMM6-6-4-MUB	Level VI	100 mW	CB Scheme CSA EN FCC IEC UL	Wall Mount	Multi-Blade (Included)		1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade (Included)	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1 A	International	264 VAC	90 VAC	40 °C	Medical	6 V	1.5 m	59 in		USB Micro
CUI Inc. SMM6-6-4-P6R	Level VI	100 mW	CB Scheme CSA EN FCC IEC UL	Wall Mount	Multi-Blade (Included)	Positive Center	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade (Included)	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1 A	International	264 VAC	90 VAC	40 °C	Medical	6 V	1.5 m	59 in	2.5 mm 5.5 mm	Barrel Plug R/A		9.5 mm
CUI Inc. SMM6-6-4-P6	Level VI	100 mW	CB Scheme CSA EN FCC IEC UL	Wall Mount	Multi-Blade (Included)	Positive Center	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade (Included)	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1 A	International	264 VAC	90 VAC	40 °C	Medical	6 V	1.5 m	59 in	2.5 mm 5.5 mm	Barrel Plug	9.5 mm
CUI Inc. SMM6-6-V-P6R	Level VI	100 mW	CB Scheme CSA EN FCC IEC UL	Wall Mount	Multi-Blade (Included)	Positive Center	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade (Included)	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1 A	International	264 VAC	90 VAC	40 °C	Medical	6 V	1.5 m	59 in	2.5 mm 5.5 mm	Barrel Plug R/A		9.5 mm

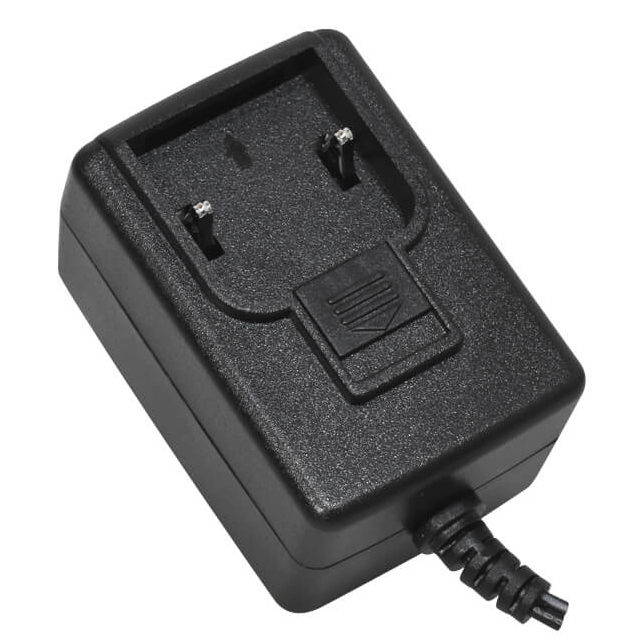

CUI Inc. SMM6-6-K-P5R	Level VI	100 mW	CB Scheme CSA EN FCC IEC UL	Wall Mount	Multi-Blade (Sold Separately)	Positive Center	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1 A	International	264 VAC	90 VAC	40 °C	Medical	6 V	1.5 m	59 in		Barrel Plug R/A			9.5 mm	5.5 mm	2.1 mm
CUI Inc. SMM6-6-K-MUB	Level VI	100 mW	CB Scheme CSA EN FCC IEC UL	Wall Mount	Multi-Blade (Sold Separately)		1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1 A	International	264 VAC	90 VAC	40 °C	Medical	6 V	1.5 m	59 in		USB Micro
CUI Inc. SMM6-6-4-P5	Level VI	100 mW	CB Scheme CSA EN FCC IEC UL	Wall Mount	Multi-Blade (Included)	Positive Center	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade (Included)	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1 A	International	264 VAC	90 VAC	40 °C	Medical	6 V	1.5 m	59 in	2.1 mm 5.5 mm	Barrel Plug	9.5 mm
CUI Inc. SMM6-6-K-P5	Level VI	100 mW	CB Scheme CSA EN FCC IEC UL	Wall Mount	Multi-Blade (Sold Separately)	Positive Center	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1 A	International	264 VAC	90 VAC	40 °C	Medical	6 V	1.5 m	59 in	2.1 mm 5.5 mm	Barrel Plug	9.5 mm
CUI Inc. SMM6-6-V-P5	Level VI	100 mW	CB Scheme CSA EN FCC IEC UL	Wall Mount	Multi-Blade (Included)	Positive Center	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	Multi-Blade (Included)	6 W	C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	1 A	International	264 VAC	90 VAC	40 °C	Medical	6 V	1.5 m	59 in	2.1 mm 5.5 mm	Barrel Plug	9.5 mm
