5430/9 Series

Catalog

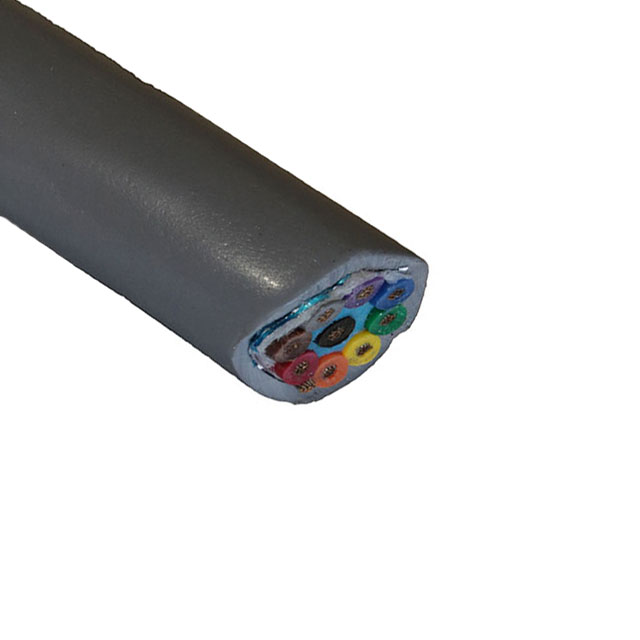

CABLE 9CON 18AWG SLATE SHLD

Part	Shield Coverage	Shield Material	Shield Type	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Features	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Cable Type	Conductor Material	Length	Length	Ratings	Conductor Insulation	Length [x]	Length [x]
ALPHA WIRE 5430/9 SL002	100 %	Aluminum	Foil	18 AWG	0.539 in	13.69 mm	Communication Control	-30 ░C	105 ░C	Slate	16	30 AWG	9	Biological Compatibility Drain Wire Rip Cord	Poly-Vinyl Chloride (PVC)	1.6 mm	0.063 in	600 V	Multi-Conductor	Copper Tinned	152.4 m	500 ft	ISO 10993 UL Style 2501	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 5430/9 SL199	100 %	Aluminum	Foil	18 AWG	0.539 in	13.69 mm	Communication Control	-30 ░C	105 ░C	Slate	16	30 AWG	9	Biological Compatibility Drain Wire Rip Cord	Poly-Vinyl Chloride (PVC)	1.6 mm	0.063 in	600 V	Multi-Conductor	Copper Tinned			ISO 10993 UL Style 2501	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 5430/9 SL005	100 %	Aluminum	Foil	18 AWG	0.539 in	13.69 mm	Communication Control	-30 ░C	105 ░C	Slate	16	30 AWG	9	Biological Compatibility Drain Wire Rip Cord	Poly-Vinyl Chloride (PVC)	1.6 mm	0.063 in	600 V	Multi-Conductor	Copper Tinned			ISO 10993 UL Style 2501	Poly-Vinyl Chloride (PVC)	100 ft	30.5 m
ALPHA WIRE 5430/9 SL001	100 %	Aluminum	Foil	18 AWG	0.539 in	13.69 mm	Communication Control	-30 ░C	105 ░C	Slate	16	30 AWG	9	Biological Compatibility Drain Wire Rip Cord	Poly-Vinyl Chloride (PVC)	1.6 mm	0.063 in	600 V	Multi-Conductor	Copper Tinned	304.8 m	1000 ft	ISO 10993 UL Style 2501	Poly-Vinyl Chloride (PVC)
