6238 Series
Manufacturer: Boyd Laconia, LLC
Beta
⌘K
BOARD LEVEL HEAT SINK
| Part | Attachment Method | Width [x] | Width [x] | Length | Length | Power Dissipation @ Temperature Rise | Fin Height | Fin Height | Package Cooled | Material | Shape [custom] | Shape [custom] | Material Finish | Type | Thermal Resistance @ Natural | Thermal Resistance @ Forced Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

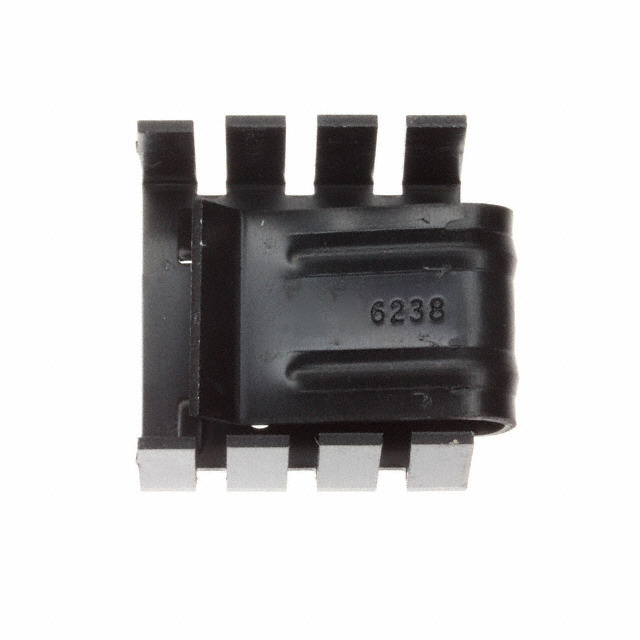

 Boyd Laconia, LLC | Clip | 1.005 " | 25.53 mm | 29.44 mm | 1.159 " | 2 W 40 °C | 15.49 mm | 0.61 " | TO-220 | Aluminum | Rectangular | Fins | Black Anodized | Board Level Vertical | 13.6 °C/W | 6 °C/W |

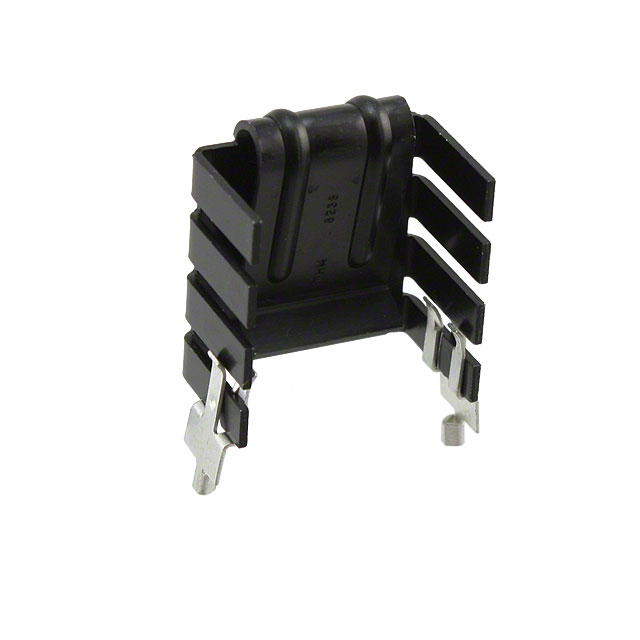

 Boyd Laconia, LLC | Clip and PC Pin | 1.005 " | 25.53 mm | 29.44 mm | 1.159 " | 2 W 40 °C | 15.49 mm | 0.61 " | TO-220 | Aluminum | Rectangular | Fins | Black Anodized | Board Level Vertical | 13.6 °C/W | 6 °C/W |
