2823388 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

9P,2MM,SHRD HDR,SRRT,2.8,0.1AU,T

Part	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height [custom]	Insulation Height [custom]	Number of Rows	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Type	Connector Type	Number of Positions	Contact Shape	Mounting Type	Insulation Material	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Termination	Contact Length - Mating	Contact Length - Mating	Contact Material	Voltage Rating	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Number of Positions Loaded	Features	Style

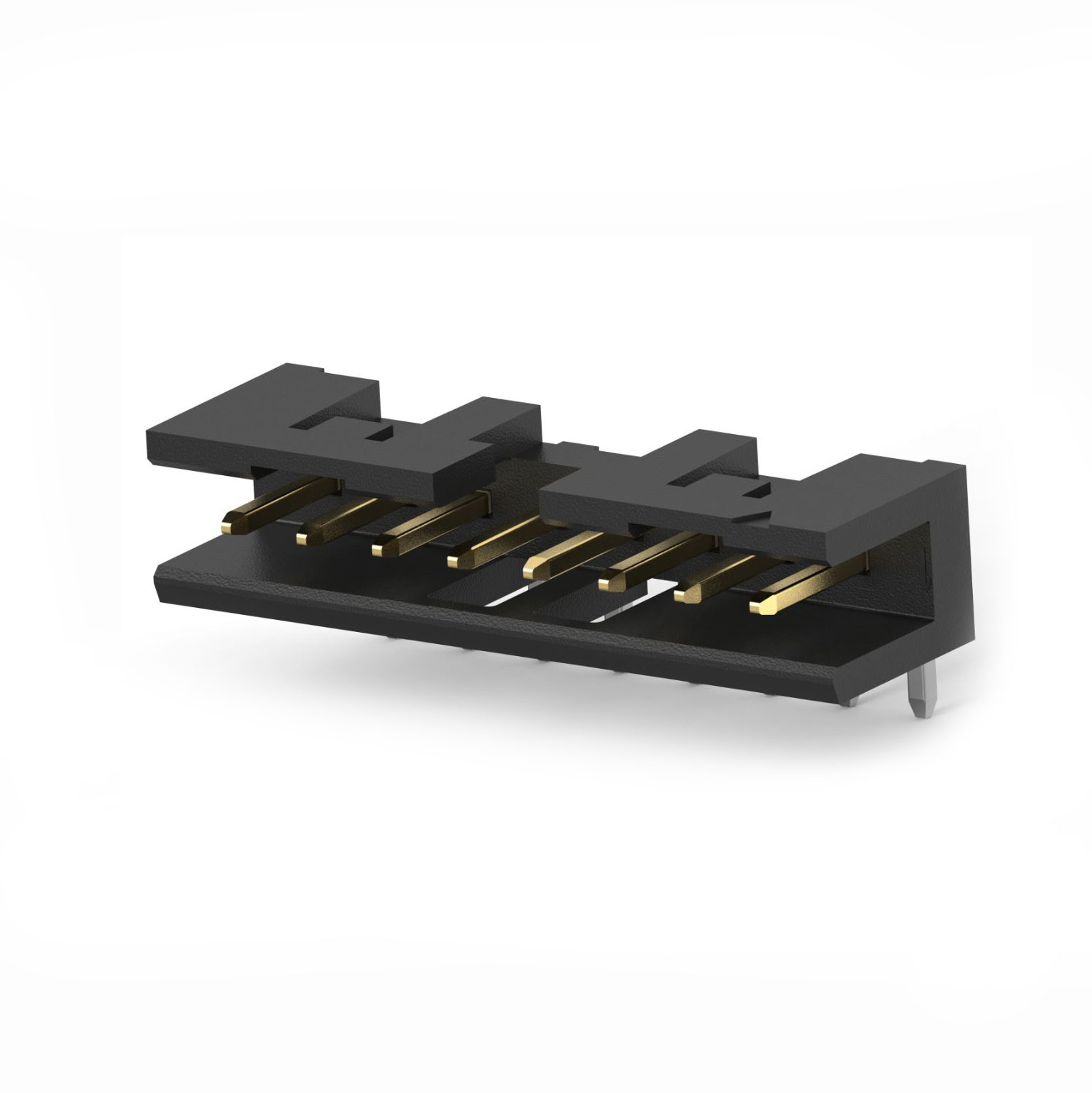

TE Connectivity Raychem Cable Protection 2823388-9	UL94 V-0	125 °C	-40 °C	0.157 in	4 mm	1	2 A	157.5 Áin	4 Ám	Black	Male Pin	Header	9	Square	Through Hole Right Angle	Thermoplastic	Shrouded - 2 Wall	3.94 µin	0.1 µm	Gold	Solder	4 mm	0.157 in	Phosphor Bronze	125 VAC	Tin	0.11 in	2.8 mm	0.079 in	2 mm	Detent Lock	All

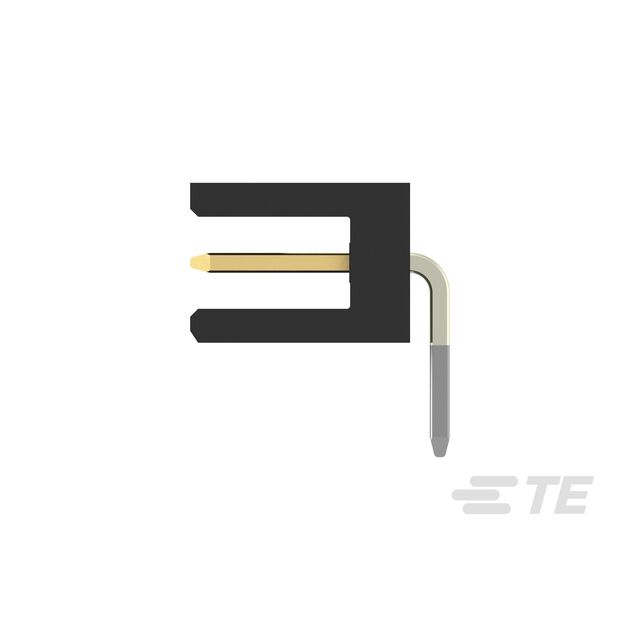

TE Connectivity Raychem Cable Protection 2823388-3	UL94 V-0	125 °C	-40 °C	0.157 in	4 mm	1	2 A	157.5 Áin	4 Ám	Black	Male Pin	Header		Square	Through Hole Right Angle	Thermoplastic	Shrouded - 2 Wall	3.94 µin	0.1 µm	Gold	Solder	4 mm	0.157 in	Phosphor Bronze	125 VAC	Tin	0.11 in	2.8 mm	0.079 in	2 mm	Push-Pull	All	Pick and Place	Board to Cable/Wire
TE Connectivity Raychem Cable Protection 2823388-4	UL94 V-0	125 °C	-40 °C	0.157 in	4 mm	1	2 A	157.5 Áin	4 Ám	Black	Male Pin	Header	4	Square	Through Hole Right Angle	Thermoplastic	Shrouded - 2 Wall	3.94 µin	0.1 µm	Gold	Solder	4 mm	0.157 in	Phosphor Bronze	125 VAC	Tin	0.11 in	2.8 mm	0.079 in	2 mm	Push-Pull	All	Pick and Place	Board to Cable/Wire
TE Connectivity Raychem Cable Protection 2823388-7	UL94 V-0	125 °C	-40 °C	0.157 in	4 mm	1	2 A	157.5 Áin	4 Ám	Black	Male Pin	Header	7	Square	Through Hole Right Angle	Thermoplastic	Shrouded - 2 Wall	3.94 µin	0.1 µm	Gold	Solder	4 mm	0.157 in	Phosphor Bronze	125 VAC	Tin	0.11 in	2.8 mm	0.079 in	2 mm	Detent Lock	All

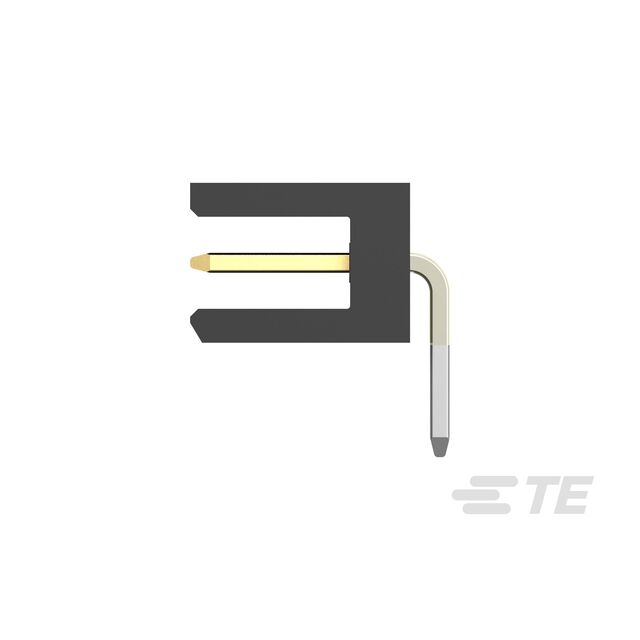

TE Connectivity Raychem Cable Protection 2823388-5	UL94 V-0	125 °C	-40 °C	0.157 in	4 mm	1	2 A	157.5 Áin	4 Ám	Black	Male Pin	Header		Square	Through Hole Right Angle	Thermoplastic	Shrouded - 2 Wall	3.94 µin	0.1 µm	Gold	Solder	4 mm	0.157 in	Phosphor Bronze	125 VAC	Tin	0.11 in	2.8 mm	0.079 in	2 mm	Push-Pull	All	Pick and Place	Board to Cable/Wire
